2.2 Product structure

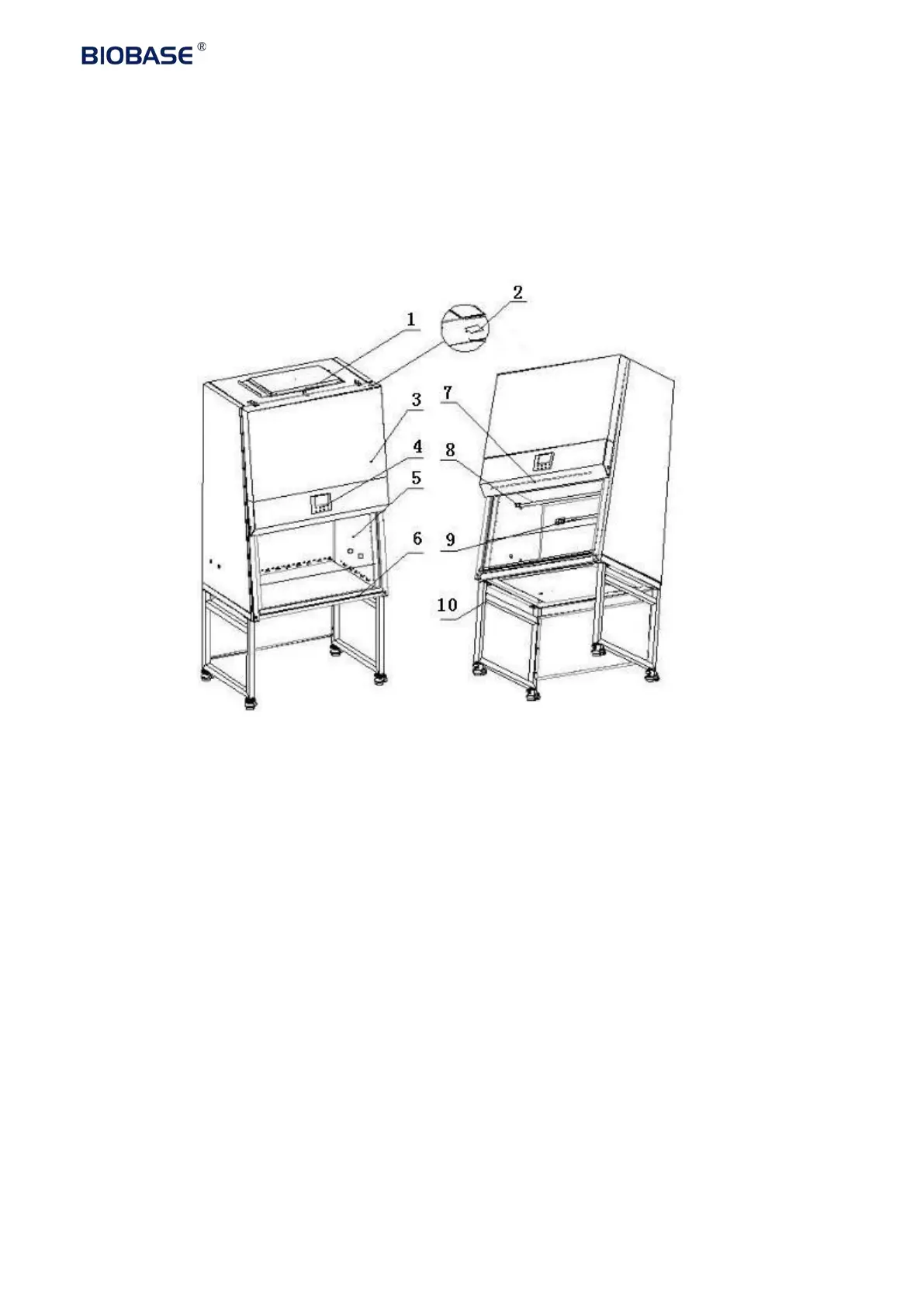

2.2.1 Structural composition of BSC-3FA2(3’)
Picture 9
1. Air Outlet safety guard 2.Power Socket 3. Control panel 4. LCD display 5. Front
window
6. Alarm rest plate 7. Fluorescent lamp . 8. IV bar 9.UV lamp 10. Base stand
2.2.2 Structure introduction
1) Driving System of Front Window
Driving system consists of front window, hauling sash and position switch.
2) Air Filtration System
Air Filtration System is the most important system of BSC. It consists of blower, supply filter and
exhaust filter. The function of Air Filtration System is transferring filtered air to work area, ensure
the down flow velocity, and keep Class 100 cleanness of work area.
3) UV Light
UV lamp is inside work area. So UV lamp can well sterilize all space of work area. Emission of
253.7 nanometers can ensure most efficient decontamination.
