E80/E70 Digital Electrocardiograph User’s Manual
3-7
3) After finish the installation of the stop block and restrictor plate,
you can carry out the installation of chart paper.
Install the folded thermosensitive printing paper:
1) Press downwards with one hand the box cover button on the left of
recorder, and grasp the edge of box cover with the other hand, and
open outward the cover of recorder with a little force, and take out
the remaining folded paper from the paper slot;

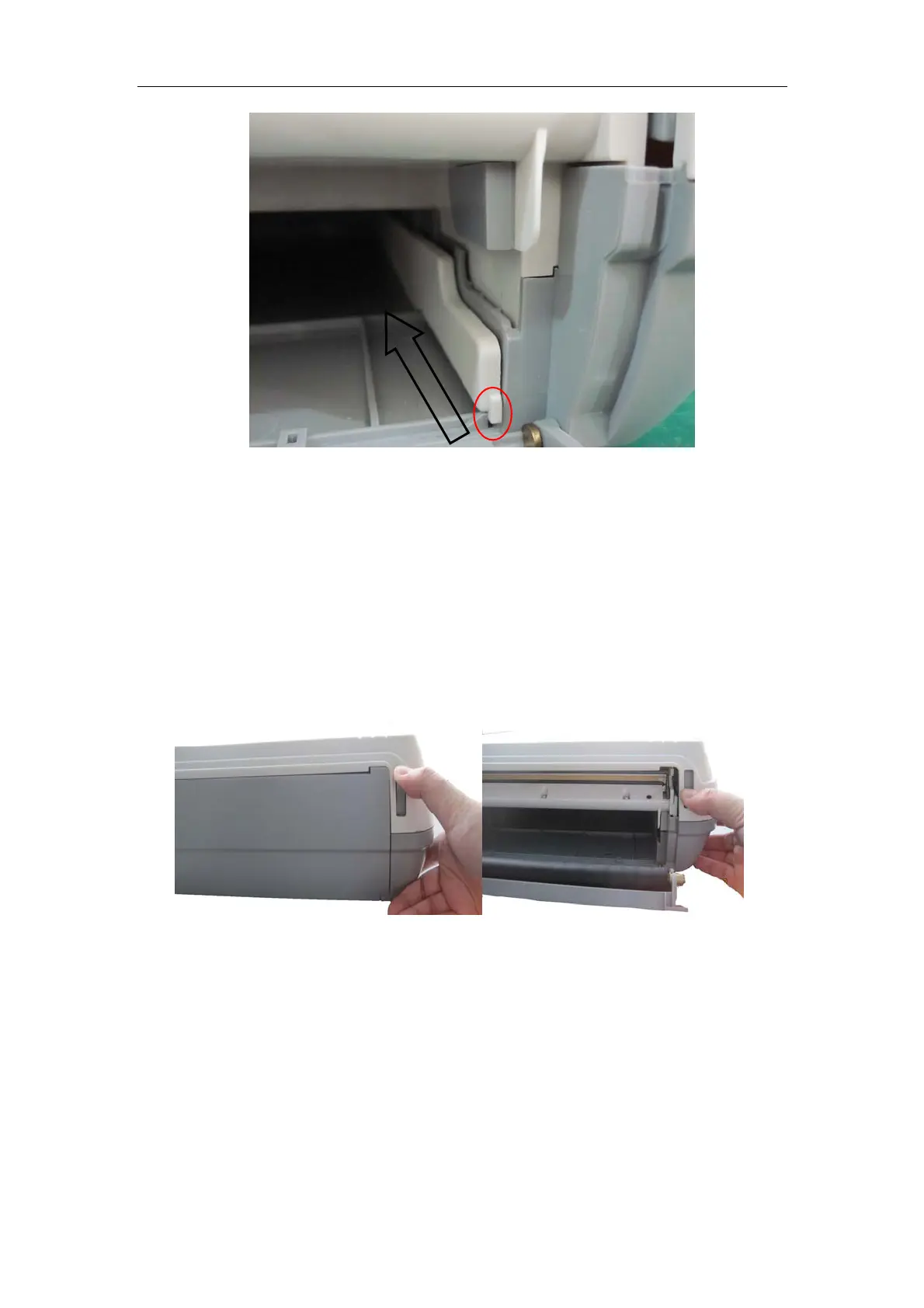

Fig. 3-1: Install folded paper
2) Remove the packaging of new chart paper, and place the chart paper
into paper slot. Caution: The grid surface shall be upwards at the
time of inserting the prepared Z-shaped printing paper, and the first
fold shall be toward the paper cartridge;
