E80/E70 Digital Electrocardiograph User’s Manual
4-10

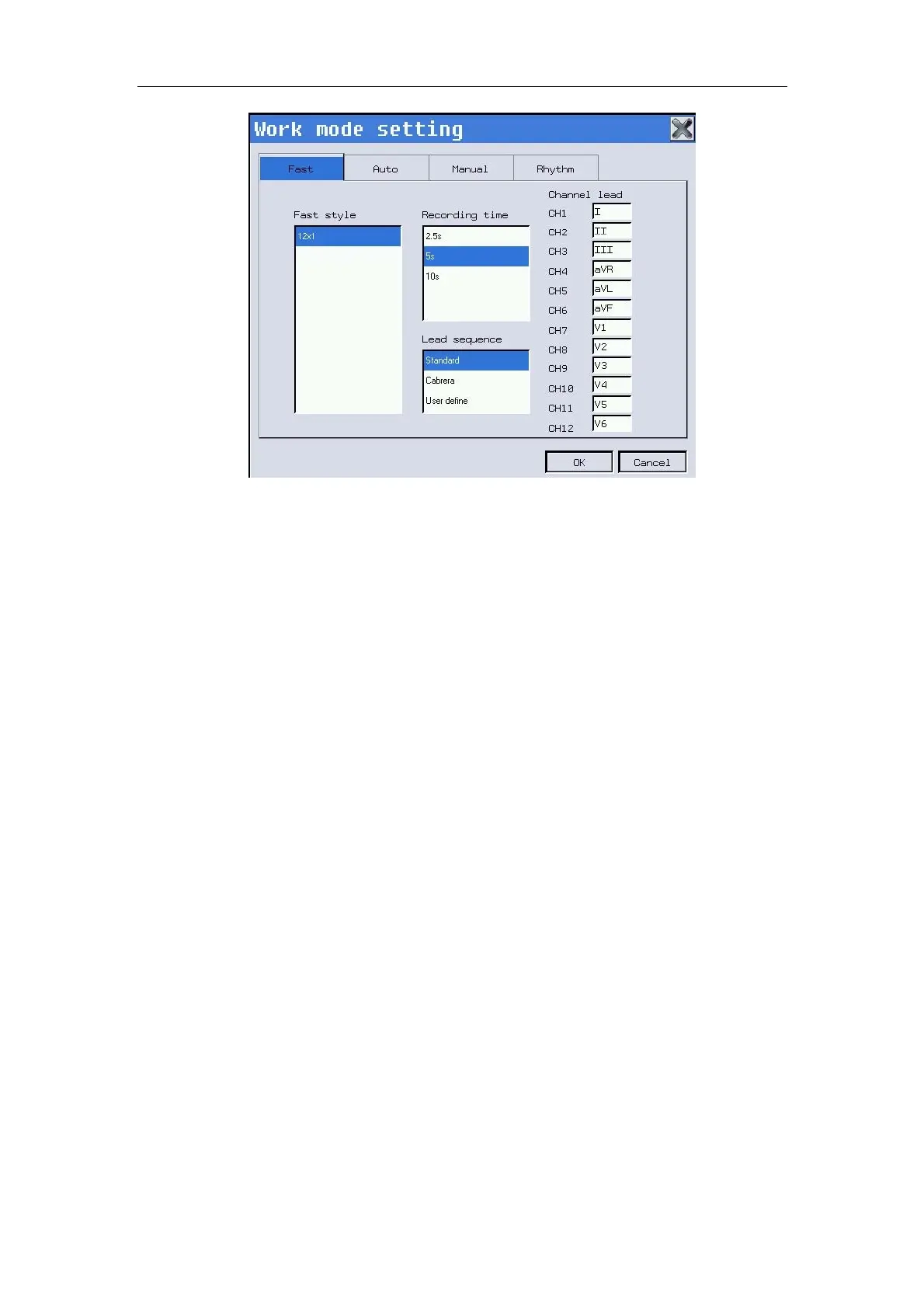

Fig. 4-10: Work mode setting--Fast
4.5.2 Auto Mode
During ECG recording in Auto mode, the lead group will switch over
automatically in order, i.e. after the recording of ECG signals of leads in a
group is completed within the specified period, the machine will switch over
automatically to the next lead group and begin to record the ECG signals of
the next lead group. Before recording ECG signals, 1mV calibration is
conducted automatically, and mark is added on chart paper. For the
operations in details, please refer to the following steps:
5. Before recording, enter the patients’ info.
6. Press the “Mode” key on keyboard to switch the working mode into
“Auto mode”.
7. Select 【Working mode/ F1】 key to conduct setup properly, including
Auto style, Recording time, Lead sequence and RHY lead; and select
【OK】, as shown in Fig. 4-11 below.
8. Press “Record/Stop” key on keyboard to start recording. The machine
will stop automatically after a complete ECG diagram is recorded.
9. When preview setup is open and recording is made in Auto mode, the users
may preview the ECG waveform to be recorded.
10. When preview setup is closed and recording is made in Auto mode, the
users can not preview the ECG waveform to be recorded.
