E80/E70 Digital Electrocardiograph User’s Manual
4-12

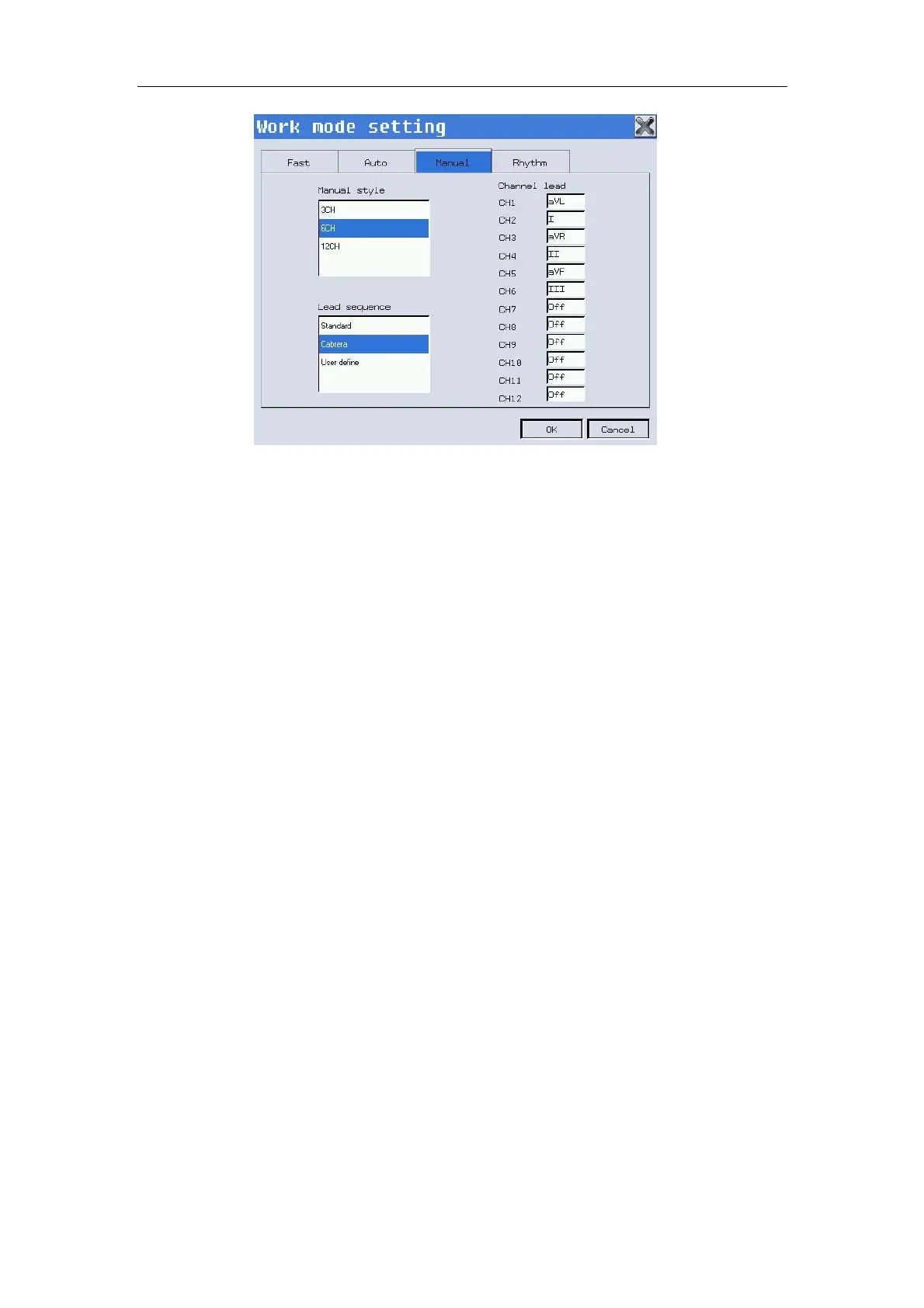

Fig. 4-12: Work mode setting--Manual
4.5.4 Rhythm Mode
In Rhythm mode, users may select lead according to actual needs, and
record the rhythm waveform of single lead within 60s or rhythm waveforms of
3 leads within 20s each.
Operating refers to the following steps:
1. Before recording, enter the patients’ info.
2. Press the “Mode ”key on keyboard to switch the working mode into
“Rhythm mode”.
3. Select【Working mode/ F1】key to conduct setup properly, including
Rhythm style and Channel lead; and select【OK】, as shown in Fig. 4-13
below.
4. Press“Record/Stop”key on keyboard, the prompt info area will display
“Sampling”, and timing the sample time. It will start to draw when the
time reaches 60s or 20s.
5. The machine will stop automatically after a complete rhythm diagram is
recorded.
6. To stop recording in the course of recording, press“Record/Stop”key on
keyboard.
