Patient Monitor User’s Manual
5-6
2. Electrode Placement
3-Lead

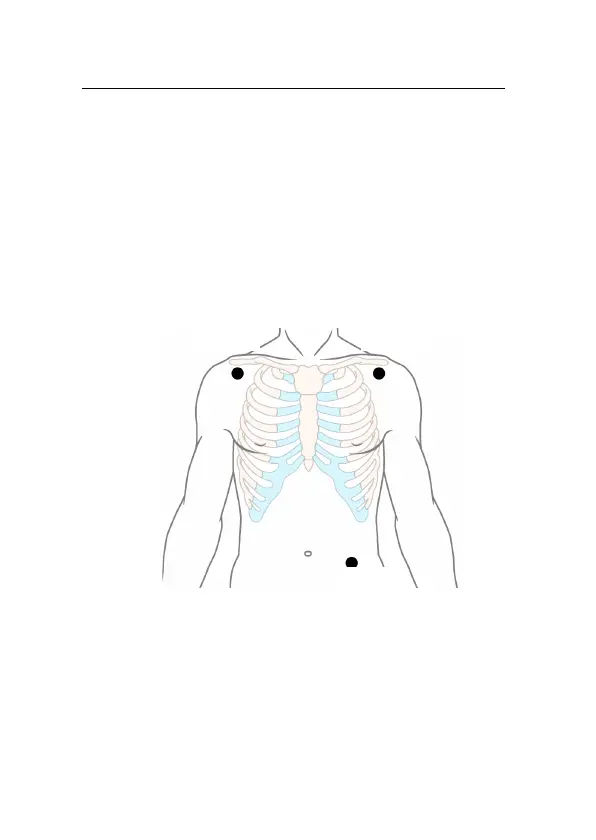

Take the AHA standard as an example, when conducting
3-lead ECG monitoring, use 3-lead ECG cable. The three
limb-leads of RA, LA and LL as shown in below figure, will be
placed on the relevant locations. This connection can establish
the lead of I, II, III.
5-Lead
Take the AHA standard for example, when conducting
7-lead ECG monitoring, use 5-lead ECG cable. The four
limb-leads of RA, LA, RL and LL as shown in below figure, will
RALA
LL
