BIXOLON SRP-350plusIII Driver Manual

SRP-350plusIII
Rev. 1.02
- 25 -
5-1-3 Paper Size
Paper size of 72 x 297 mm is selected by default, and the following sizes can be selected.
72  40 mm
72  160 mm
72  3276 mm
72  80 mm
72  200 mm
72  120 mm
72  297 mm

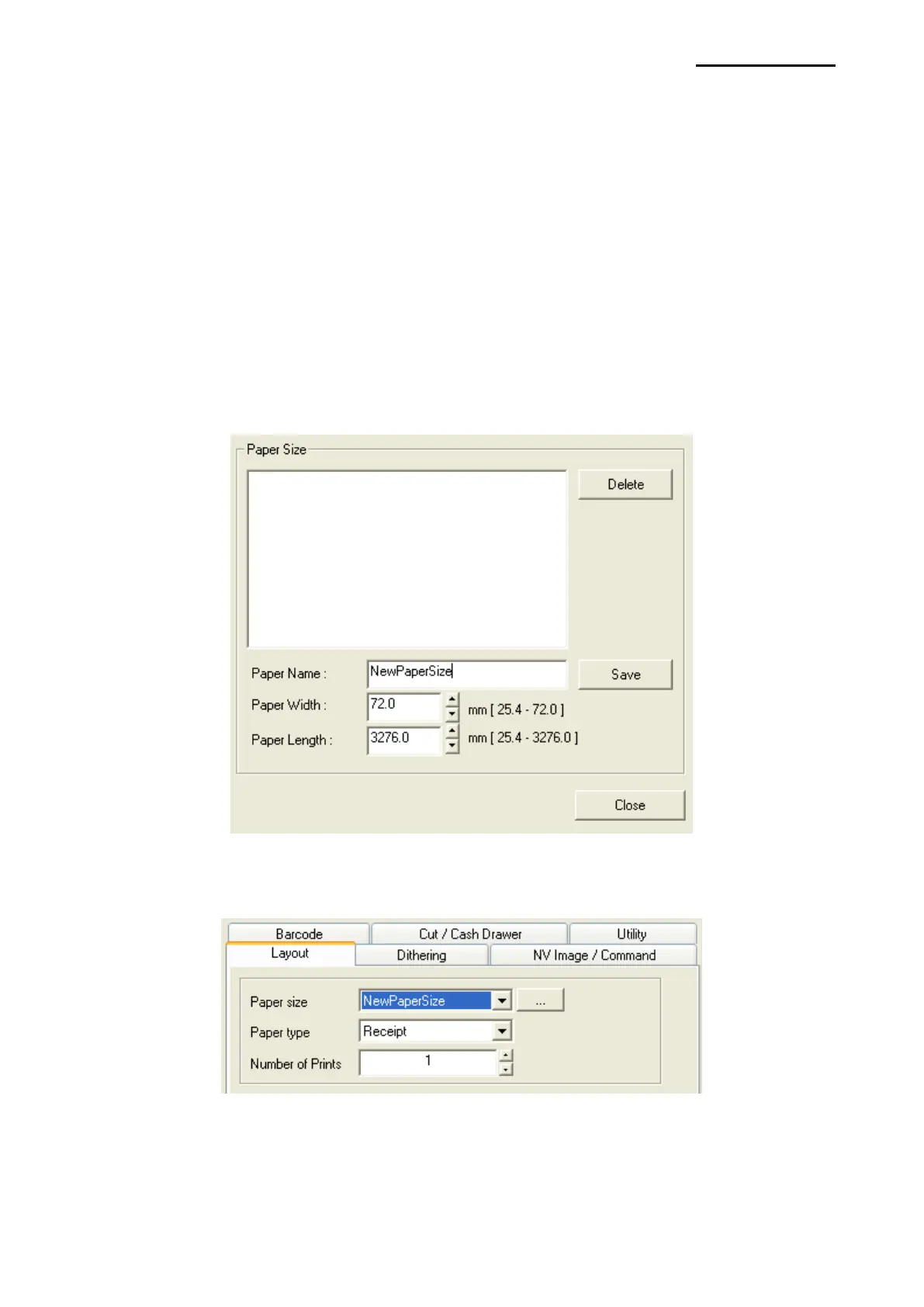

If a custom paper size is required, click the “…” button to add or update a custom paper
size and then, click the “Save” button after specifying the paper width/length and a paper
name. If the specified paper name already exists on the system, you can update the paper
width/length.
Valid Paper Width
:
25.4 mm ~ 72 mm
Valid Paper Length
:
25.4 mm ~ 3276 mm
You can choose the new paper size on the “Paper Size” combo-box after adding a paper
size.

BIXOLON SRP-350plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	50 - 80 µm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
USB port	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Wi-Fi	No
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	204 mm
