BIXOLON SRP-350plusIII Driver Manual

SRP-350plusIII
Rev. 1.02
- 27 -

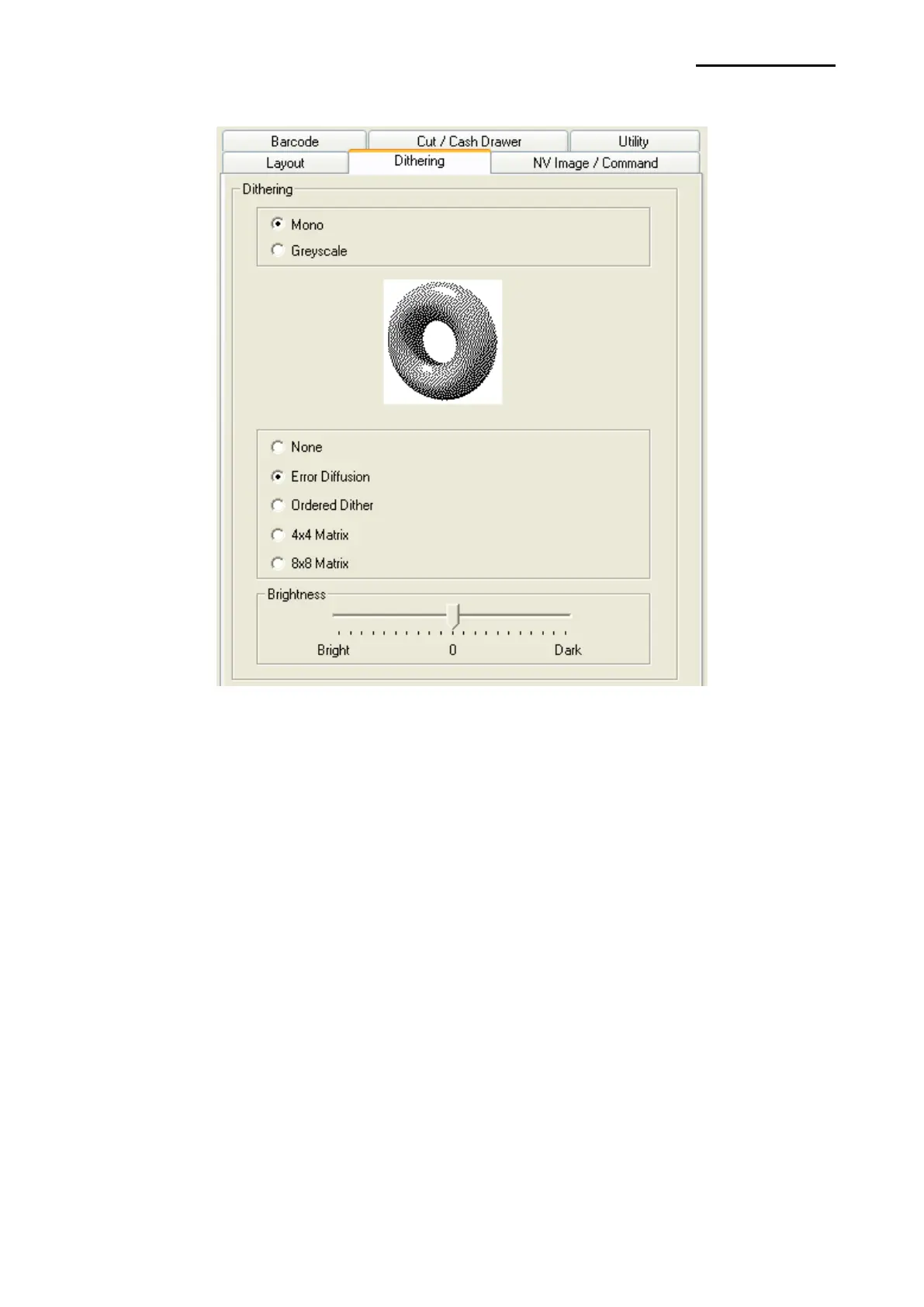

5-2 Dithering
1) Open the Printer Properties window for the corresponding OS.
2) In the General tab, click Preferences.
3) Click the Dithering tab.
This printer model is a black and white printing device including dithering function, graphic
processing, grayscale print function, and brightness level adjust function to produce a
sharper or softer image. The following dithering algorithm option is available when
Monochrome option is selected.
- None
- Error Diffusion
- Ordered Dither
- 4x4 Matrix
- 8x8 Matrix
Dithering algorithm is not available if Greyscale is selected, and print speed may become
slower because the amount of data to send to the printer becomes larger.

BIXOLON SRP-350plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	50 - 80 µm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
USB port	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Wi-Fi	No
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	204 mm
