BIXOLON SRP-350plusIII Driver Manual

SRP-350plusIII
Rev. 1.02
- 46 -
7-2 Application with WordPad
7-2-1 WordPad environment setting
After running WordPad and setting the following conditions, conduct a test.
- Select Printer
After selecting “Print” from the “File” tab, select the printer (BIXOLON SRP-350plusIII).
- Select Paper Size, Orientation, and Margins
After selecting “Page Settings” from the “File” tab, select the paper size, orientation,
and margins.

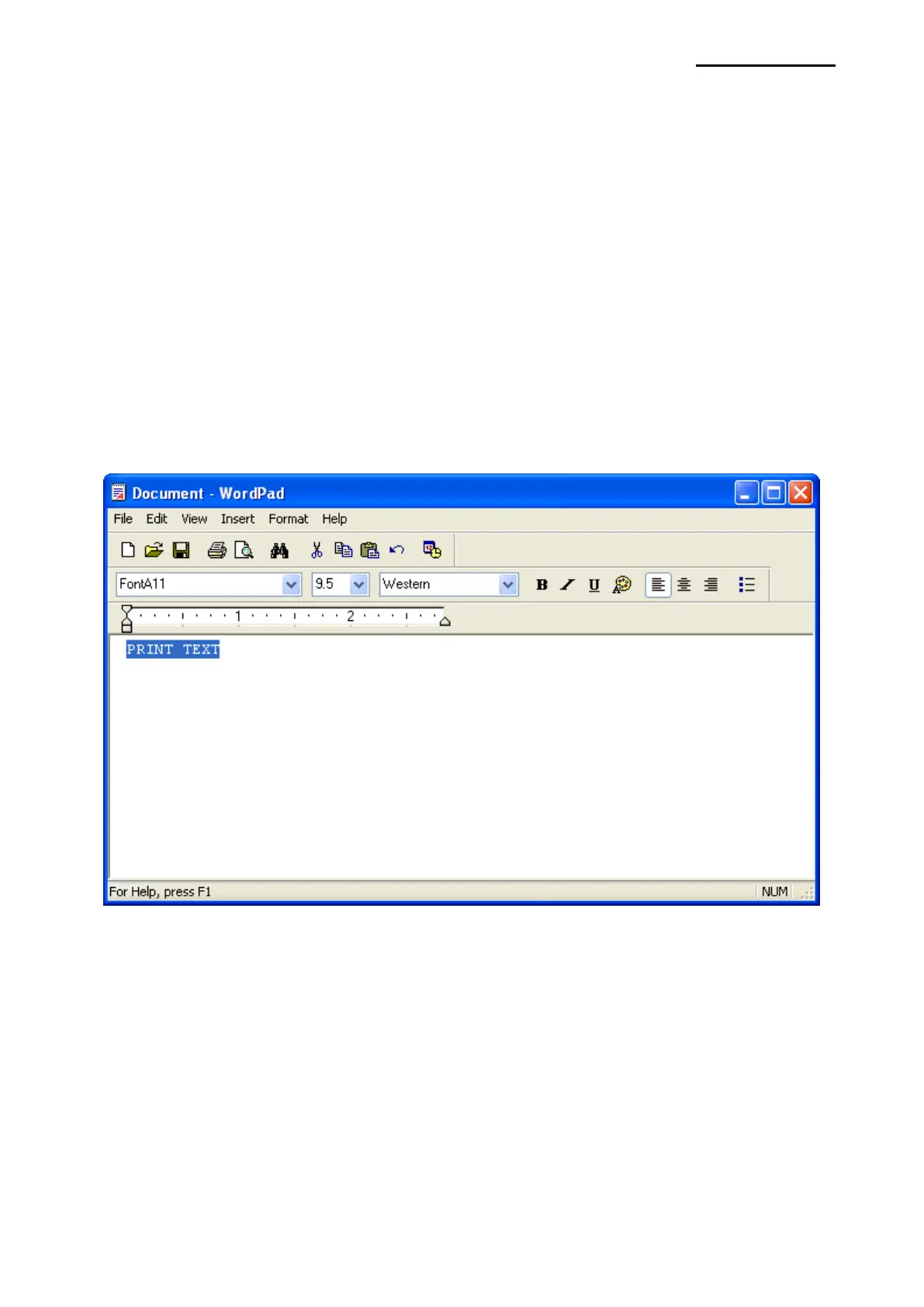

7-2-2 Text Printing
Use the Windows Driver of the printer to run a test.
1) Select the desired font from the Font menu (FontA1x1).
2) Select the desired font size (9.5).
3) Enter the text to be printed in WordPad.
4) Click the Print button in the toolbar to print.

BIXOLON SRP-350plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	50 - 80 µm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
USB port	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Wi-Fi	No
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	204 mm
