BIXOLON SRP-350plusIII Driver Manual

SRP-350plusIII
Rev. 1.02
- 35 -

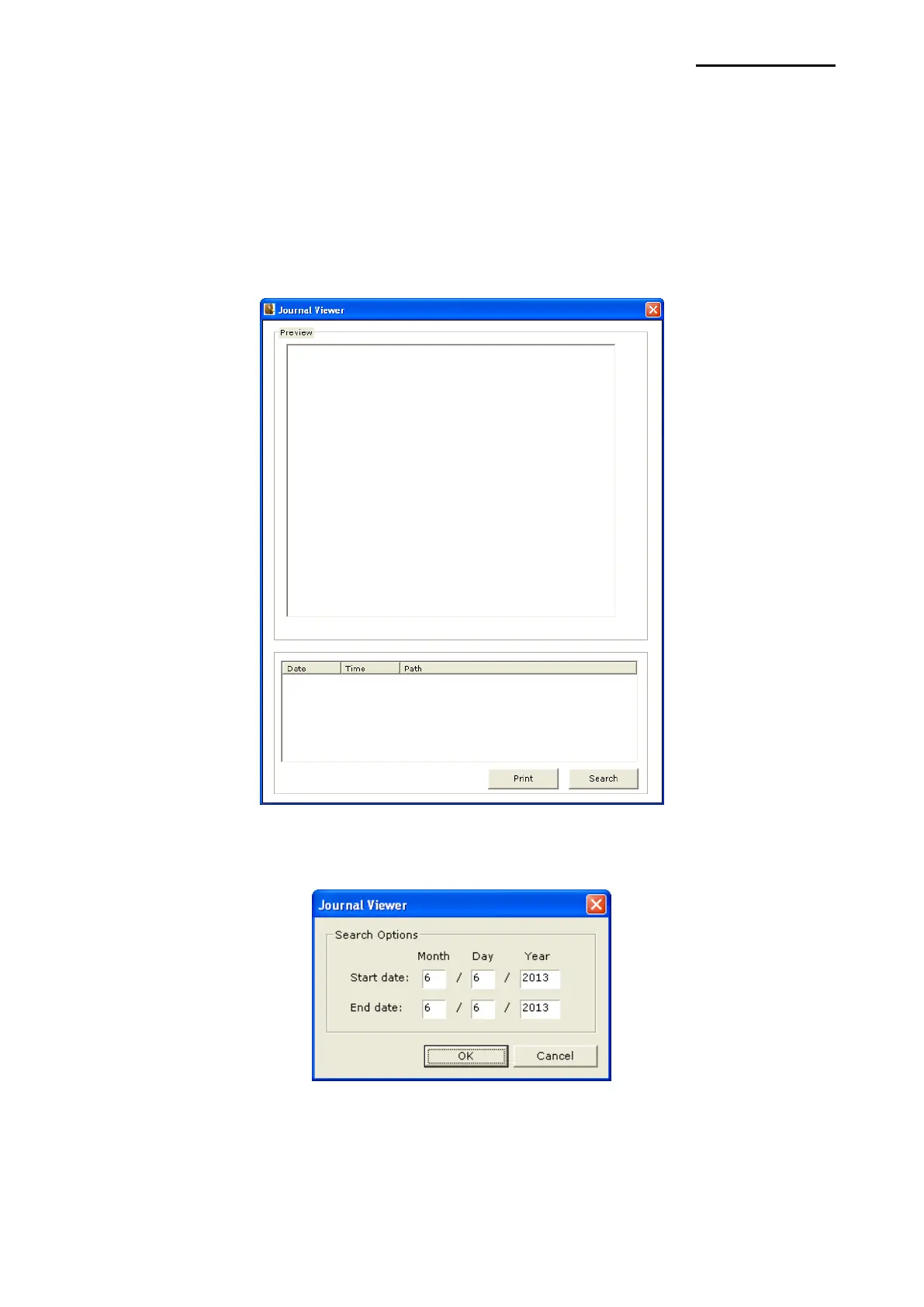

5-6-3 Journal Viewer
Journal is a function to save a copy of printed receipts. Copies can be saved without using
journal printer with this function. Journal saves each printed document in a file and the
saved file can be viewed by print and search data using this utility.
1) Tick Enable Journal and then click Journal Viewer.
2) The following window appears.
3) Click Search, and set start date and end date for searching all files created within a
specific date range.
4) Select a file name from the list, and click Print to print the data stored in the file.

BIXOLON SRP-350plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	50 - 80 µm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
USB port	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Wi-Fi	No
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	204 mm
