BIXOLON SRP-382 User Manual

SRP-382
Rev. 1.00
- 21 -
5-1-1 Paper Size
Paper size of 80 x 3276 mm is selected by default, and the following sizes can be selected.
80  40 mm
80  160 mm
80  3276 mm
80  80 mm
80  200 mm
80  120 mm
80  297 mm

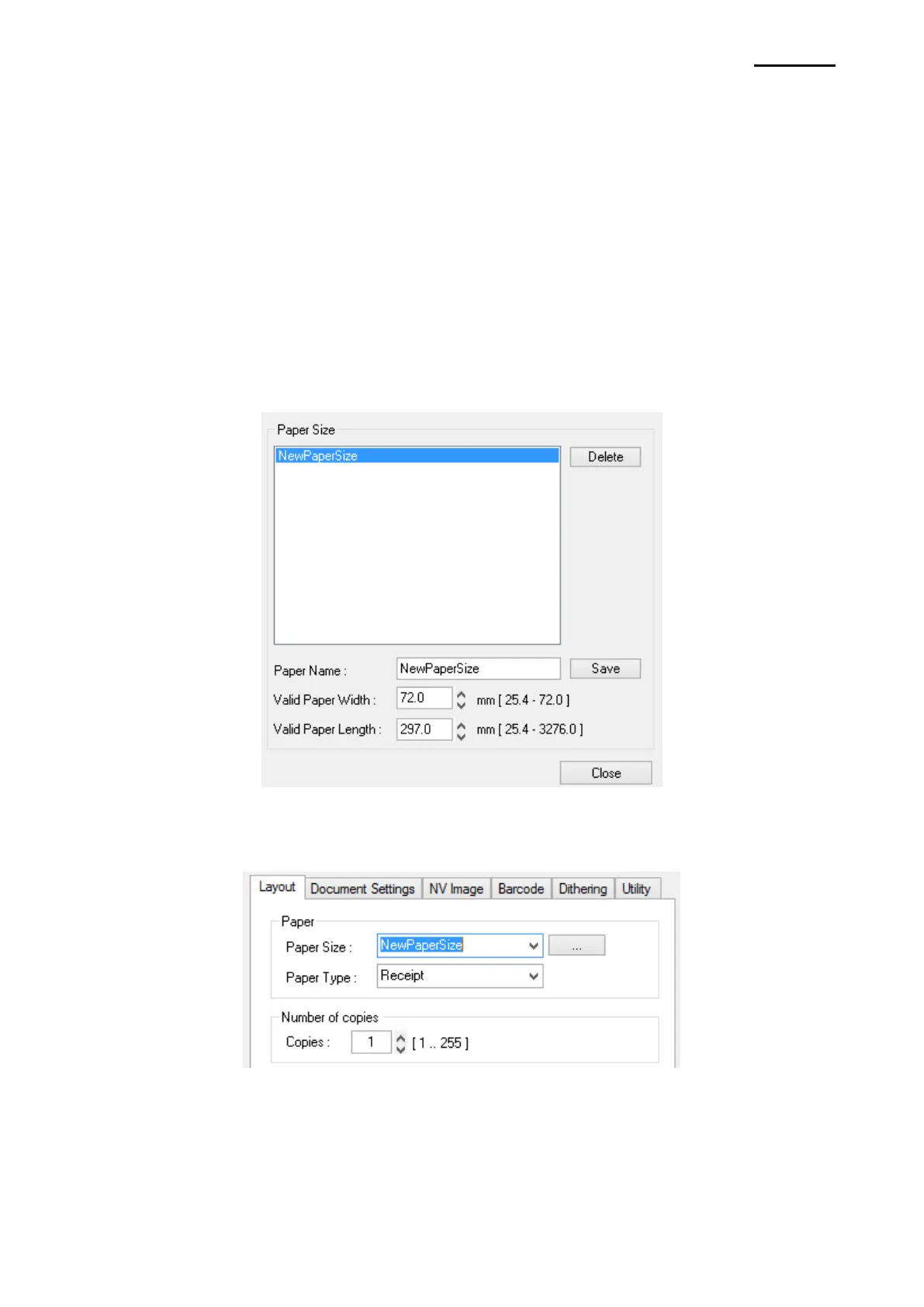

If a custom paper size is required, click “…” to add or update a custom paper size. Click
Save after specifying the paper width/length and a paper name. If the specified paper
name already exists on the system, you can update the paper width/length.
Valid Paper Width
:
25.4 mm ~ 72.0 mm
Valid Paper Length
:
25.4 mm ~ 3276.0 mm
You can choose the new paper size on the Paper Size combo-box after adding a paper
size.
Delete button : Deletes the paper size selected in the list.
Save button : Adds a new paper size or update the paper size selected in the list if the
paper name already exists on the system.

BIXOLON SRP-382 Specifications

General

Type	POS printer
Print technology	Direct thermal
Product color	Black
Bluetooth	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ethernet LAN	No
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	0.062 - 0.075 µm
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Flash memory	64 MB
RAM capacity	0.128 GB
Built-in barcodes	1D, 2D
Autocutter durability	3 million cuts
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	148 mm
Width	147 mm
Height	200 mm
