BIXOLON SRP-382 User Manual

SRP-382
Rev. 1.00
- 33 -

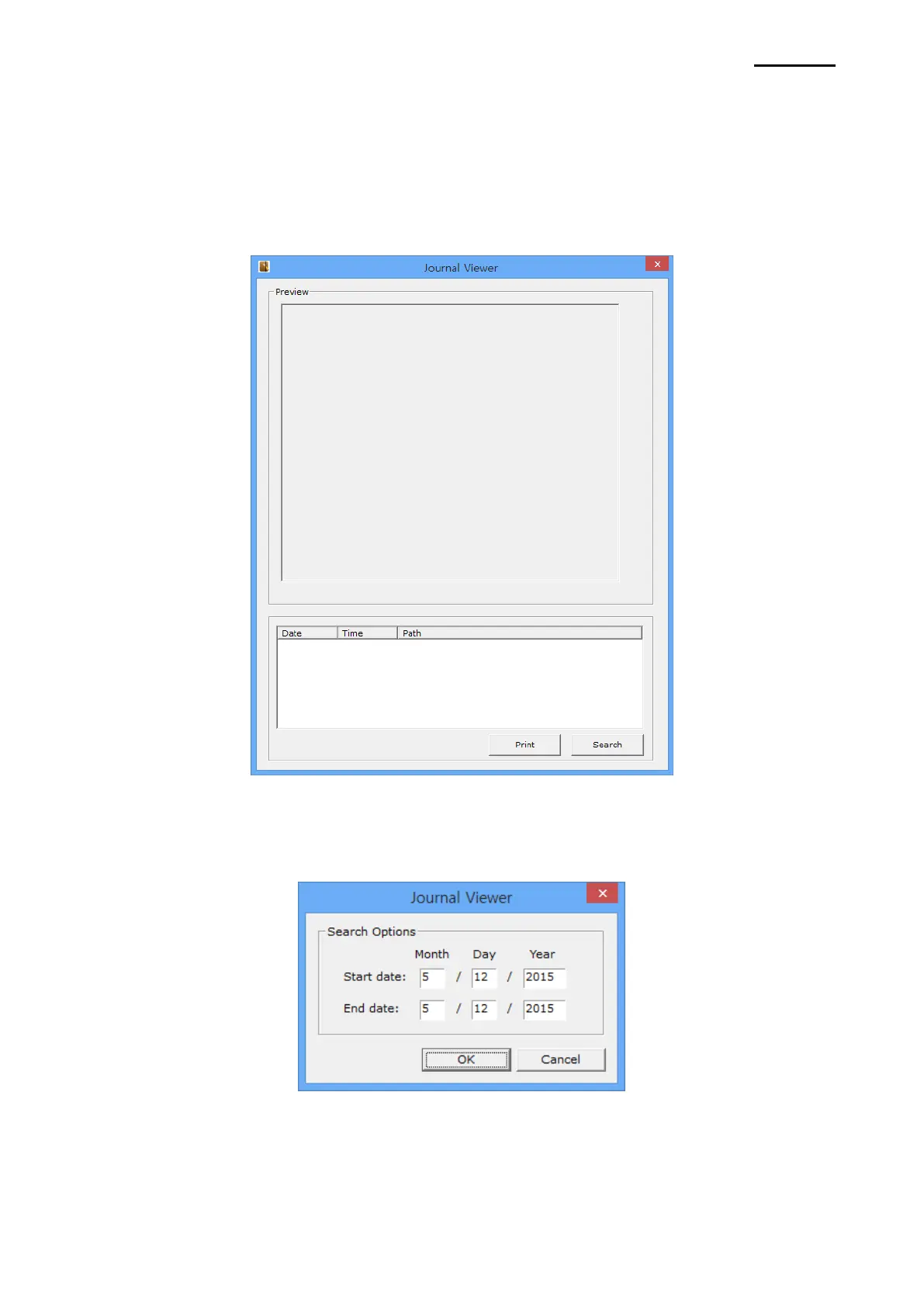

5-6-3 Journal Viewer
Journal is a function to save a copy of printed receipts. Copies can be saved without using
journal printer with this function. Journal saves each printed document in a file and the
saved file can be viewed by using this utility.
1) Tick Enable Journal to run Journal Viewer, and then click Journal Viewer.
2) Click Search to set search condition, and then enter Start Date and End Date.
3) Click OK to search the files created within the specified period.
4) Select the file to print from the list and click Print to send the data stored in the file to
the printer.

BIXOLON SRP-382 Specifications

General

Type	POS printer
Print technology	Direct thermal
Product color	Black
Bluetooth	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ethernet LAN	No
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	0.062 - 0.075 µm
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Flash memory	64 MB
RAM capacity	0.128 GB
Built-in barcodes	1D, 2D
Autocutter durability	3 million cuts
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	148 mm
Width	147 mm
Height	200 mm
