BIXOLON SRP-382 User Manual

SRP-382
Rev. 1.00
- 34 -
5-6-4 Text-Key Function
Text-Key Function is a utility to replace specific text (Text-Key) with other texts or graphic
images, and to add images to the bottom of receipts. This function can be used only when
using device fonts. It has no effect when using TTF fonts (True Type Fonts) or the data for
Text-Key does not exist on a Print-Job.

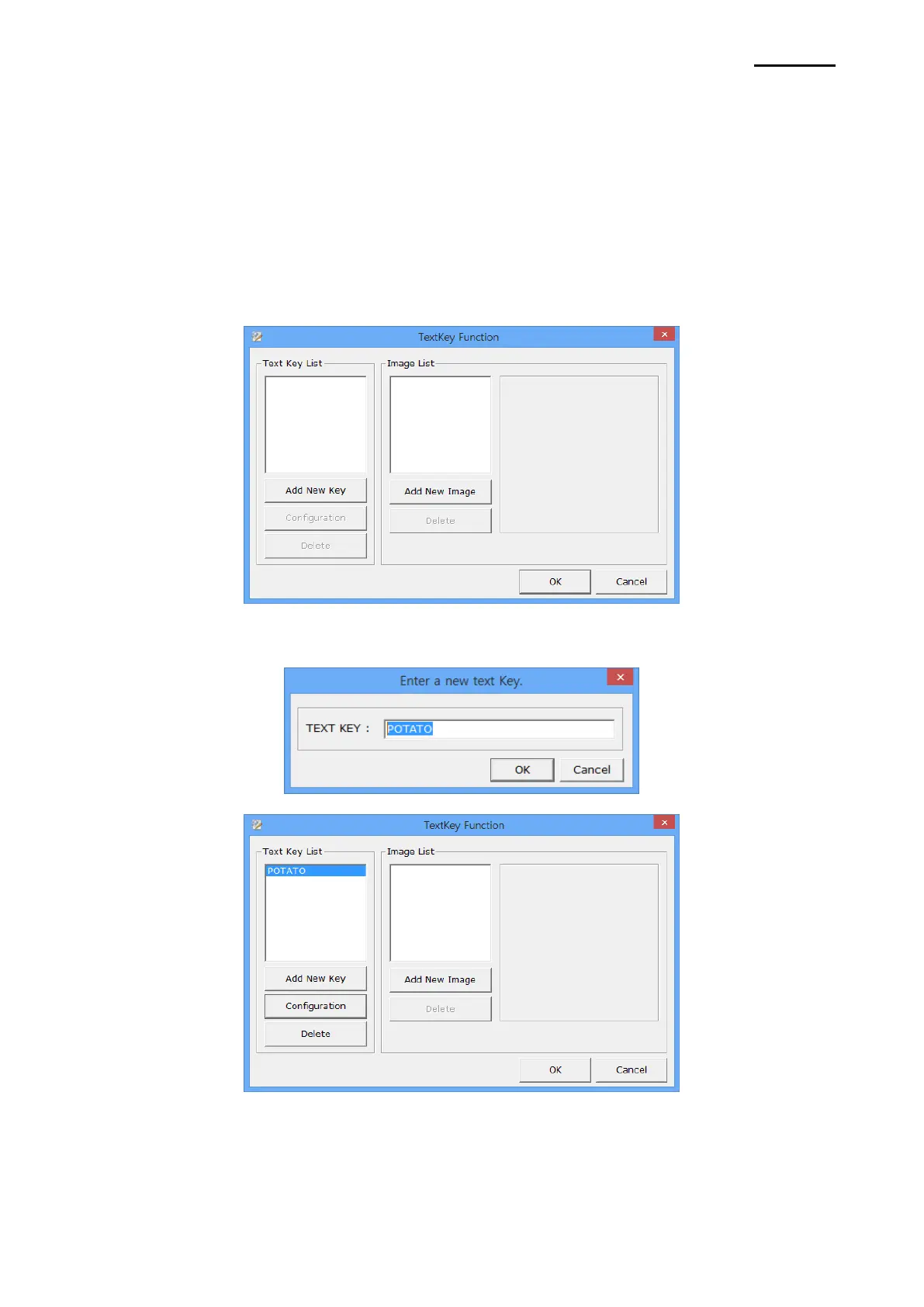

▶ How to replace Text-Key with other texts.
1) Tick Enable Text-Key Function and then click Text-Key Function.
2) Click Add New Key, type a text to be used as Text-Key, and then click OK.

BIXOLON SRP-382 Specifications

General

Type	POS printer
Print technology	Direct thermal
Product color	Black
Bluetooth	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ethernet LAN	No
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	0.062 - 0.075 µm
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Flash memory	64 MB
RAM capacity	0.128 GB
Built-in barcodes	1D, 2D
Autocutter durability	3 million cuts
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	148 mm
Width	147 mm
Height	200 mm
