BIXOLON SRP-382 User Manual

SRP-382
Rev. 1.00
- 26 -

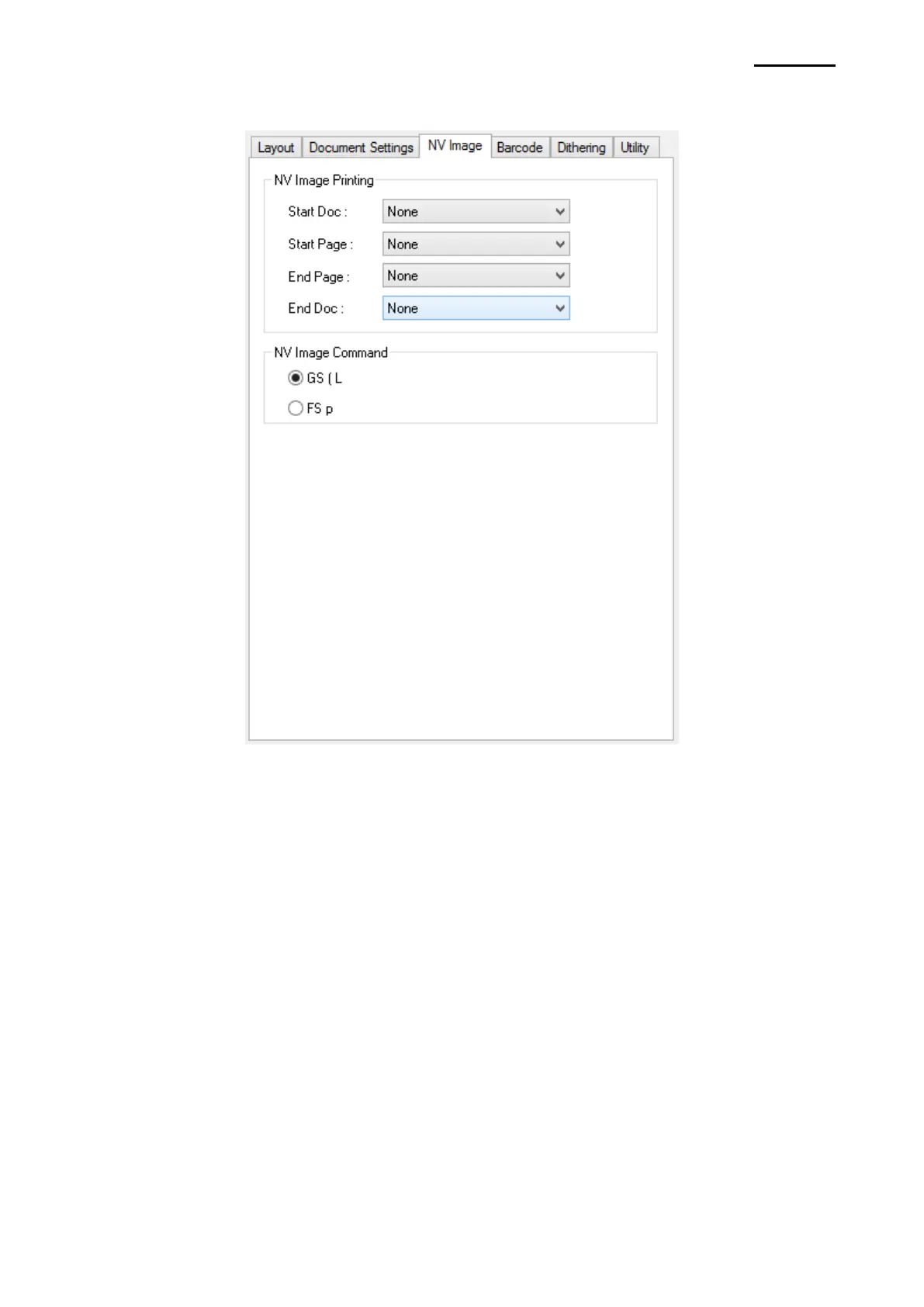

5-3 NV Image
1) Open the Printer Properties window for the corresponding OS.
2) In the General tab, click Preferences (Printing Preferences).
3) Click the NV Image tab.
The position to print NV image stored in the printer can be set at the beginning and/or end
of the document and beginning and end of each page. Also, there are two commands for
NV Image printing. Take care of selecting one of the two commands because NV images
cannot be printed depending on the selected command.
※ NV bit image: “FS p”
※ NV graphics: “GS ( L”
Start Doc
:
Insert NV image at the top of the document.
Start Page
:
Insert NV image at the top of the page.
End Page
:
Insert NV image at the end of the page.
End Doc
:
Insert NV image at the end of the document.

BIXOLON SRP-382 Specifications

General

Type	POS printer
Print technology	Direct thermal
Product color	Black
Bluetooth	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ethernet LAN	No
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	0.062 - 0.075 µm
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Flash memory	64 MB
RAM capacity	0.128 GB
Built-in barcodes	1D, 2D
Autocutter durability	3 million cuts
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	148 mm
Width	147 mm
Height	200 mm
