SRP-382
Rev. 1.00
- 37 -

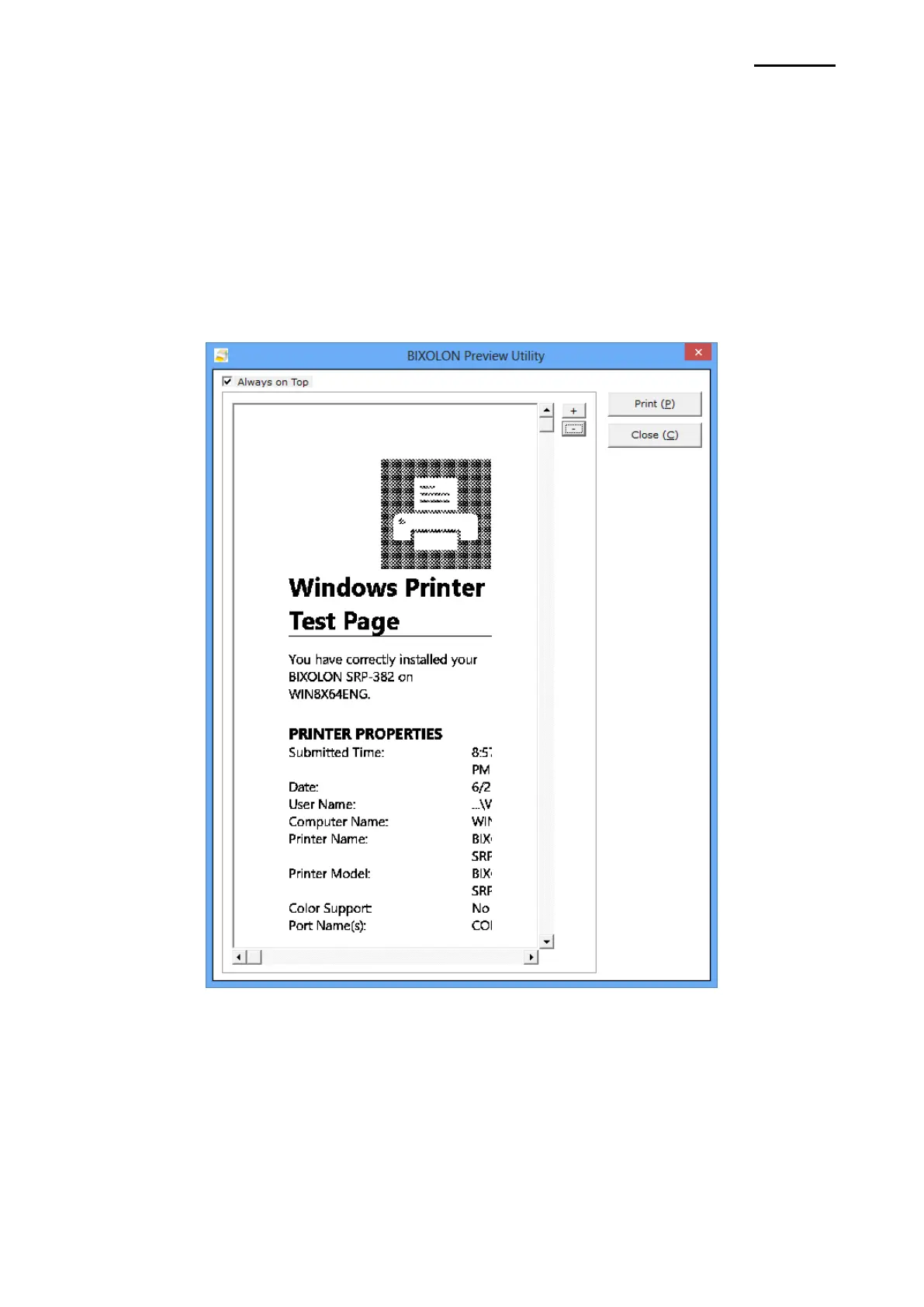

5-6-5 Preview
This application with a preview of a print-job runs, and windows driver does not directly
send print-job data to the printer when enabled by clicking Enable Print Preview. Print-
job data can be sent to the printer in the application.
The application supports a preview of a print-job including monochrome data. But
Greyscale data and data created by using device fonts or barcode fonts cannot be shown
in this application.
1) Tick Enable Print Preview to make Windows Driver ready for running the application.
2) When print-job data are created via Windows Driver, the application runs, and then
loads the data to draw the expected output on screen.
3) Click Print if you want to print, or click Close to exit the application.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the BIXOLON SRP-382 and is the answer not in the manual?

BIXOLON SRP-382 Specifications

General IconGeneral
TypePOS printer
Print technologyDirect thermal
Product colorBlack
BluetoothYes
USB 2.0 ports quantity1
Connectivity technologyWired
Ethernet LANNo
Maximum roll diameter83 mm
Supported paper width80/58 mm
Maximum printing width72 mm
Printing media thickness0.062 - 0.075 µm
Size (imperial)3 \
Sustainability certificatesENERGY STAR
AC input voltage100-240 V
Power source typeAC
AC input frequency50-60 Hz
Flash memory64 MB
RAM capacity0.128 GB
Built-in barcodes1D, 2D
Autocutter durability3 million cuts
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)10 - 90 %
Operating relative humidity (H-H)10 - 80 %
Mobile operating systems supportedAndroid, iOS
Weight and Dimensions IconWeight and Dimensions
Depth148 mm
Width147 mm
Height200 mm
