BIXOLON SRP-382 User Manual

SRP-382
Rev. 1.00
- 32 -
5-6-1 Unified POS Utility
Refer to the Unified POS Utility manual contained in the CD for details.

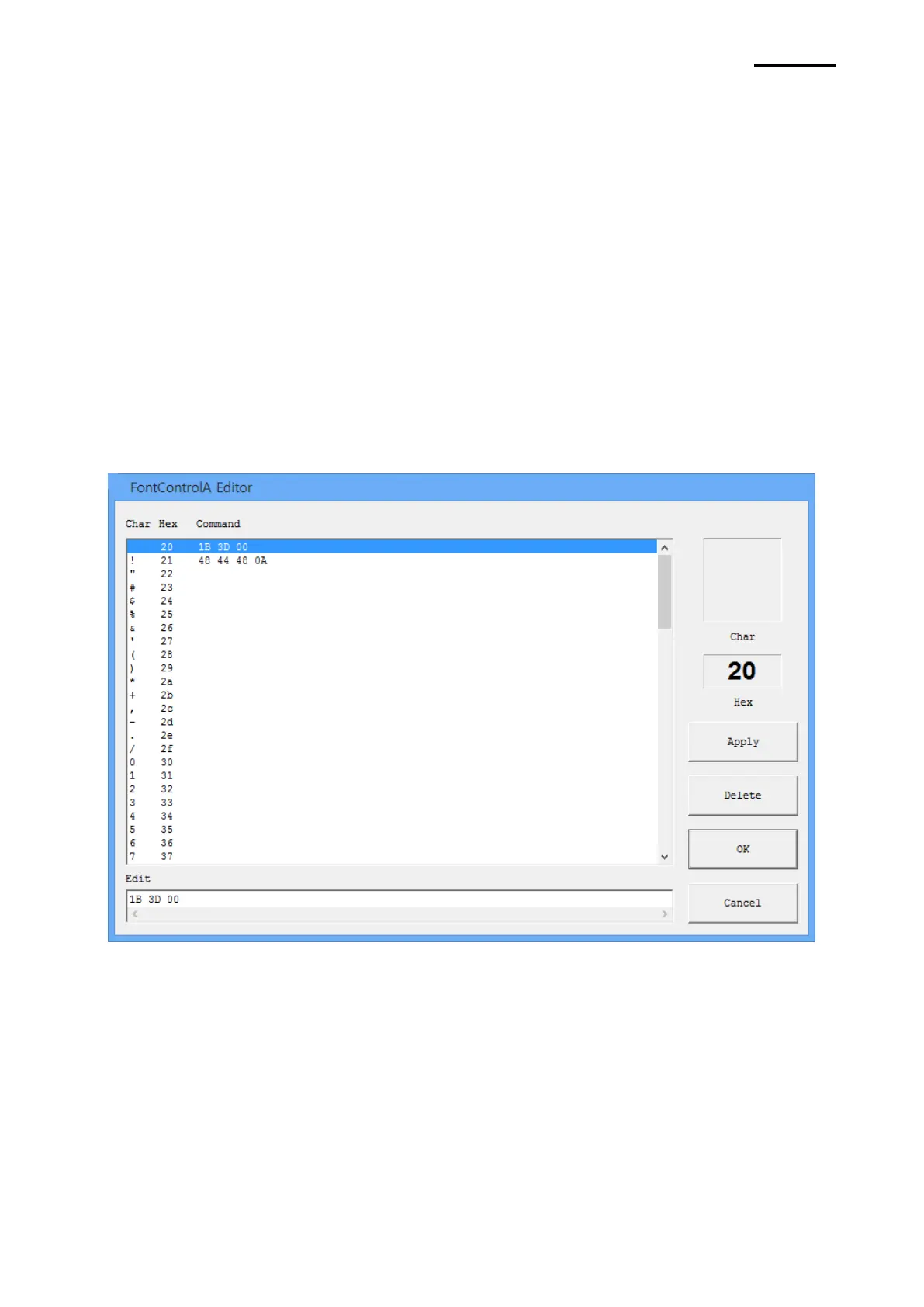

5-6-2 Special Font Edit Utility
The purpose of FontControlA font is not for text printing. It is used to define the printer
command, assign the defined printer command to a specific ASCII character, and send it
to the printer. The range of ASCII code that the command can be assigned is from 0x20 to
0x7F, and the command can be easily assigned using this utility.
1) Click Special Font Edit.
2) Select an ASCII code character and enter the print command. All values should be
entered in hexadecimal number format.
3) Click Apply and then click OK.

BIXOLON SRP-382 Specifications

General

Type	POS printer
Print technology	Direct thermal
Product color	Black
Bluetooth	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ethernet LAN	No
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	0.062 - 0.075 µm
Size (imperial)	3 \
Sustainability certificates	ENERGY STAR
AC input voltage	100-240 V
Power source type	AC
AC input frequency	50-60 Hz
Flash memory	64 MB
RAM capacity	0.128 GB
Built-in barcodes	1D, 2D
Autocutter durability	3 million cuts
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	148 mm
Width	147 mm
Height	200 mm
