18
2. Connect the BNC output of CH1 (yellow) into an oscilloscope.
3. Press the Output button on top of CH1 output BNC to turn on the output and
observe a sine wave with the parameters above.
4. Press the Freq or Period option in the menu and use the rotary knob or the numeric
keypad to change frequency. Observe the changes on the oscilloscope display.
5. Press the Ampl option in the menu and use the rotary knob or the numeric keypad
to change the amplitude. Observe the changes on the oscilloscope display.
6. Press the Offset option in the menu and use the rotary knob or the numeric keypad
to change the DC offset. With the oscilloscope set for DC coupling, observe the
changes on the display.
7. Now, connect the BNC output of CH2 (blue) into an oscilloscope and follow steps 3
to 6 to check its output.
3 Front Panel Operation
3.1 Menu Options
All settings and parameters can be configured from the menu system of the instrument. The
menu options that are channel specific are the same for both channel 1 and channel 2. Use
the key to toggle the channel selection.

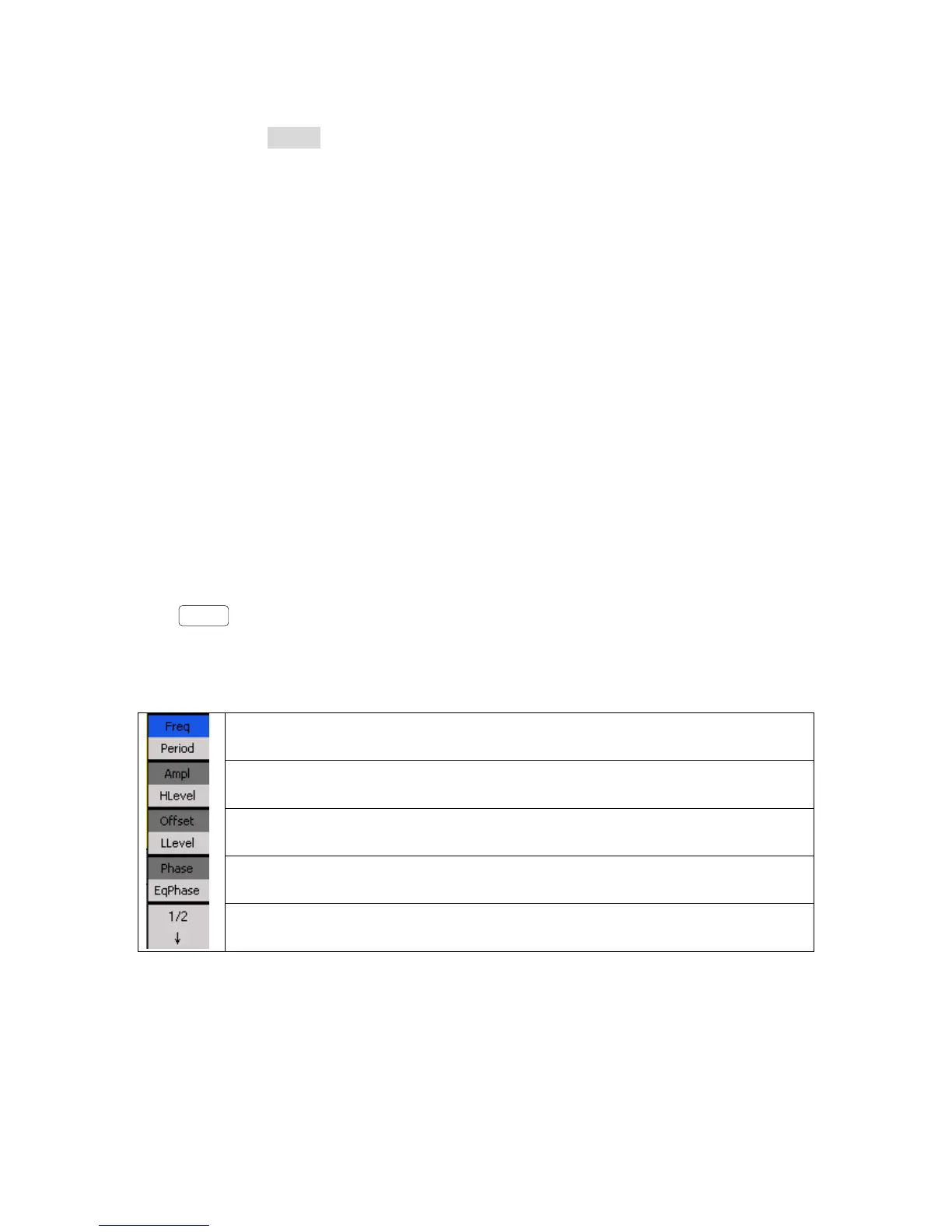

Some many options are grouped in pairs and can be selected by toggling their corresponding
menu function keys. For example:
Function key will toggle selection between frequency or period.
Function key will toggle selection between amplitude or HI level.
Function key will toggle selection between DC offset or LO level.
Function key will toggle selection between phase or equal phase.
Function key will go to page 2/2 menu.
The menu system is organized as follows:
To Next Page
