25
Configure DC Offset
Note: This section does not apply for noise waveform.
Follow the steps below to configure the DC offset of the output.
1. From the menu, select Offset.
2. The cursor position will now highlight the first digit of the offset parameter display.

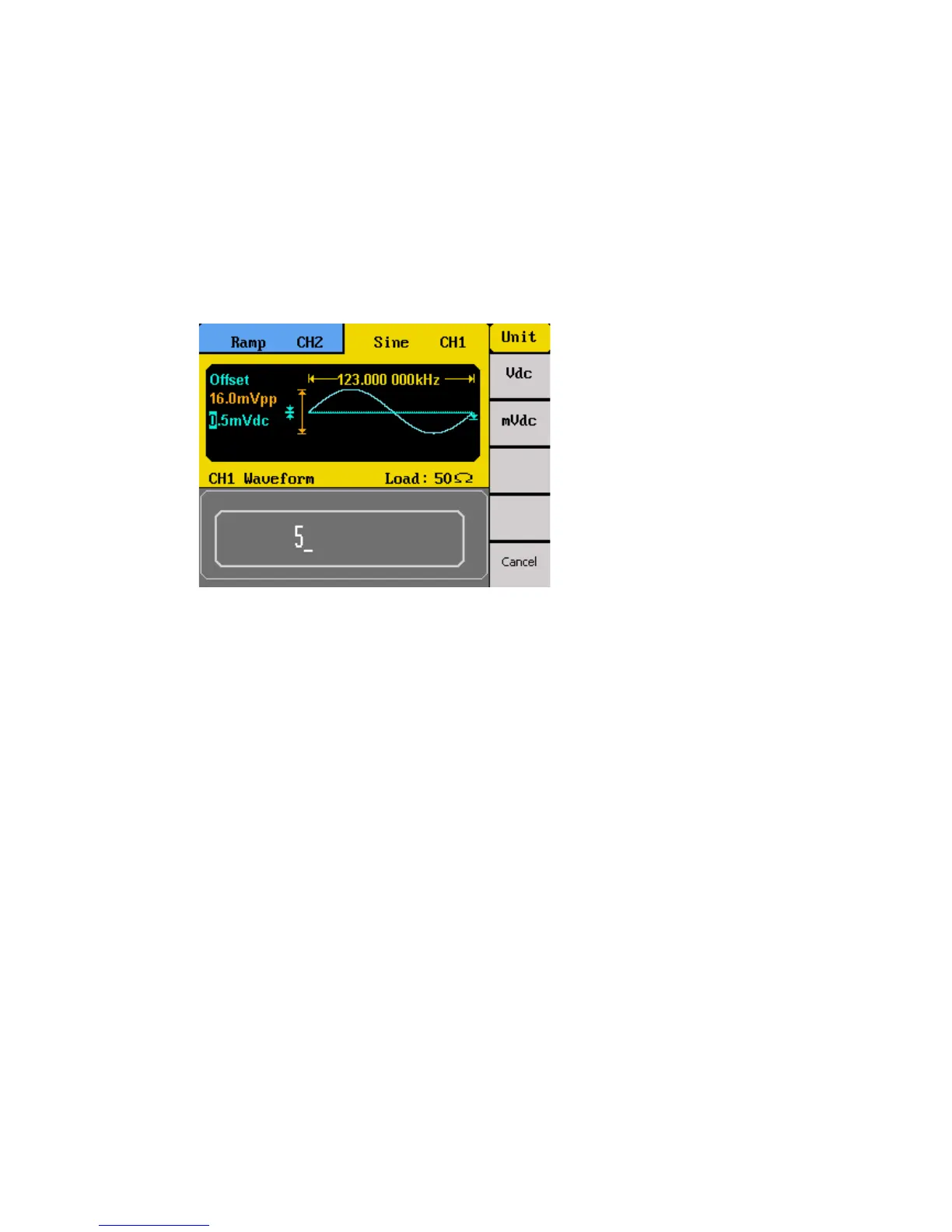

3. Use the rotary knob or the numeric keypad to change the offset. If numeric keypad
is used, the below screen will display:
After entering the numeric value, use the menu function keys to select the unit to
apply for the offset setting. Available units are: Vdc, mVdc.
Configure Phase
Note: This section does not apply for pulse and noise waveforms.
Follow the steps below to configure the phase of the output.
1. From the menu, select Phase.
2. The cursor position will now highlight the first digit of the phase parameter display.
3. Use the rotary knob or the numeric keypad to change the phase. If numeric keypad
is used, the below screen will display:
