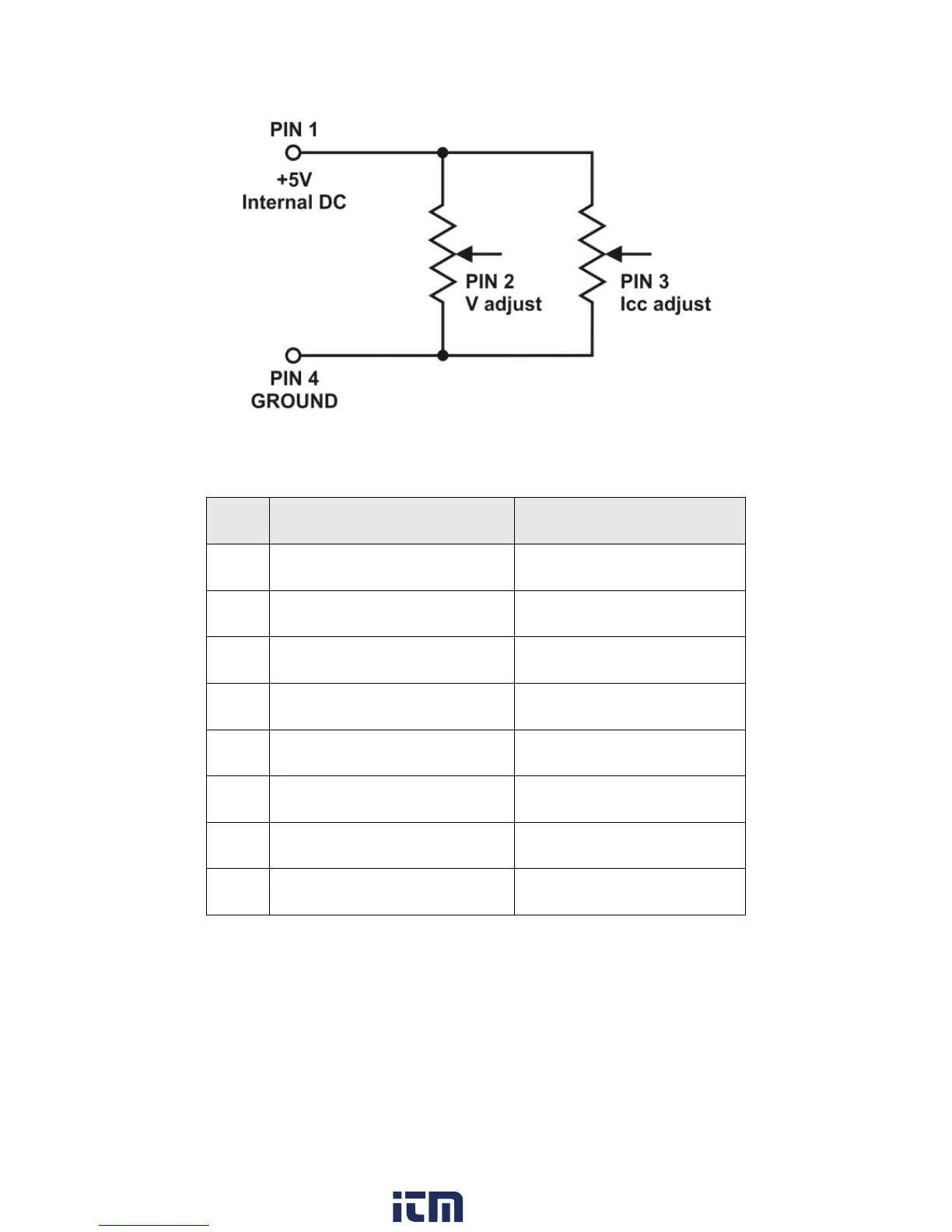

Figure
20
-
Variable 5 kΩ Resistors Setup
PIN
FUNCTIONS
REMARKS
1
Internal DC +5 V
Resistor end
2
Voltage Adjust
Variable part of resistor
3
Current Adjust
Variable part of resistor
4
Ground
Resistor end
5
Output OFF
Short to Ground
6
N/A
7
N/A
8
N/A
Table 6 - Analog Remote Control Connector Pinout: Voltage Control
3. Turn the remote control ON/OFF switch to ON position.
4. Switch on the power supply.
5.
Check the output voltage range of the power supply by varying the 5 k
Ω variab
le resistor for
voltage adjustment.
w
w
w
.
.
c
o
m
in
fo
rma
ti
on@
it
m.c
om
1
.8
00
.5
61.
81
87
34
36
Table of Contents
Safety Summary
2
Compliance Statements
8
CE Declaration of Conformity
9
Safety Symbols
10
Table of Contents
11
1 General Information
13
Product Overview
13
Package Contents
13
Input Power
14
Fuse Requirements
14
Fuse Replacement
14
2 Controls and Indicators
15
Front Panel
15
Rear Panel
16
3 Operating Instructions
17
Safety Precautions
17
Using Keypad and Control Knobs
18
Keypad
18
Control Knobs
18
Menu/Shift Button and Key Lock Button Functions
18
Upper Voltage Limit (UVL)
18
Upper Current Limit
18
To Activate the Remote Control Mode
18
Deactivating Remote Control Mode
19
Factory Reset
19
Changing Ammeter to Wattmeter
20
The Key Lock Button
20
4 Operating Modes
21
Normal Mode
21
Powering on the Power Supply
21
Connect the Device under Test to the Power Supply
21
Turn on the Power Supply
22
Changing Ammeter to Wattmeter
22
Key Lock Function
22
Changing the Values of UVL and UCL
23
Preset Mode
23
Transient Mode
24
Step Size (Seconds)
25
Transition Time
25
Select First Step
26
Number of Cycles
26
Transient Mode: Examples
26
Analog Remote Control
31
How to Enter Remote Control Mode
31
To Deactivate the Remote Control Mode
31
Analog Remote Control Methods and Set Ups
32
Analog Remote Control: Voltage Control
33
Remote Enable and Disable the Output
36
PC Interface Control
36
5 Remote Sensing
37
6 Protection Faults
38
OVP: over Voltage Protection
38
OTP: over Temperature Protection
38
OCP: over Current Protection
39
7 Specifications
40
