BK Precision 9110 - Front Panel Layout and Controls; Voltage and Current Indicators; Front Panel Buttons and Keys; Display and Controls

10

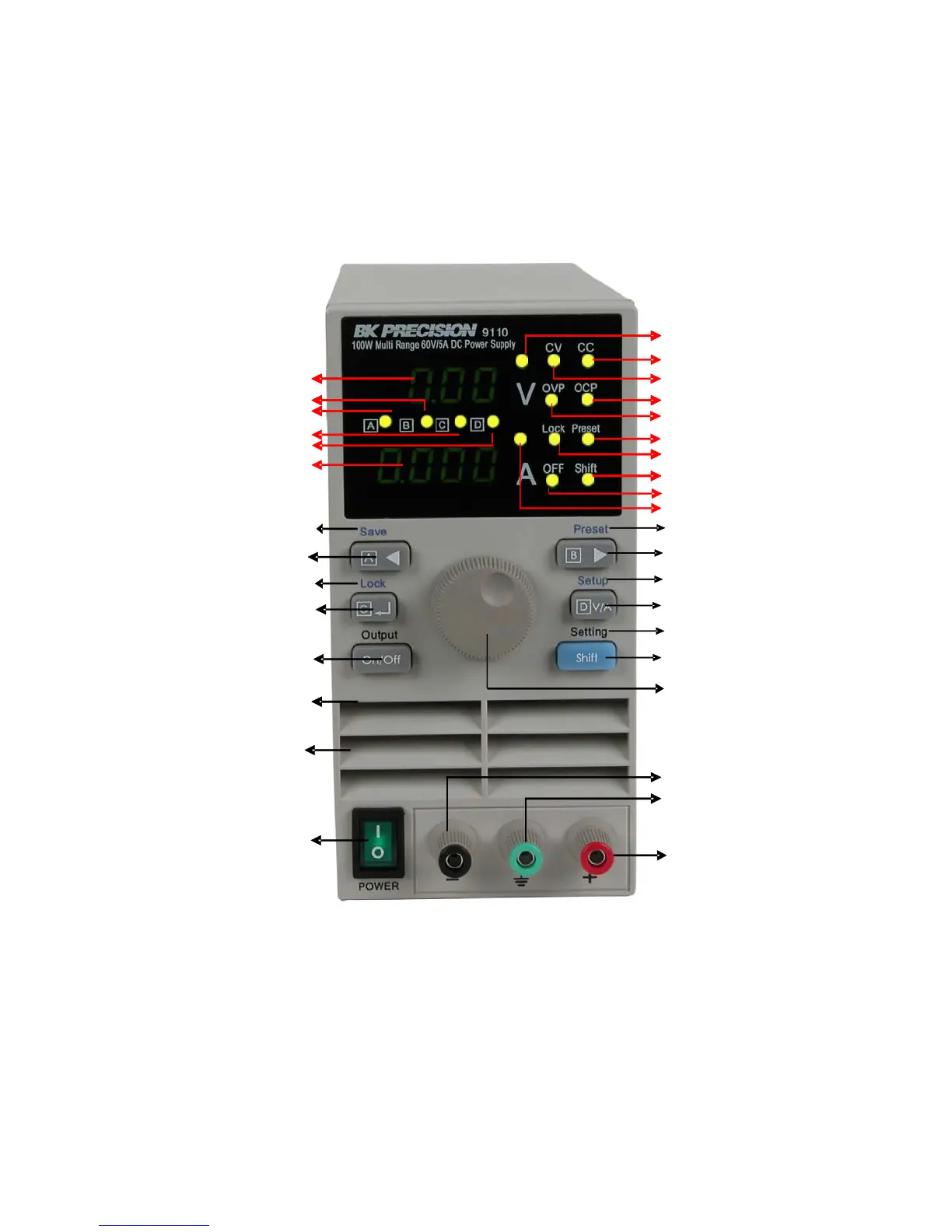

Front Panel layout
Set Voltage indicator
Voltage value
Cursor position B or preset B is active
Cursor position A or preset A is active
Cursor position C or preset C is active
Cursor position D or preset D is active
Current value
Store voltage-ampere combination (Shift)
Move cursor left or store/recall
preset A values
Keyboard lock (Shift)
Enter or store/recall preset C values
CC mode indicator
CV mode indicator
OCP indicator
OVP indicator
Preset mode indicator
Keys locked indicator
Shift mode indicator
Output off indicator
Set Current indicator
Recall Preset values
Move cursor left or store/recall
preset B values
Enter OVP, OCP, preset mode
Toggle between Voltage/Current
setting or store/recall preset D
Display Voltage and Current setting
Output on/off
Secondary function key
knob
Air flow input
Main Power on/off
Output -
Ground
