1.6 Keypad Overview

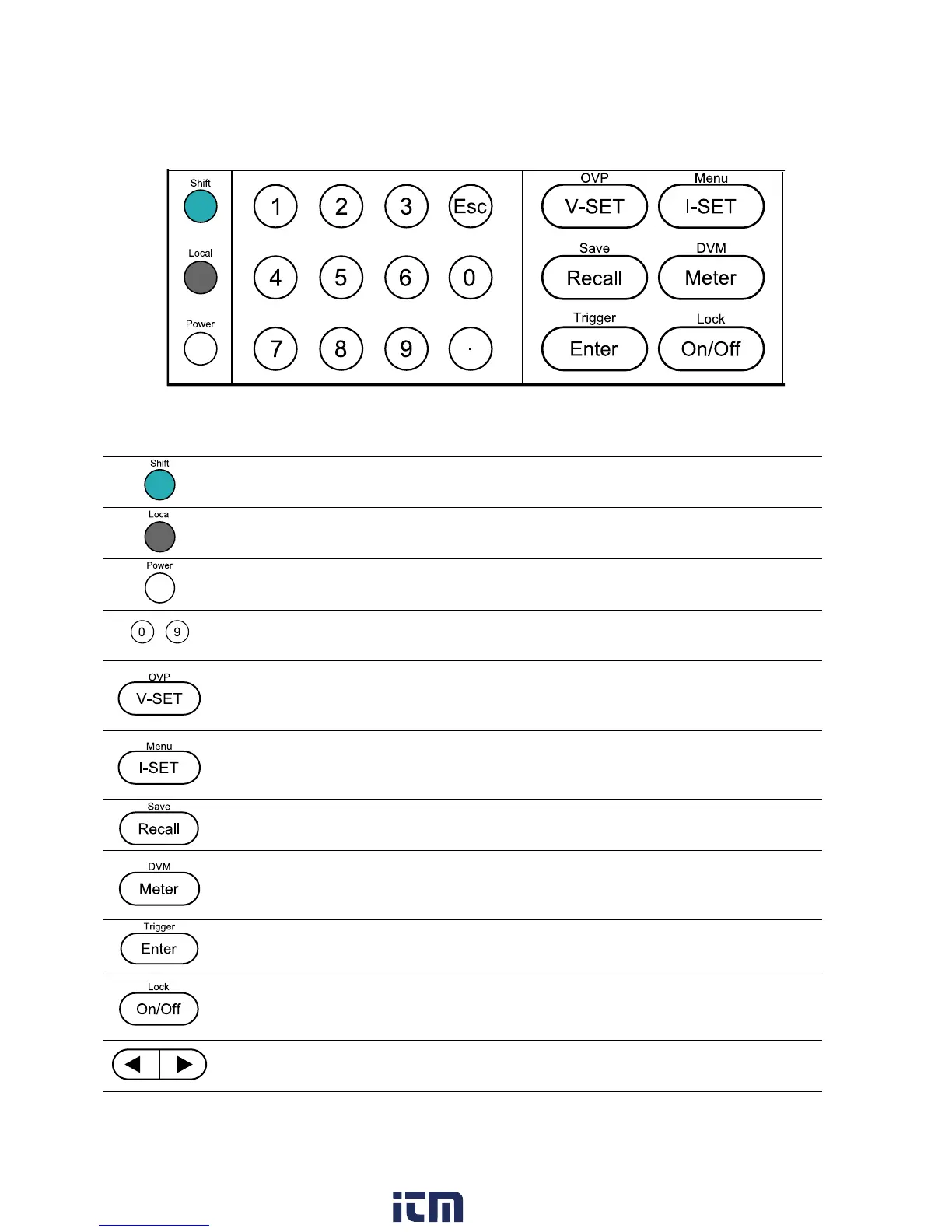

Figure 2 Keypad View
Keypad Description
Enables access to secondary functions (Labeled in blue)
Sets the instrument back to local mode.
Enters numeric values for various parameters.
Configures output voltage or sets the overvoltage protection point for the
power supply.
Configures output current or allows access to the power supply menu
settings.
Saves and recalls instrument settings.
Switches from set value display to metered output value display or switches
to digital voltmeter function.
Enter / Trigger key
Confirms setting/parameter changes or used to trigger a list program.
Controls output On/Off state of the power supply or used to lock the front
panel buttons.
Adjusts cursor position or select menu items.
