Chapter 3: Configuration
3.16.6 Port DSCP
The section describes how to set the QoS Port DSCP configuration, enabling you to configure the basic QoS Port DSCP
Configuration settings for all switch ports. Others the settings relate to the currently selected unit, as shown in the page header.
Web Interface
To configure the QoS Port DSCP parameters in the Web interface:
1. Click Configuration, QoS, Port DSCP.
2. Evoke to enable or disable the Ingress Translate and Scroll the Classify Parameter configuration.
3. Scroll to select Egress Rewrite parameters.
4. Click the Save button to save the setting.
5. To cancel the setting, click the Reset button to revert to previously saved values.

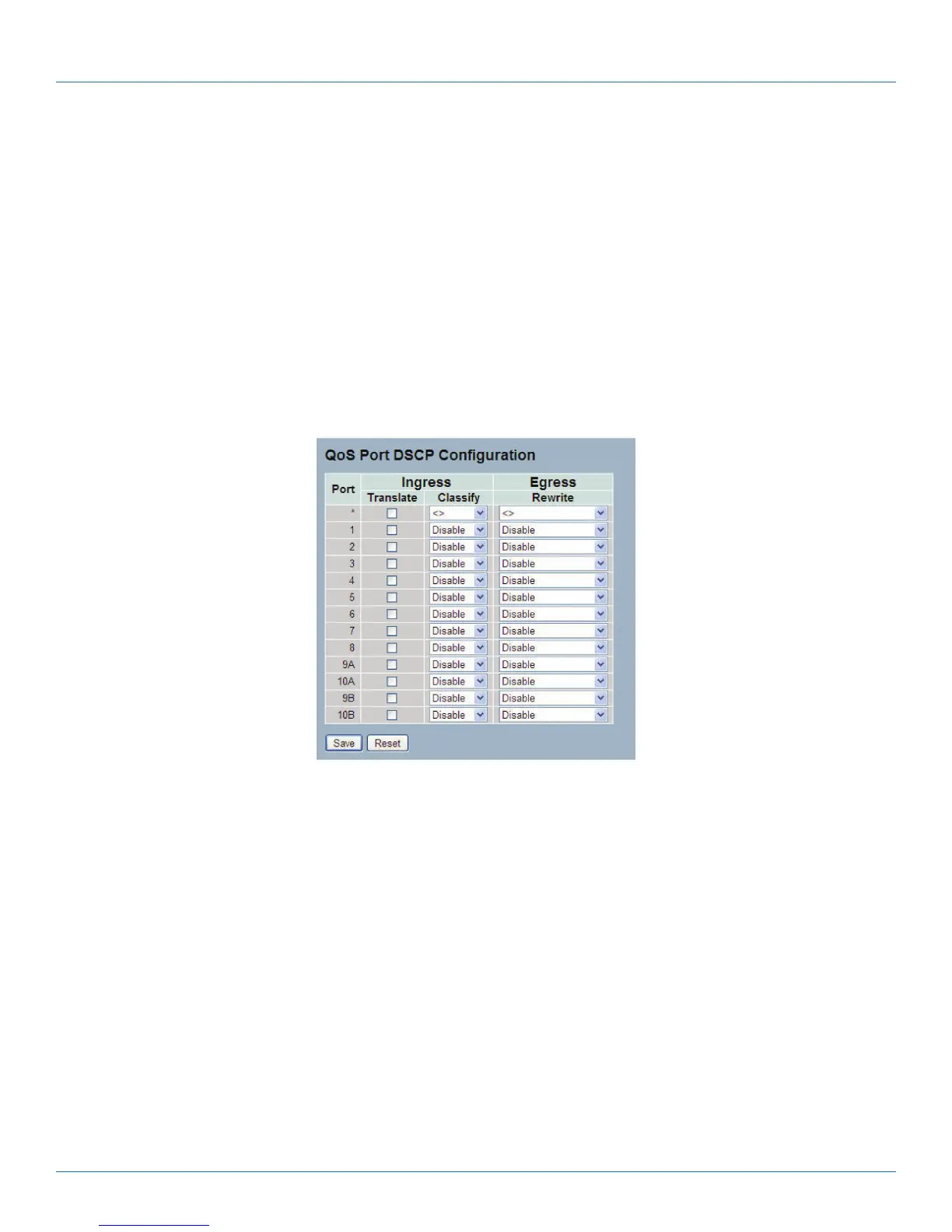

Figure 3-79. The QoS Port DSCP Configuration screen.
Parameter Description
• Port: The Port column shows the list of ports for which you can configure DSCP ingress and egress settings.
• Ingress: In Ingress settings you can change ingress translation and classification settings for individual ports.
There are two configuration parameters available in Ingress:
1. Translate: To Enable the Ingress Translation, click the checkbox.
2. Classify: Classifications for a port have four different values.:
- Disable: No Ingress DSCP Classification.
- DSCP=0: Classify if incoming (or translated if enabled) DSCP is 0.
- Selected: Classify only the selected DSCP for which classification is enabled as specified in the DSCP Translation window for
the specific DSCP.
- All: Classify all DSCP.
LPB2810A
