Chapter 3: Configuration
Auto-refresh: Check the auto-refresh box to set the unit to refresh information automatically.
Resolve Conflict: Click it to resolve confict issues.
Icon, upper right of screen (Refresh): Click to refresh the QCL information manually.
3.16.12 Storm Control
This section describes how to configure the Storm control for the switch. There is a unicast storm rate control, multicast storm
rate control, and a broadcast storm rate control. These only affect flooded frames, i.e. frames with a (VLAN ID, DMAC) pair not
present on the MAC Address table. The configuration indicates the permitted packet rate for unicast, multicast, or broadcast
traffic across the switch
Web Interface
To configure the Storm Control Configuration parameters in the Web interface:
1. Click Configuration, QoS, Storm Control Configuration.
2. Select the frame type to enable storm control.
3. Scroll to set the Rate Parameters.
4. Click the Save button to save the setting.
5. Click the Reset button to cancel and revert to previously saved values.

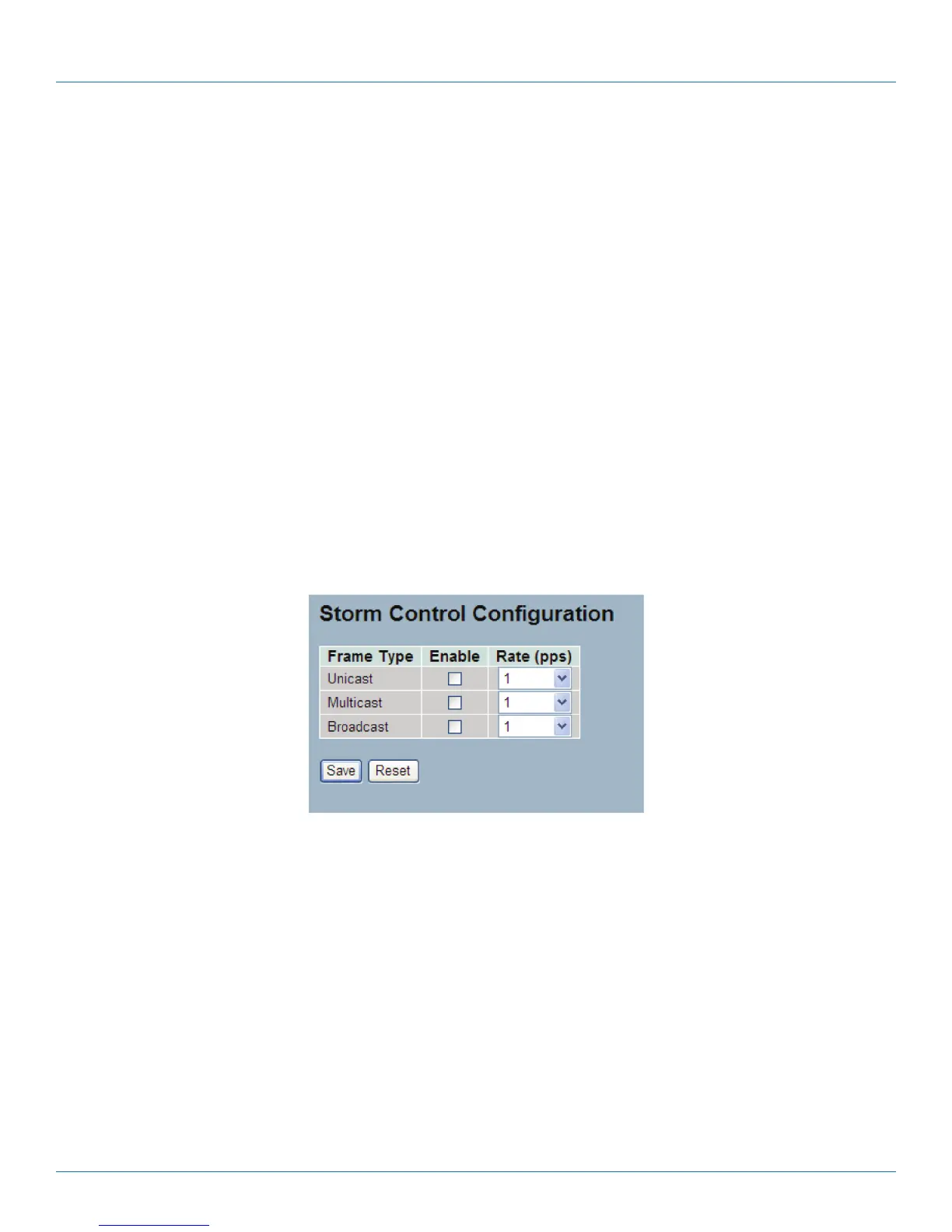

Figure 3-85. The Storm Control Configuration screen.
Parameter Description
Frame Type: The settings in a particular row apply to the frame type listed here: Unicast, Multicast, or Broadcast.
Enable: Enable or disable the storm control status for the given frame type.
Rate: The rate unit is packets per second (pps). Valid values are: 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1K, 2K, 4K, 8K, 16K, 32K,
64K, 128K, 256K, 512K, 1024K, 2048K, 4096K, 8192K, 16384K, or 32768K. The 1 kpps is actually 1002.1 pps.
Buttons:
- Save: Click to save changes.
- Reset: Click to undo any changes made locally and revert to previously saved values.
