Page 175
Chapter 4: Security
4.2.3 Dynamic Table
This section describes how to configure the Dynamic ARP Inspection Table parameters. The Dynamic ARP Inspection Table
contains up to 1024 entries, and is sorted first by port, then by VLAN ID, then by MAC address, and then by IP address.
Web Interface
To configure a Dynamic ARP Inspection Table Configuration in the Web interface:
1. Specify the Start from port, VLAN ID, MAC Address, IP Address, and entries per page.
2. Check “Auto-refresh”.

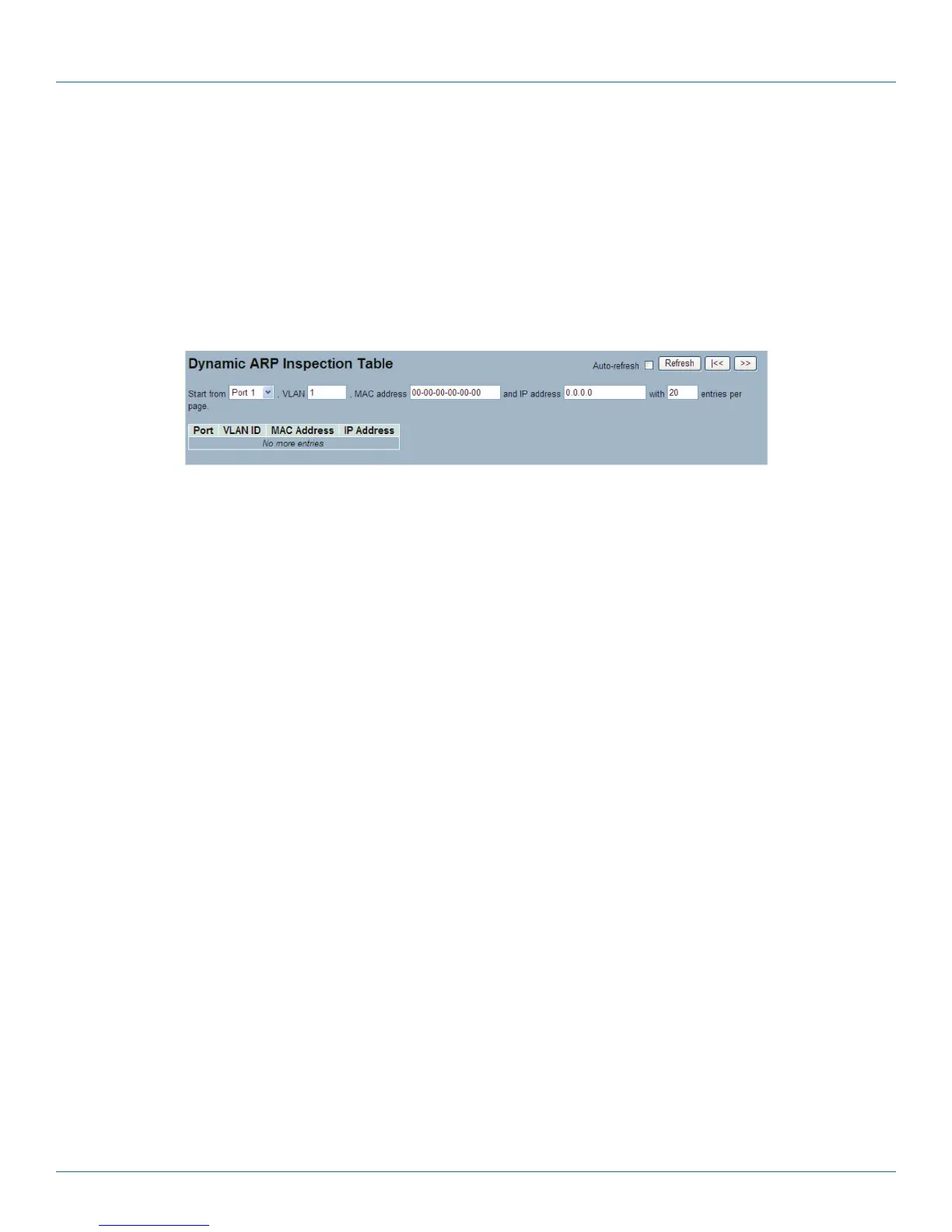

Figure 4-6. The Dynamic ARP Inspection Table screen.
Parameter Description
• Port: Switch Port Number for which the entries are displayed.
• VLAN ID: VLAN-ID in which the ARP traffic is permitted.
• MAC Address: User MAC address of the entry.
• IP Address: User IP address of the entry.
• Auto-refresh: Check the auto-refresh box to set the unit to refresh information automatically.
• Icons, upper right (Refresh, |<<, >>): Click Refresh to refresh the Dynamic ARP Inspection Table manually. Press |<< or >> to
scroll to the next entry on the table.
LPB2810A
