Chapter 3: Configuration
3.7.4 Status
This section describes how to display the MLD Snooping Status.
Web Interface
To display the MLD Snooping Status in the Web interface:
1. Click Configuration, MLD Snooping, Status
2. If you want to auto-refresh the information, check “Auto-refresh”
3. Click “Refresh“ to refresh the MLD Snooping Status information.
4. Click “Clear“ to clear the MLD Snooping Status window.

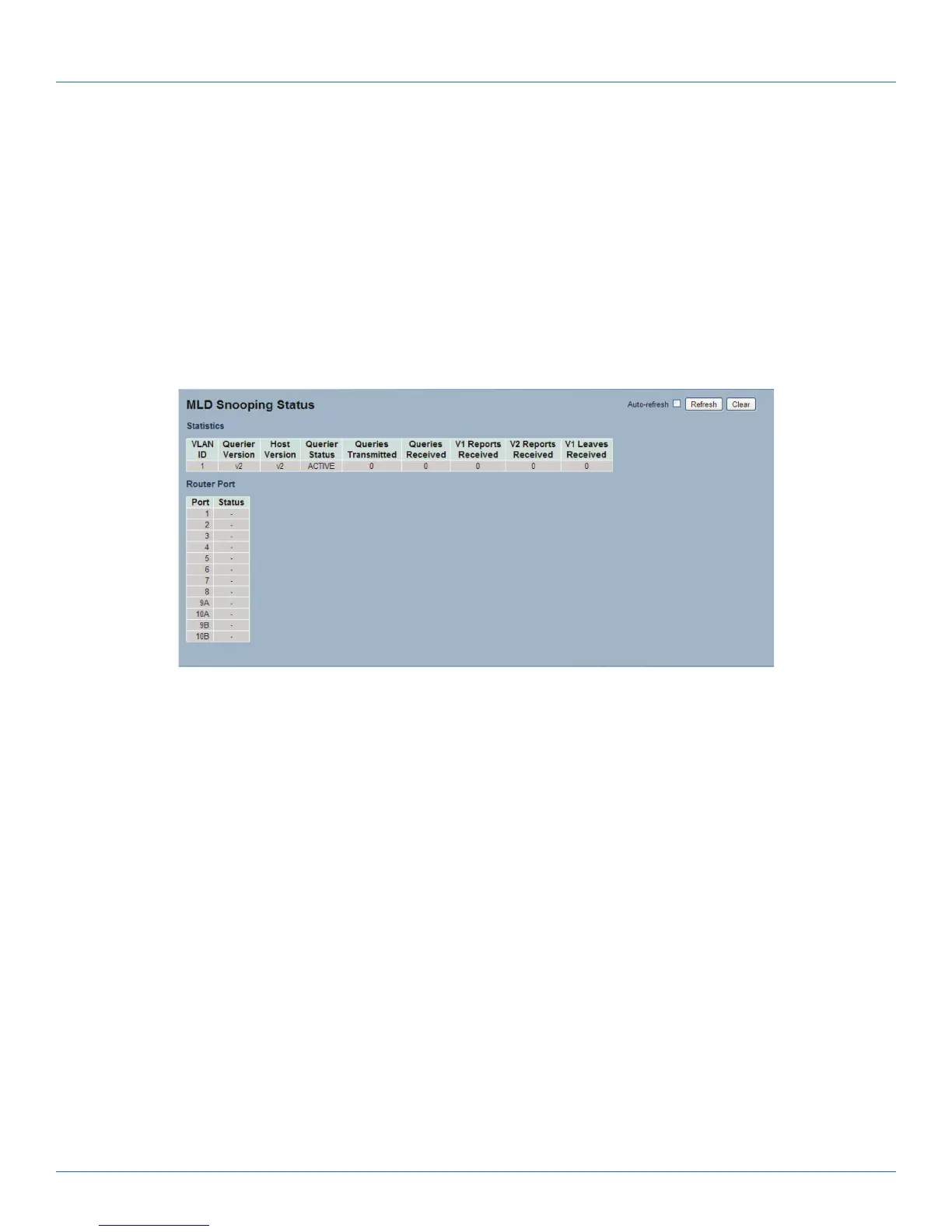

Figure 3-37. The MLD Snooping Status screen.
Parameter Description
• VLAN ID: The VLAN ID of the entry.
• Querier Version: The current working Querier Version.
• Host Version: The current working Host Version.
• Querier Status: Shows whether the Querier status is “ACTIVE“ or “IDLE“.
• Queries Transmitted: The number of Queries transmitted.
• Queries Received: The number of Queries received.
• V1 Reports Received: The number of V1 Reports received.
• V2 Reports Received: The number of V2 Reports received.
• V1 Leaves Received: The number of V1 Leaves received.
• Auto-refresh: To set the unit to auto-refresh the information, check the “auto-refresh“ box.
• Icons, upper right of screen (Refresh, <<, >> ): Click Refresh to refresh the MLD Group Status manually. Click the arrows to
navigate to the next page or entry.
