Page 83
Chapter 3: Configuration

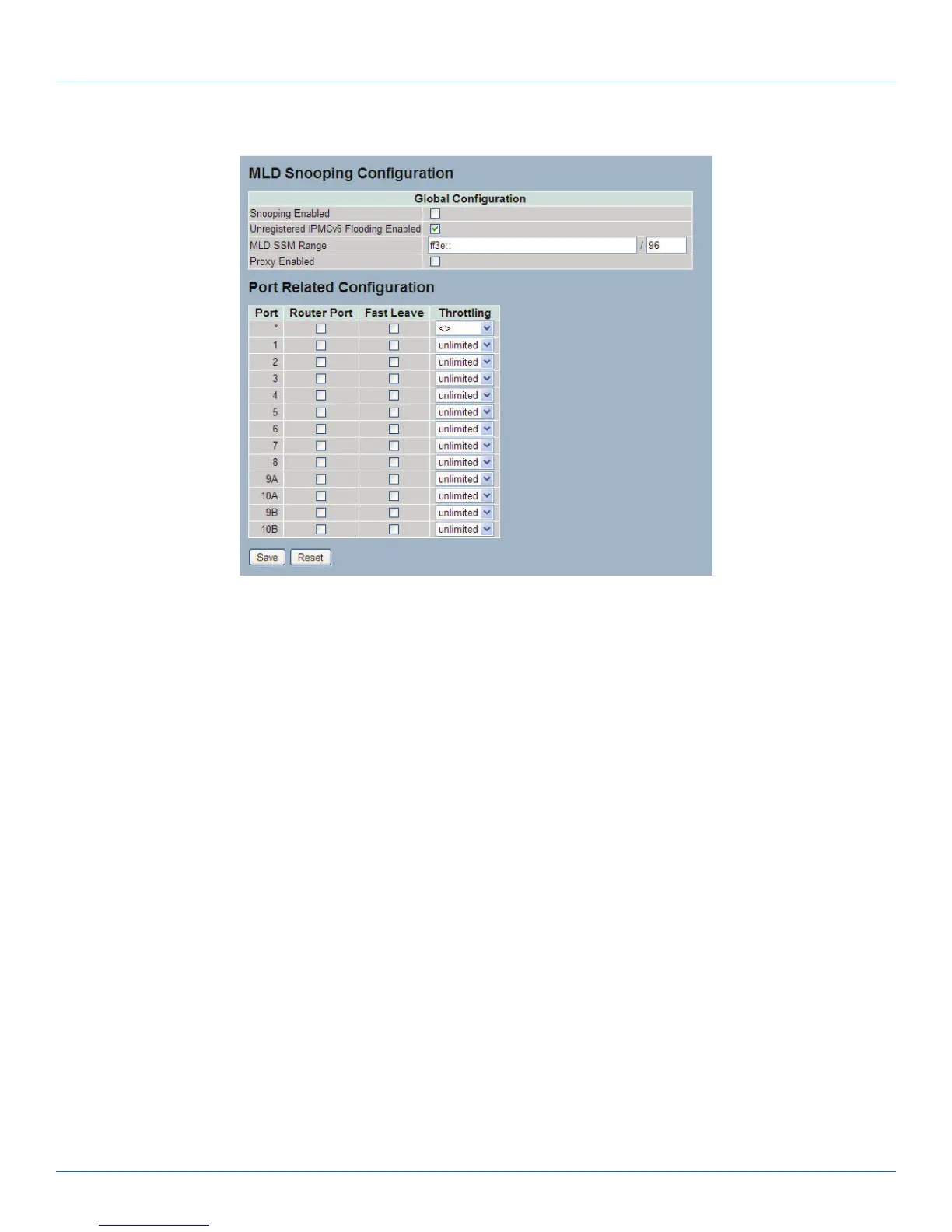

Figure 3-34. The MLD Snooping Basic Configuration screen.
Parameter Description
• Snooping Enabled: Enables the Global MLD Snooping.
• Unregistered IPMCv6 Flooding Enabled: Enable unregistered IPMCv6 traffic flooding. Please note that disabling unregistered
IPMCv6 traffic flooding may lead to failure of Neighbor Discovery.
• MLD SSM Range: SSM (Source-Specific Multicast) Range allows the SSM-aware hosts and routers run the SSM service model
for the groups in the address (Using IPv6 Address) range.
• Proxy Enabled: Enable MLD Proxy. This feature can be used to avoid forwarding unnecessary join and leave messages to the
router side.
• Port: The Port index what you enable or disable the MLD Snooping function.
• Router Port: Specify which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the
Layer 3 multicast device or MLD querier. If an aggregation member port is selected as a router port, the whole aggregation will
act as a router port.
• Fast Leave: To evoke to enable the fast leave on the port.
• Throttling: Enable to limit the number of multicast groups to which a switch port can belong.
• Buttons:
- Save: Click to save changes.
- Reset: Click to undo any changes made locally and revert to previously saved values.
LPB2810A
