Mini Converter SDI to Analog 4K
10

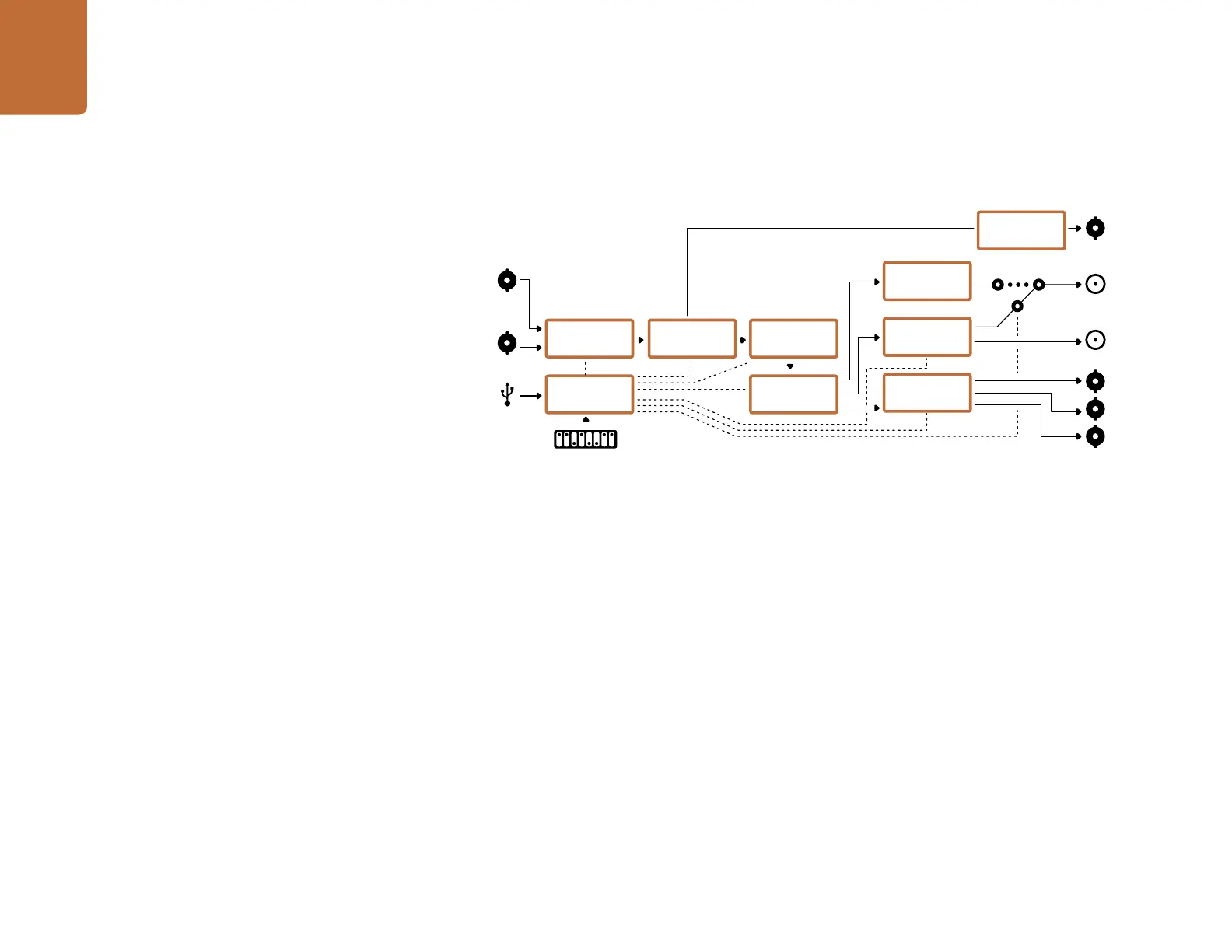

Mini Converter SDI to Analog 4K Block Diagram
Redundant
Input Automatic
Change Over
Input automatically
detects between
SD, HD and Ultra HD
Analog or AES/EBU
Audio Out Switch
Component output can switch
to S-Video and composite
Right Analog Out
Left Analog Out
or AES/EBU Out
USB
Mini Switches
Loop SDI
Out
Equalizer,
Re-Clocker and
10 bit De-Serializer
Central
Processor and
Firmware
Y
R-Y
B-Y
SDI In
Alt SDI In
10 bit HD to
SD Down
Converter
SDI Audio
De-Embedder
AES/EBU
Audio Formatter
Audio Digital to
Analog with
Balanced Output
12 Bit Digital to
Analog SD/HD
Video Converter
Automatic
SD/HD/Ultra HD
Cable Driver
