Mini Converter SDI to Analog 4K
9
Mini Switch Settings Example:
Experiment with the mini switches by setting your Blackmagic Mini Converter to output high definition
component video and analog audio channels 1 and 2 by setting switches 8, 5, 4, 3 and 2 to the OFF position

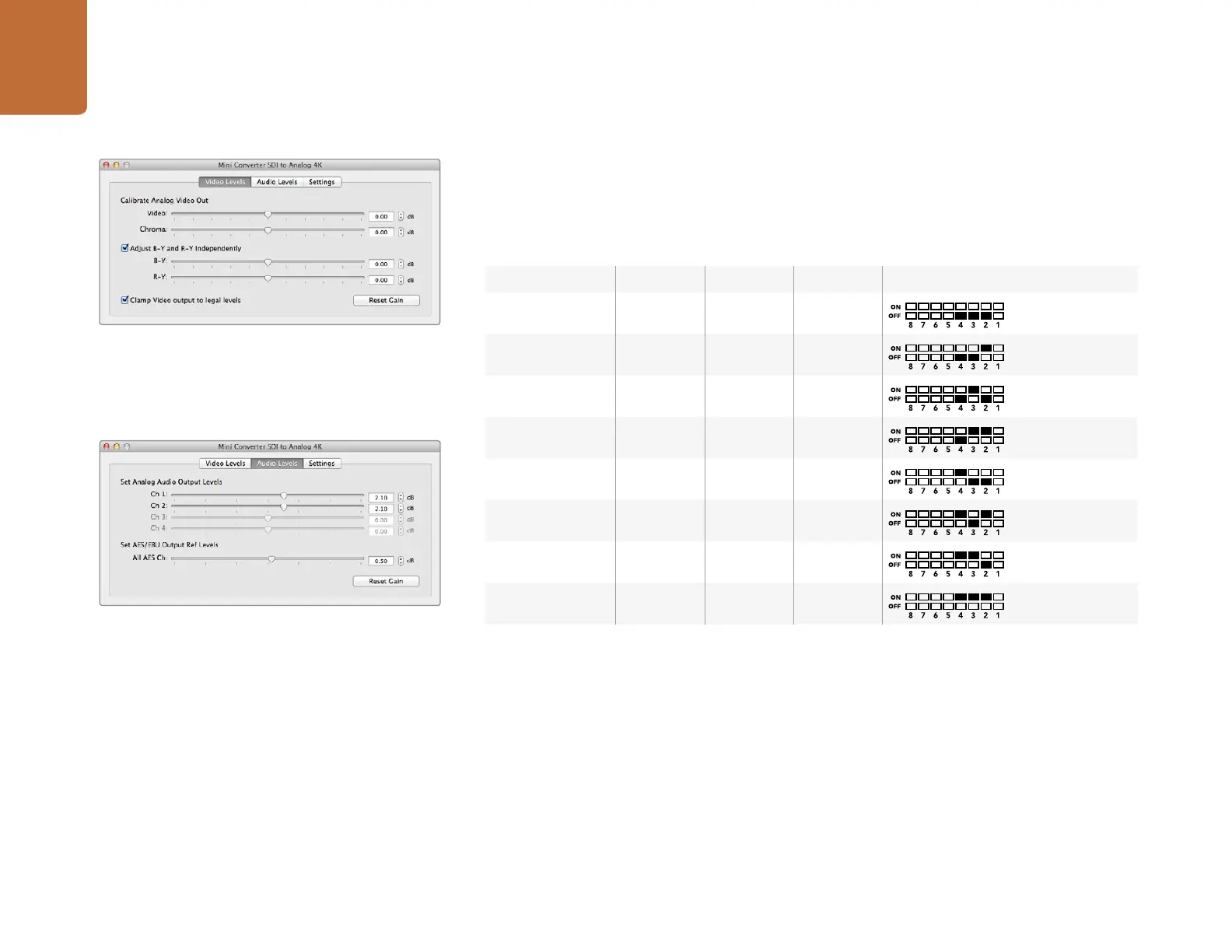

SDI Audio Selection Table
Blackmagic Converter Utility Settings
The Converter Utility software complements your mini switch settings by providing supplementary
adjustment options.
The Video Levels pane lets you adjust the analog video luminance and chroma levels, and the B-Y and
R-Y component chroma levels independently.
The Audio Levels pane lets you adjust audio levels for your selected analog channels or AES/EBU audio
reference levels.
The Settings pane lets you select down conversion aspect ratio options. When your converter is not
connected to Converter Utility software, the mini switches take priority. You will need to set mini switch
1 if you want to retain your aspect ratio settings after disconnecting from the Converter Utility software.
Audio Channels Switch 4 Switch 3 Switch 2 Switch Diagram
1 and 2 OFF OFF OFF
3 and 4 OFF OFF ON
5 and 6 OFF ON OFF
7 and 8 OFF ON ON
9 and 10 ON OFF OFF
11 and 12 ON OFF ON
13 and 14 ON ON OFF
15 and 16 ON ON ON
Adjust analog video levels using Blackmagic Converter Utility.
The Clamp Video output to legal levels setting is checked
by default. This setting ensures your analog output is a true
representation of the SDI input. Adjusting video levels may
result in illegal colors.
Adjust audio levels using Blackmagic Converter Utility.
