Mini Converter Sync Generator
42
Mini Switches

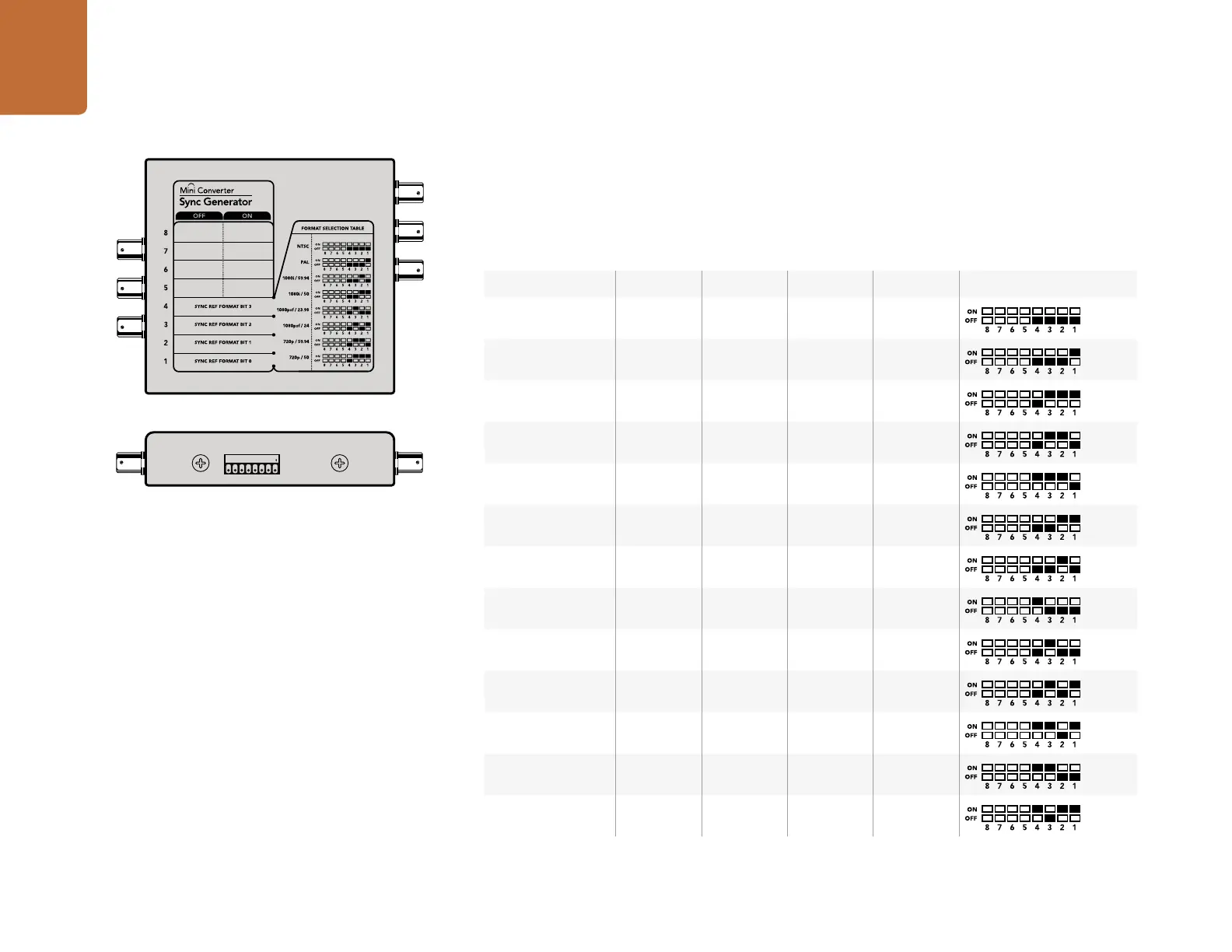

Mini Converter Sync Generator’s mini switches provide the following settings:
Switch 4 - SYNC REF FORMAT BIT 3
Switches 4, 3, 2 and 1 are grouped together to select from many reference video formats, including:
1
ON
2 3 4 5 6 7 8
Video Format Switch 4 Switch 3 Switch 2 Switch 1 Switch Diagram
NTSC OFF OFF OFF OFF
PAL OFF OFF OFF ON
720p50 OFF ON ON ON
720p59.94 OFF ON ON OFF
720p60 ON ON ON OFF
1080i50 OFF OFF ON ON
1080i59.94 OFF OFF ON OFF
1080i60 ON OFF OFF OFF
1080PsF23.98 OFF ON OFF OFF
1080PsF24 OFF ON OFF ON
1080p23.98 ON ON OFF ON
1080p24 ON ON OFF OFF
1080p25 ON OFF ON ON
Change your converter's internal settings by adjusting the
mini switches using the tip of a pen.
