Blackmagicdesign Mini Converter - Sync Ref Format Settings

Mini Converter Sync Generator
43
Video Format Switch 4 Switch 3 Switch 2 Switch 1 Switch Diagram
1080p29.97 ON OFF ON OFF
1080p30 ON OFF OFF ON
Switch 3 - Sync Ref Format Bit 2
See switch 4 description.
Switch 2 - Sync Ref Format Bit 1
See switch 4 description.
Switch 1 - Sync Ref Format Bit 0
See switch 4 description.

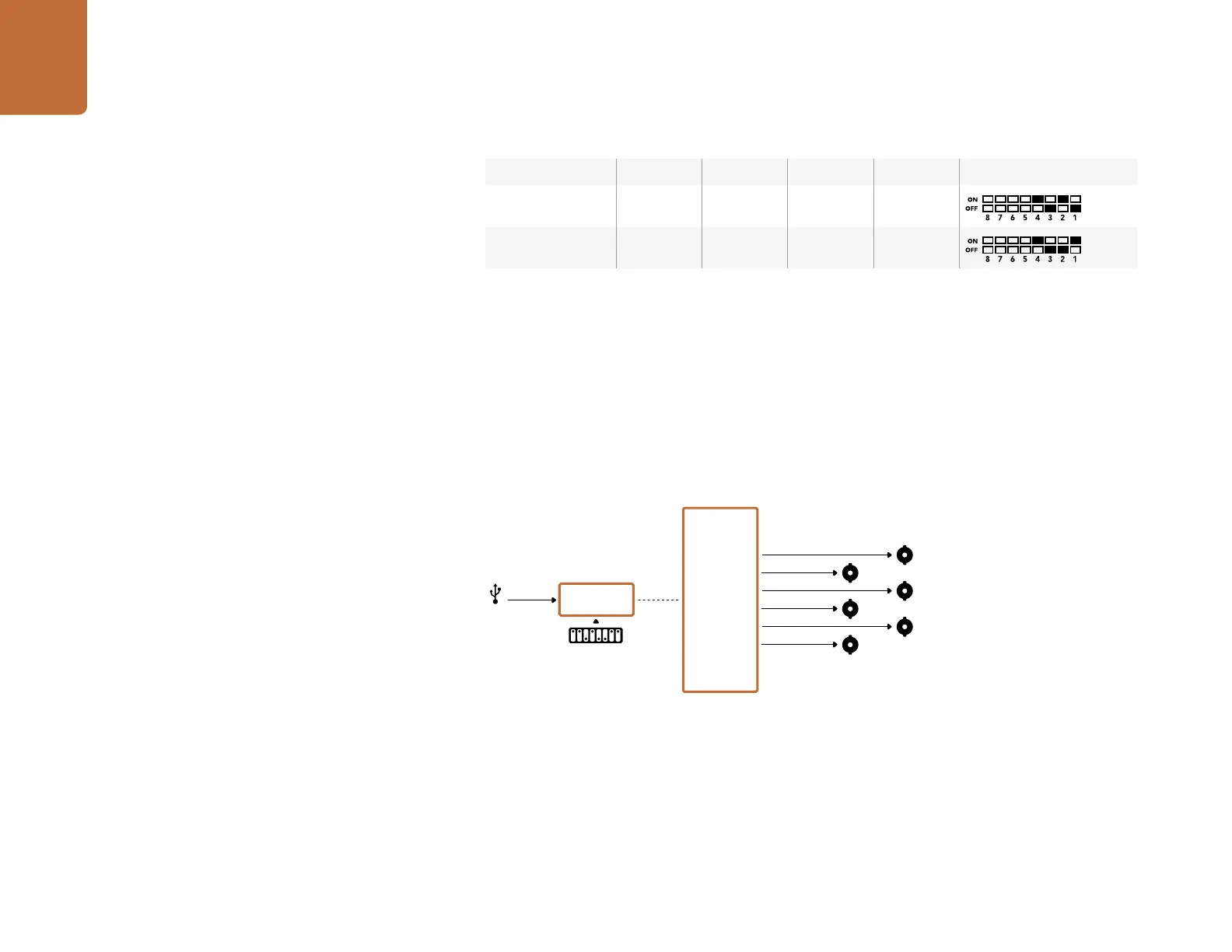

Mini Converter Sync Generator Block Diagram
Central
Processor and
Firmware
USB
Mini Switches
Crystal Locked
Black Burst and
HD Tri-Sync
Generator
Ref Out
Ref Out
Ref Out
Ref Out
Ref Out
Ref Out
