Blodgett DFG-100 - Smarttouch Touchscreen Control

30
Operation
SmartTouch Touchscreen Control
COMPONENT DESCRIPTION

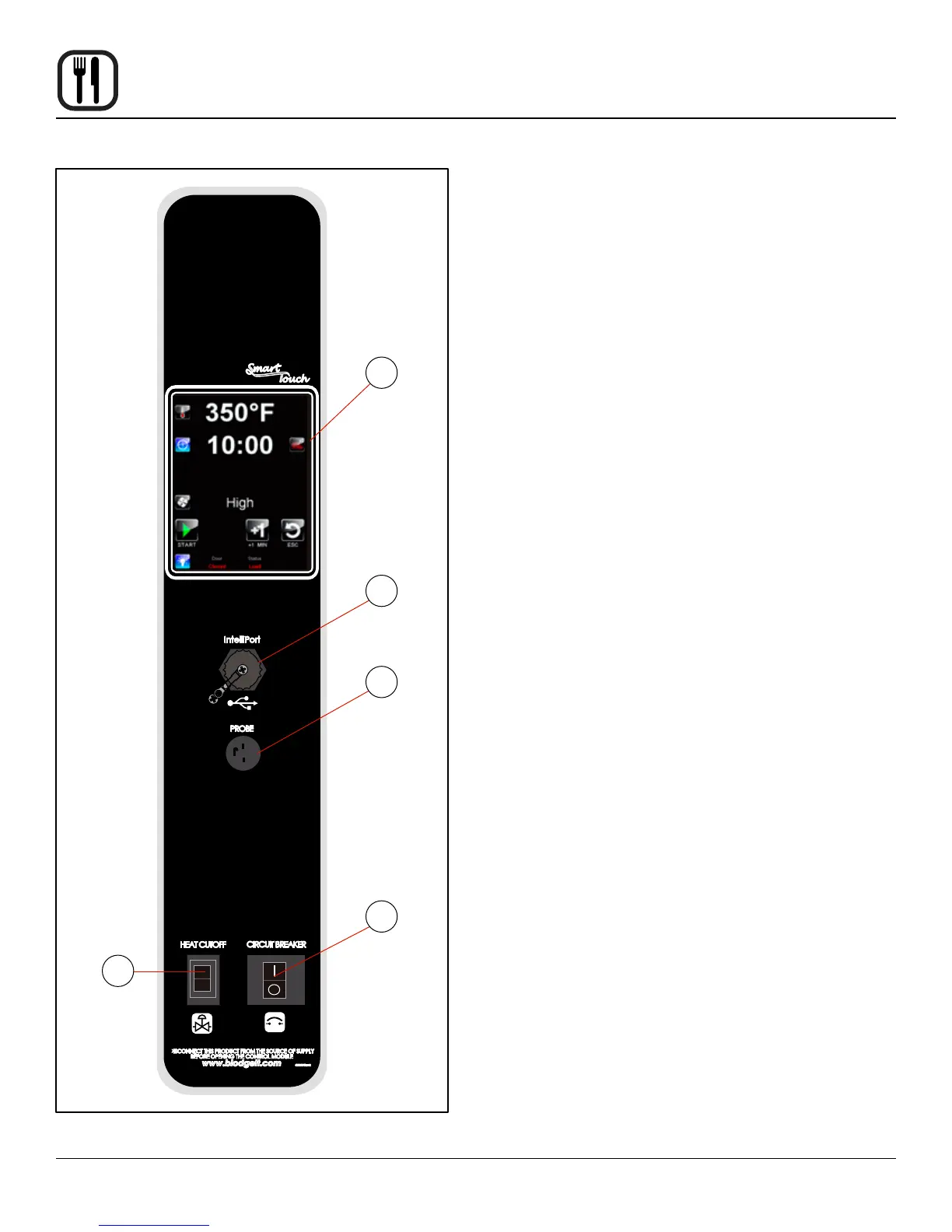

1. DISPLAY - displays controller related information.
2. USB PORT and COVER - Use to transfer recipes and
data to/from the control
3. CORE PROBE CONNECTION - plug core tempera-
ture probe in here when using probe cooking
4. OVEN POWER SWITCH - controls power to the oven.
5. GAS ON/OFF SWITCH - press to shut off gas to the
oven.
DFG
1
2
3
4
5
Figure 15
