5
Oven Assembly
Installation

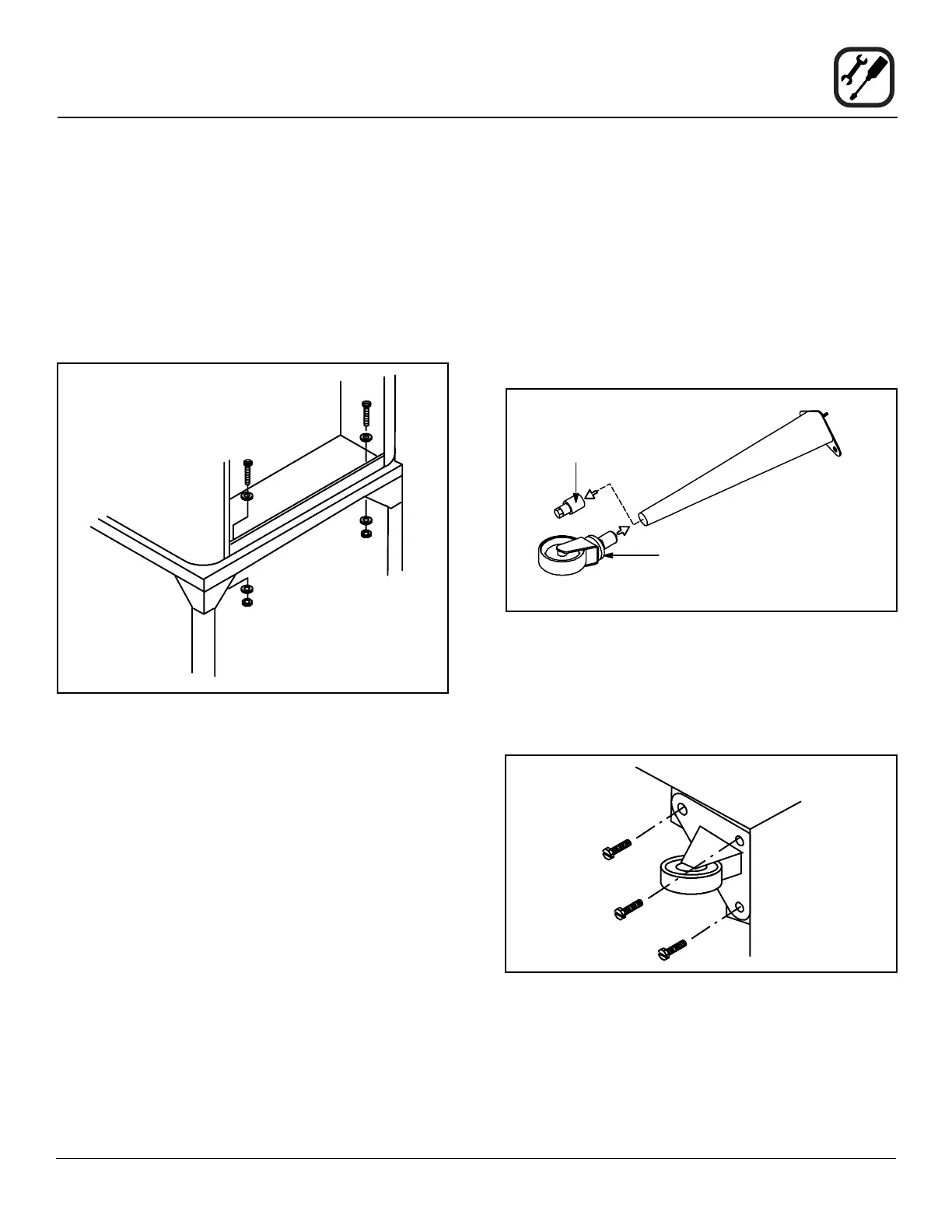

ATTACHMENT TO STAND
1. Set the oven on the stand. Center it to the frame.
2. Remove the oven’s right side panel.
3. Align the holes in the oven bottom with the holes in
the stand.
4. Attach with bolts,washers and nuts as shown.
5. Replace the side panel.
Figure 3
CASTER INSTALLATION
NOTE: Install casters with locking devices on the front.
Install non-locking casters on the rear.
Casters for Single and Double Stacked Ovens
1. Attach the legs.
2. Loosen the lock nut on each adjustable leg foot. Re-
move the foot assemblies.
3. Insert one caster into each leg as shown. Tighten the
lock nuts to secure the casters.
Adjustable
Leg Foot
Caster Assembly
64 cm legs shown
Figure 4
Low Prole Casters for Double Stacked Ovens
1. Align the three holes in each caster assembly plate
with those in the oven bottom. Attach with three 1/2”
bolts.
Figure 5
