Bluetti ACB300 - Wrong Connection

34
L1 N PE
PE
G(PE)
L2
W(N)
L1
X(L1)
N
Y(L2)
L2 N PE
AC Input
Cable(L14-30)

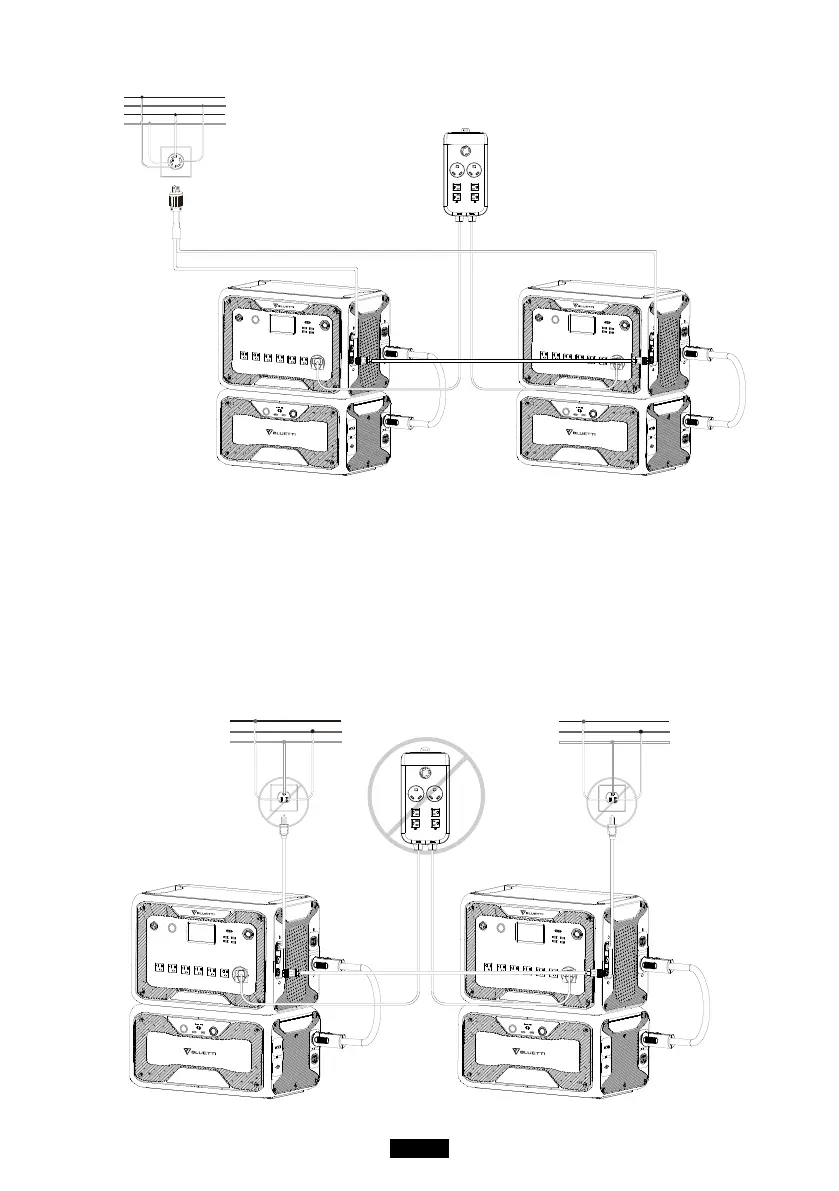

WRONG CONNECTION
It`s forbidden to charge AC300+B300 through the original AC charging
cable in Split Phase System, please use Fusion AC Input Cable(Optional
Purchase) to charge the two set of the AC300+B300 in Split Phase
System.
Wrong Connection will damage the power station and your warranty will
be invalid, BLUETTI will not take responsible for the damage caused by
personal negligence or wrong operation.
PE
G(PE)
W(N)
L1
X(L1)
N
PE
G(PE)
W(N)
L1
X(L1)
N
