Detailed assembly instructions
26
Detailed assembly instructions
Frame preparation

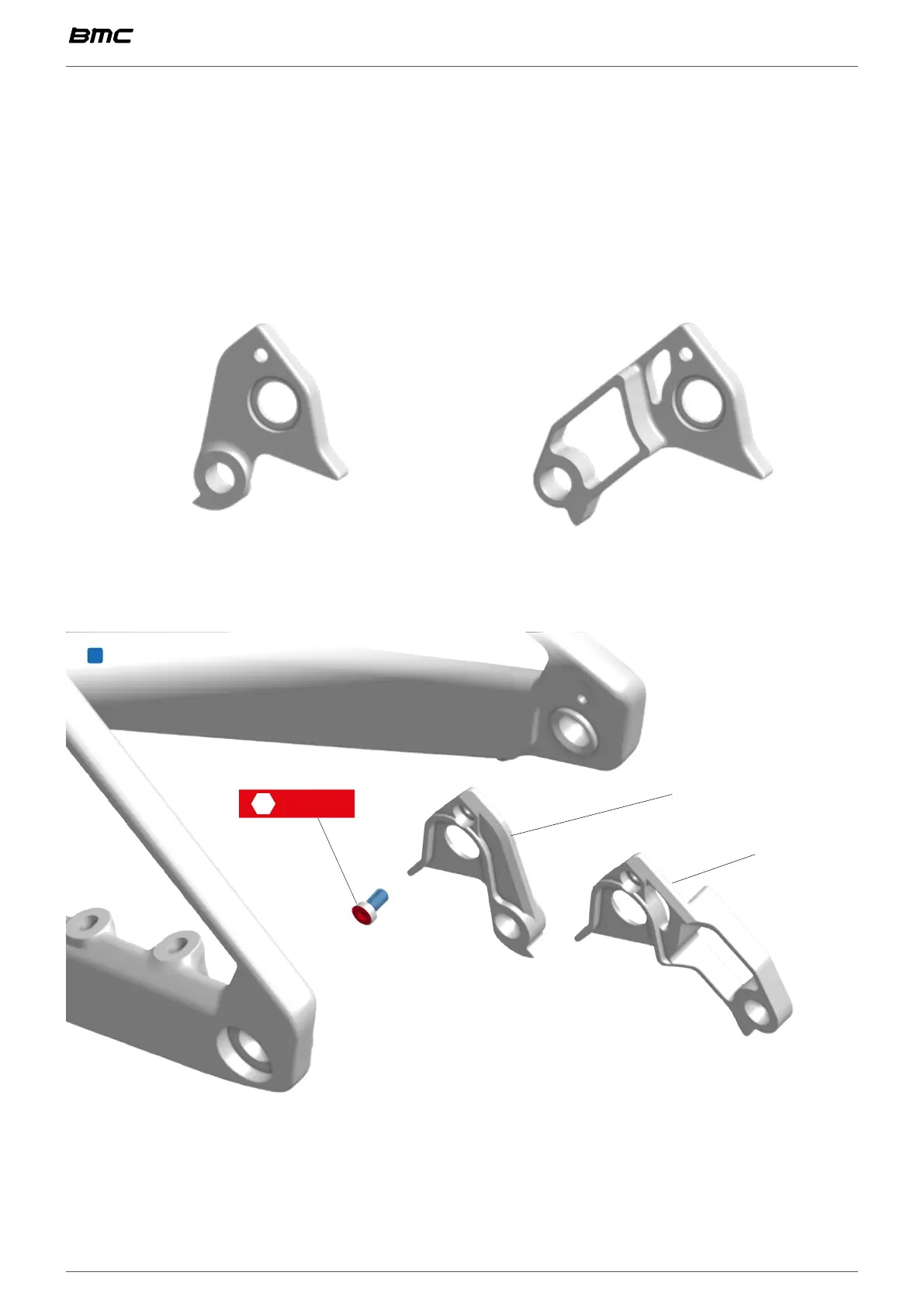

Rear derailleur hanger installation
• Select the right model of hanger depending on your groupset, and the rear derailleur design.
You can choose between the standard dropout hanger or the direct mount dropout hanger. The
Direct Mount hanger is usually specified for Shimano’s latest generation of derailleurs.
Standard Direct mount
• Position the selected dropout hanger on the frame dropout and bolt on the M4x8 bolt using a hex
3mm.
• Tighten to 3 Nm.
Standard
Direct Mount
3 3 Nm
Threadlocker
