Detailed assembly instructions
42
Shifting cables assembly
Front derailleur shifting cable
• Push the front shifting hose from the back to the front inserting it in the seat tube opening.
• Guide the hose through the downtube in-molded cable routing channel and let the hose exit at the
front of the bike.
Rear derailleur shifting cable
• Push the rear shifting hose from the back to the front inserting it in the right chainstay opening.
• Guide the hose through the downtube in-molded cable routing channel and let the hose exit at the
front of the bike.

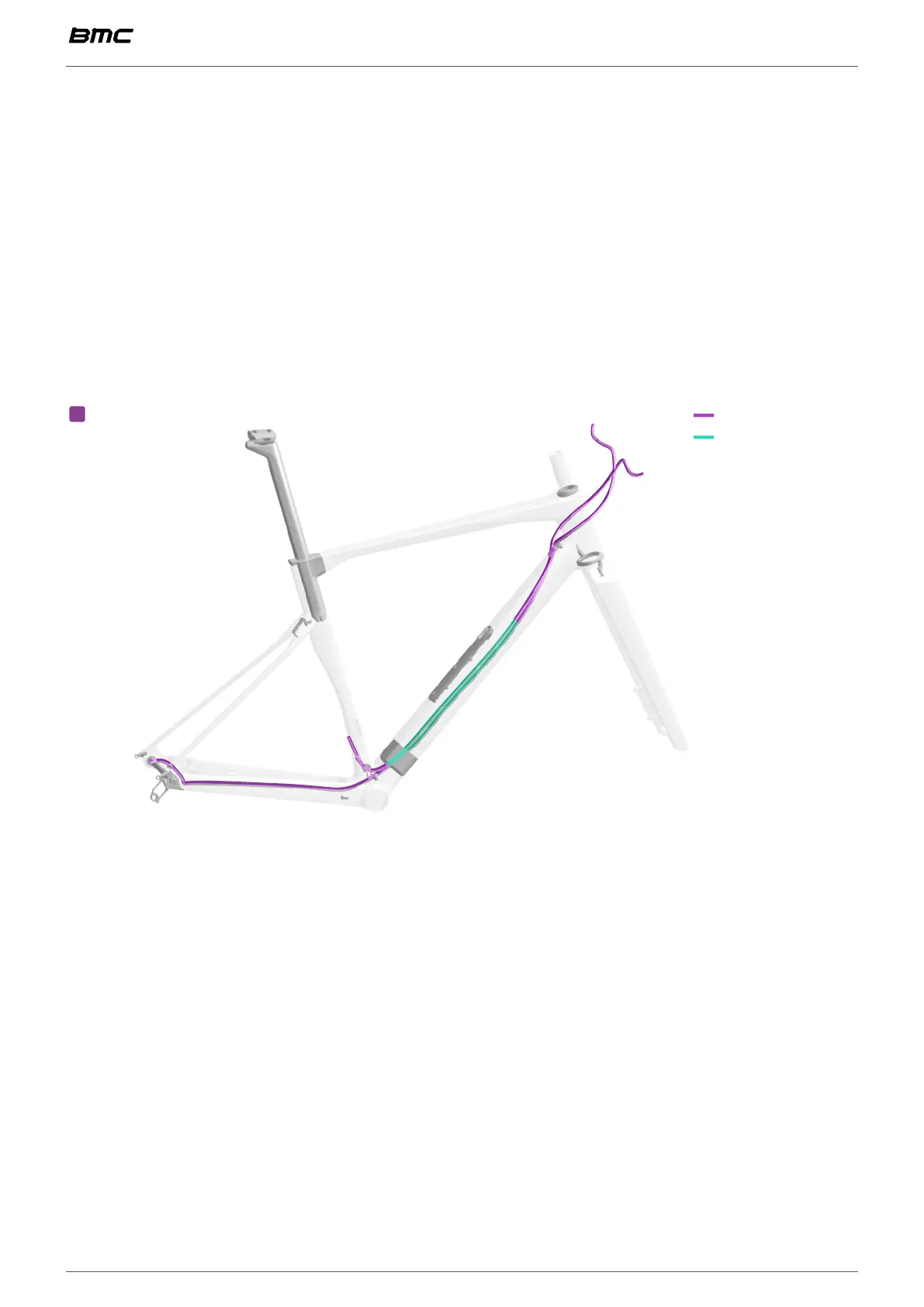

traditional routing
internal channel
Route chainstay and downtube
