Detailed assembly instructions
36
Brake calipers assembly
Rear brake
The rear brake must be installed either:
• Directly on the frame brake mount for 140mm rotor compatibility
• Using a 20mm bracket for 160mm rotor compatibility
• Select the rear brake adapter and bolts. Refer to brake caliper’s manufacturer to determine:
• The correct adapter plate based on your rotor size
• The correct bolt length and the appropriate torque value.
• Push the rear brake hose from the back to the front inserting it in the left chainstay opening.
• Guide the hose through the downtube in-molded cable routing channel and let the hose exit at the
front of the bike. 3 options are possible depending on your configuration:
• Roadmachine 01 : fully integrated only
• Roadmachine option A: fully integrated
• Roadmachine option B: external at front

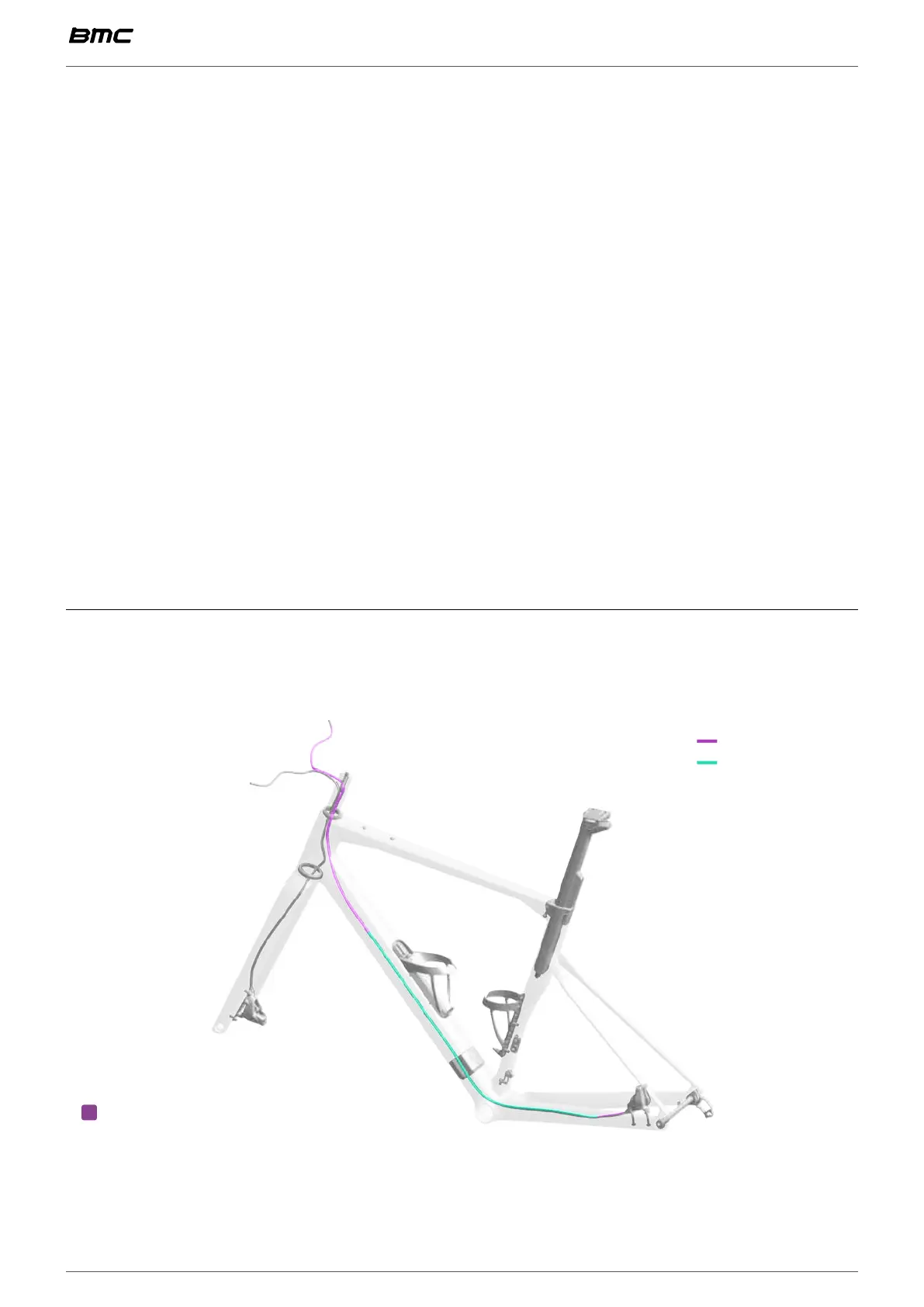

Roadmachine 01 : ICS fully integrated only
Route chainstay and downtube
traditional routing
internal channel
