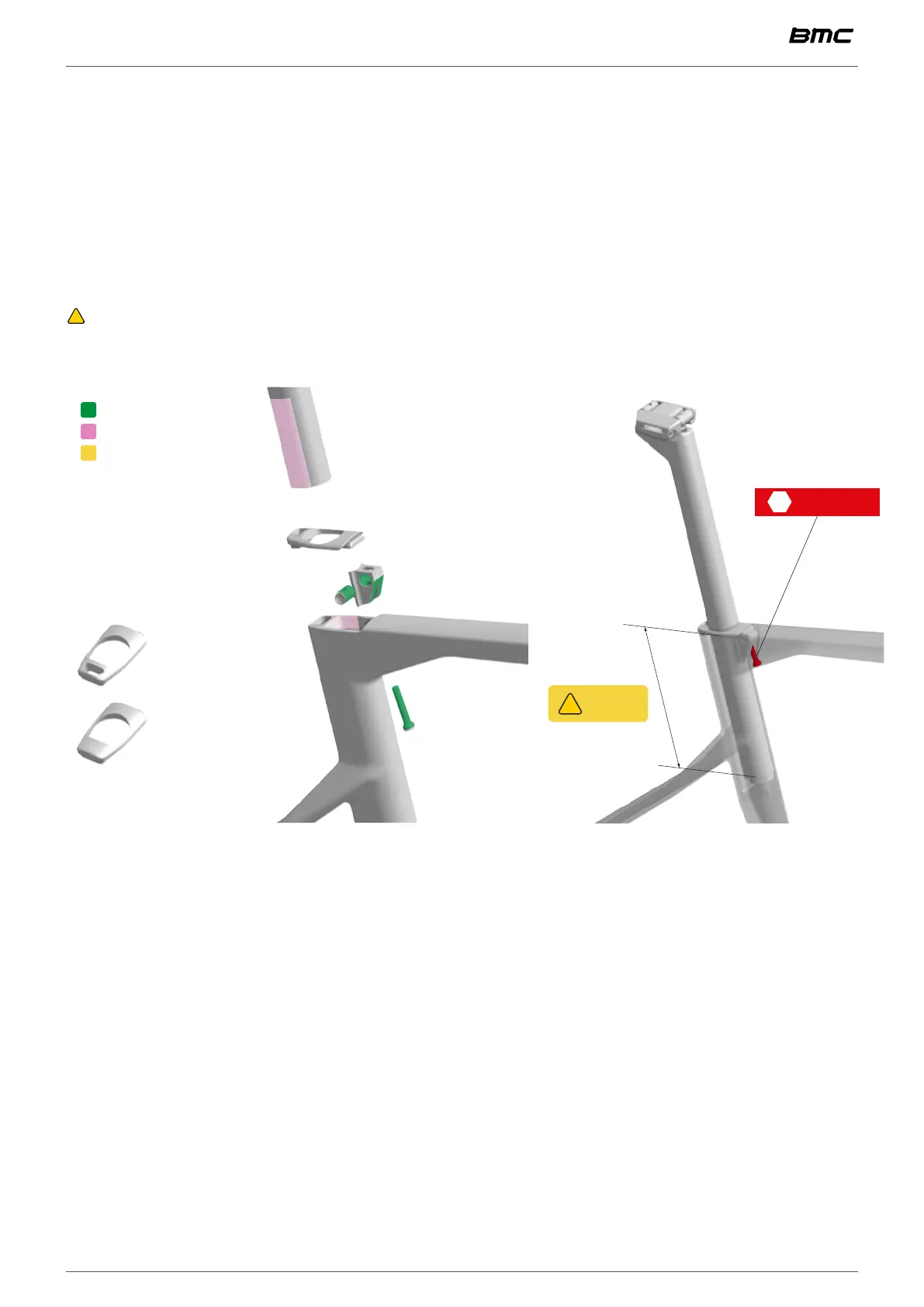

Frame seatpost clamp installation
• Install the seat post rubber seal of your choice onto the seat post (open for use with the rear light
or closed for use without the rear light).
• Apply a thin layer of friction paste onto the back and the side surfaces of the seatpost and inside
the seat tube.
• Grease the M5x32, the barrel nut and the back side of the wedge.
• Install them into the frame cavity without tightening.
• Slide the seatpost in and adjust it at your desired saddle height.
WARNING: Remember to respect the minimum insertion of 80mm. Not respecting the minimum
insertion could result in frame or seatpost damage, breakage and injury.
4 5 Nm
80mm
min
!
with
BMC Rear Light
without
rear light
Grease
Friction paste
Measure
• Tighten the M5x32 bolt to 5 Nm using a hex 4mm wrench.
