Detailed assembly instructions
34

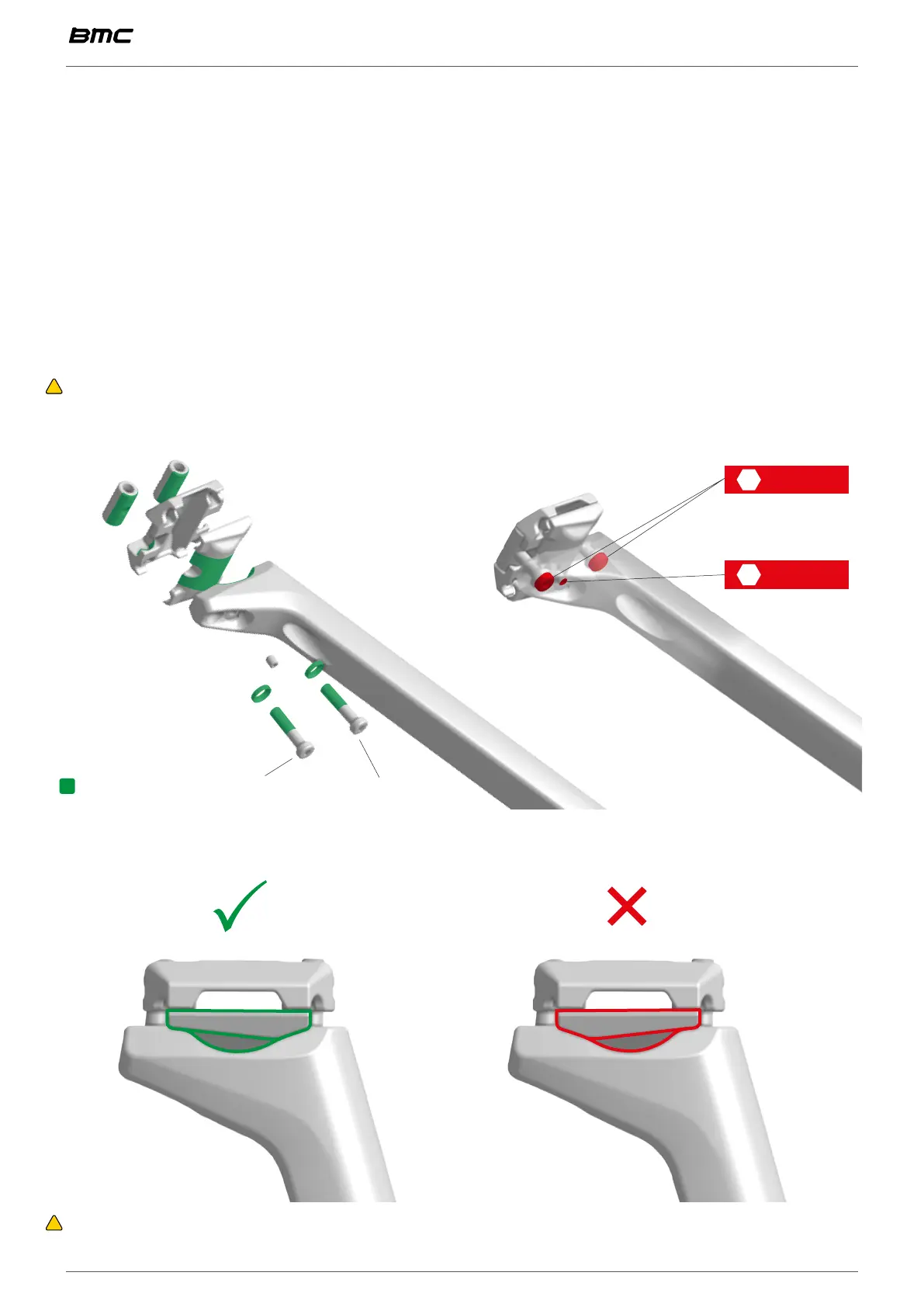

Saddle clamp installation
• Pre-install the the lower clamp, the upper clamp, the barrel nuts and finally pre-install the 2 M6 bolts
with their washer:
• long M6x35 at the front.
• short M6x30 at the rear.
• Install your saddle by clamping the rails between the 2 clamps and adjust the saddle setback and tilt
before clamping both the M6 bolts.
• Tighten to 6 Nm using a hex 4mm.
• Install your fender or place the headless M5x6mm bolt into the thread to protect the thread.
• Tighten to 2 Nm using a hex 2.5mm.
WARNING: Always tighten to the correct torque. Not respecting this recommendation may result in
the saddle coming loose, losing control of the bike and falling.
Grease
M6x35mmM6x30mm
4 6 Nm
2. 2 Nm
WARNING: Always respect the orientation of the lower clamp as illustrated above.
