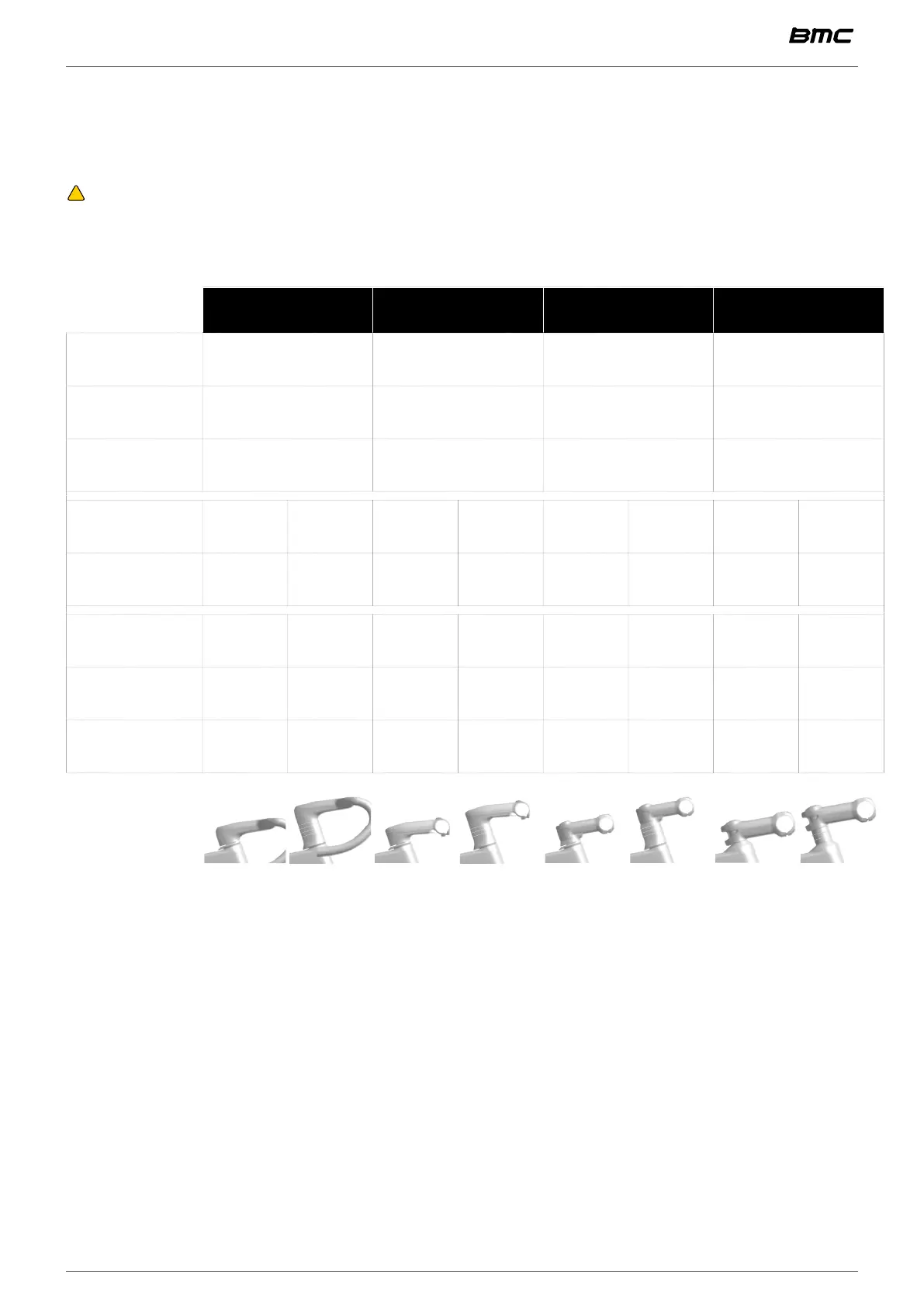

Minimum and maximum spacer stack
• Determine the stack based on the rider’s desired position.
!
WARNING: do not exceed the spacer height and spacer quantity (count) recommendation. Not
following these recommendations may result in steering issues resulting in losing control of the bike
and crashing.
ICS Carbon
cockpits
ICS Stems RSM01 stem and
ICS Core
RSM01 stem
(external cable)
Top cone #1 Low [or] #2 High #1 Low [or] #2 High #1 Low [or] #2 High #12 Round low
Spacer type ICS ICS ICS cylindrical
Spacer max
quantity
3 2 2 3
Stack options Lowest Highest Lowest Highest Lowest Highest Lowest Highest
Stack height 5mm 60mm 15mm 60mm 15mm 60mm 5mm 40mm
Stem transi-
tion spacer
10 10 10 10
Spacers 3x 10 2x 10 2x 10 3x 10
Top cone
#1 Low
(5mm)
#2 High
(30mm)
#1 Low
(5mm)
#2 High
(30mm)
#1 Low
(5mm)
#2 High
(30mm)
#1 Low
(5mm)
#12 Low
(5mm)
