Detailed assembly instructions
52

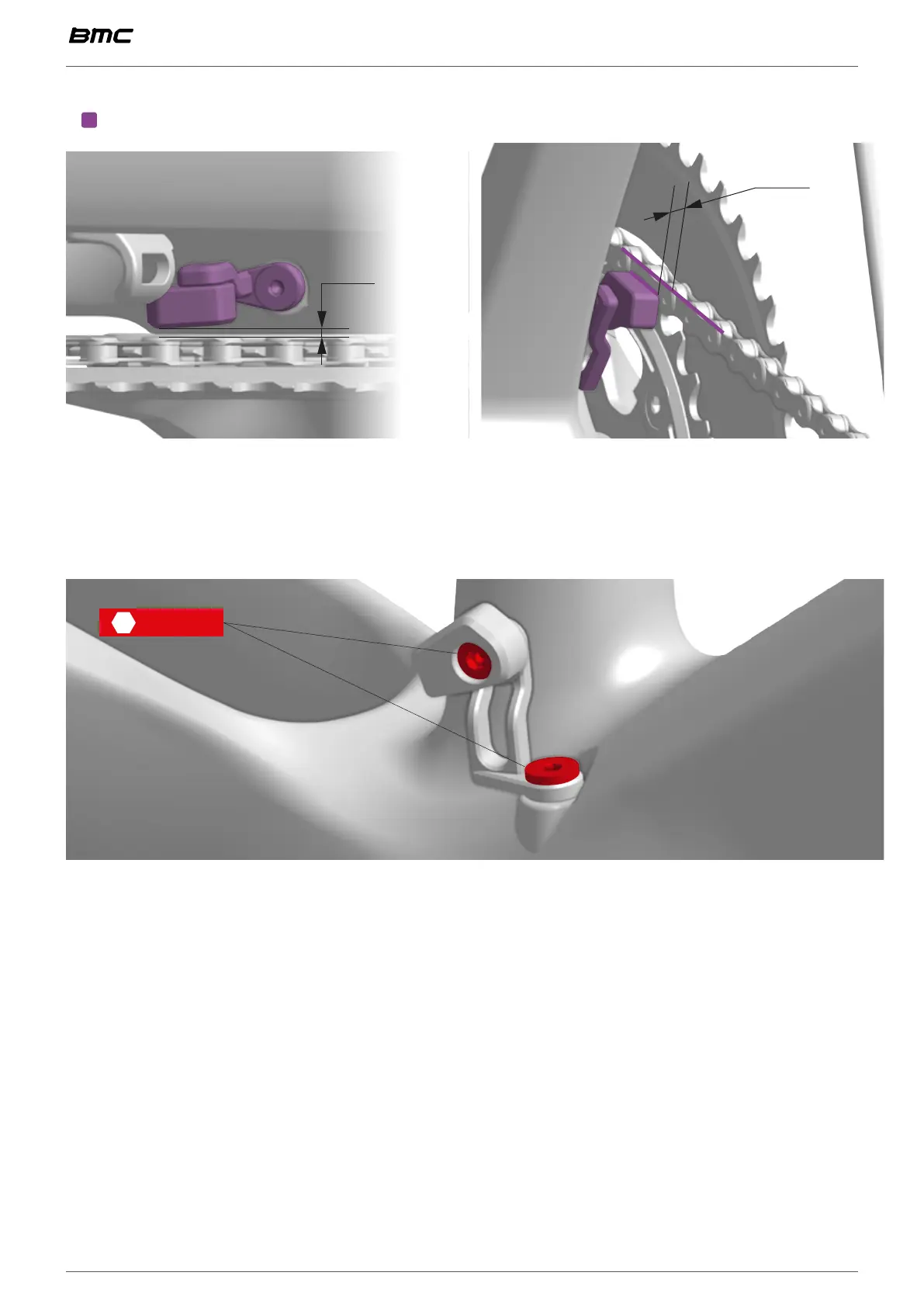

Adjust gap to >1mm
>1mm
>1mm
• In any drivetrain gear and chain position, keep at least 1mm between the chain and the chain
catcher.
3 3 Nm
• Tighten to 3 Nm using a hex 3mm wrench.
