Headset and Fork Installation
1. Note that the rear brake cable housing should be installed before installing the fork.
1. Apply grease on the bearings (N°3 and 4) and on the bearing seats of the frame. Place the bearings in the frame.
2. Apply grease on the fork shaft, and then slide the fork through the bearings and the head tube.
3. Slide the compression ring (N°2) over the fork shaft.
4. Apply grease on the fork hinge top part then slide the top cap (N°1) over the fork shaft and over the fork hinge.

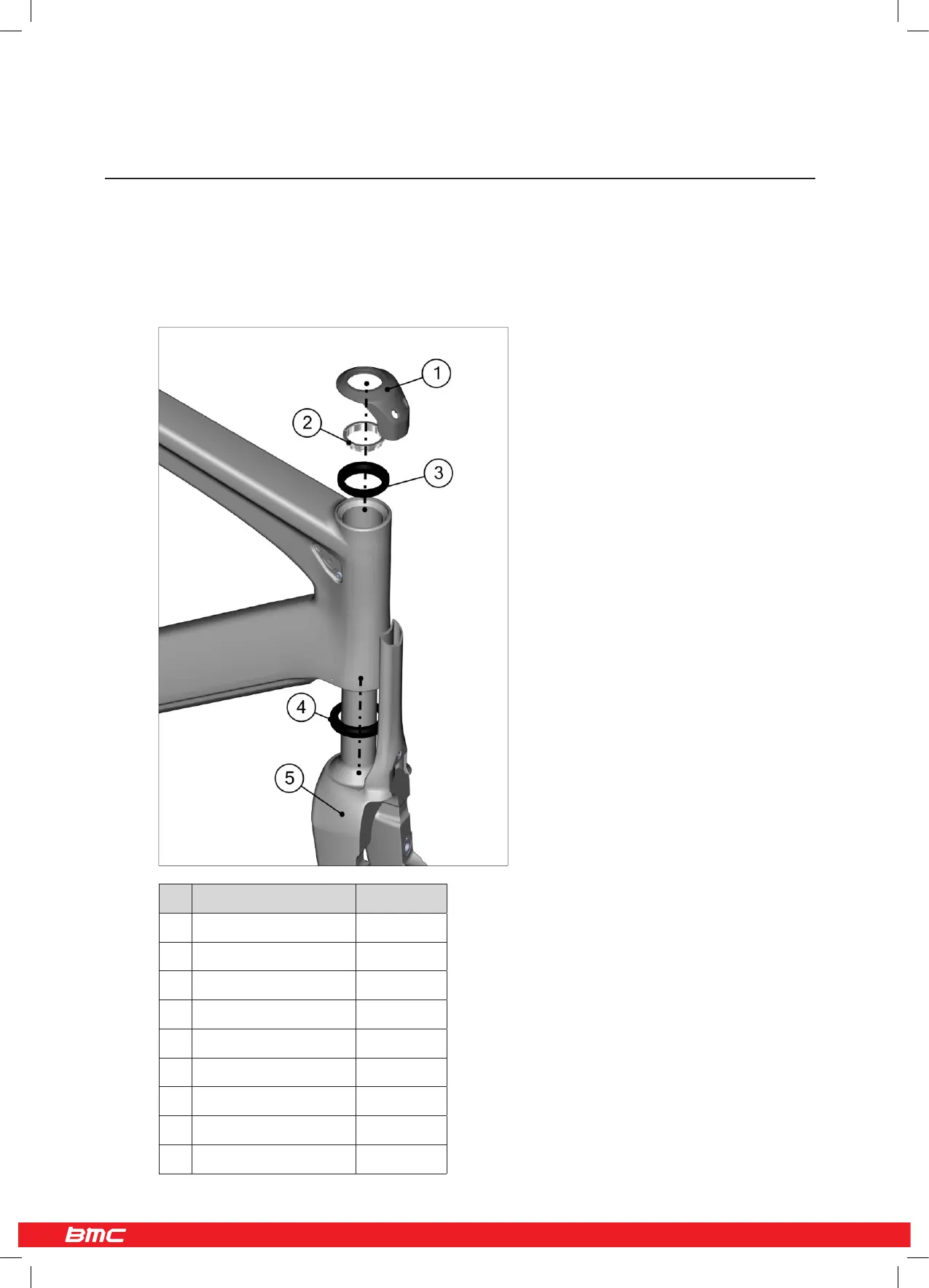

Description Part N°
Headset complete kit 212485
1 Top cap
2 Compression ring
3 Upper bearing
4 Lower bearing
5 Aero road fork “teamred” 212474
Aero road fork “flame” 212475
Aero road fork “white” 212476
Aero road fork “stealth” 212477
