1. Apply Loctite to the brake pivot thread and bolt it onto the fork.
2. Place the adjuster plate (N°2) into the brake arm (N°1) and screw in the M4 adjustment bolt (N°4).
3. Apply grease to the spring (N°3) and place it in the brake arm. The silver colored spring goes into the right arm.
The longest extension of the spring should point towards the fork.
4. Install the brake arm. Tighten the M5 bolt to 4.5Nm.

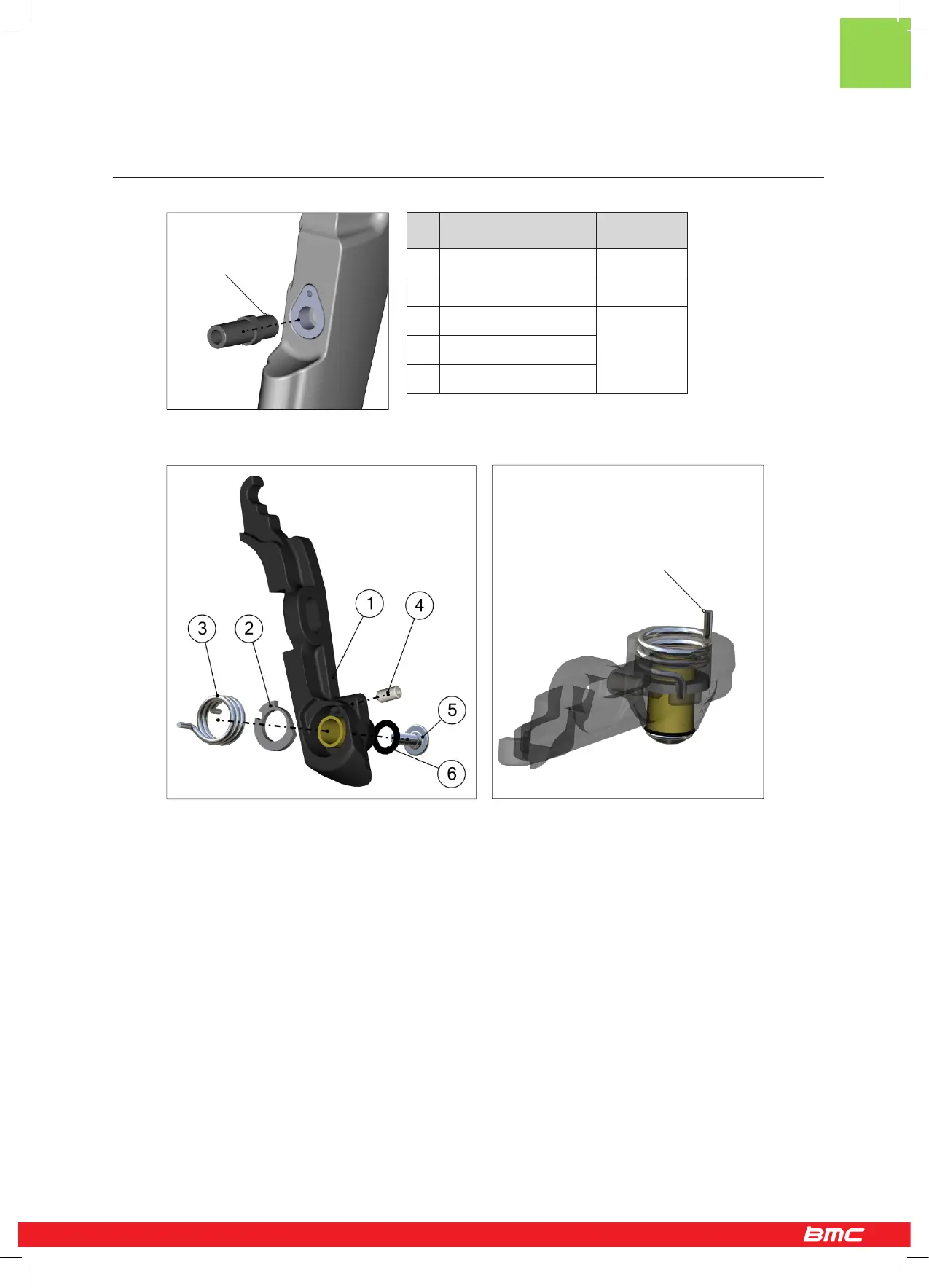

Front brake installation
Description Part N°
Front brake complete set 212495
1 Brake arm
2 Adjuster plate
3 Spring 212499
4 Adjuster bolt
Loctite
The longer end of the
spring goes into the fork
