BMC timemachine road - Brake Pad Configuration and Adjustment

• Depending on rim dimensions, the reach of the brake pads needs to be adjusted with spacers (7, 8, 9, 10).
You can use the table below as a guide.
• Note to only put the one washer (N°11) between brake arm and brake shoe bolt (N°12).
• Please refer to the wheel manufacturer instructions for brake pad specication.
13. Adjust the spring tension (M4 adjustment bolts) to achieve symmetrical pull of the brake arms.
Rim type Rim width Spacers per side (mm) Socket length
Zipp 303/404/808 26.5 0.5 10
23 2.5 10
22 3 10
21 3.5 12
Easton EC90 SL 20.5 3.7 12
Mavic Cosmic Carbone SL 19 4.2 12

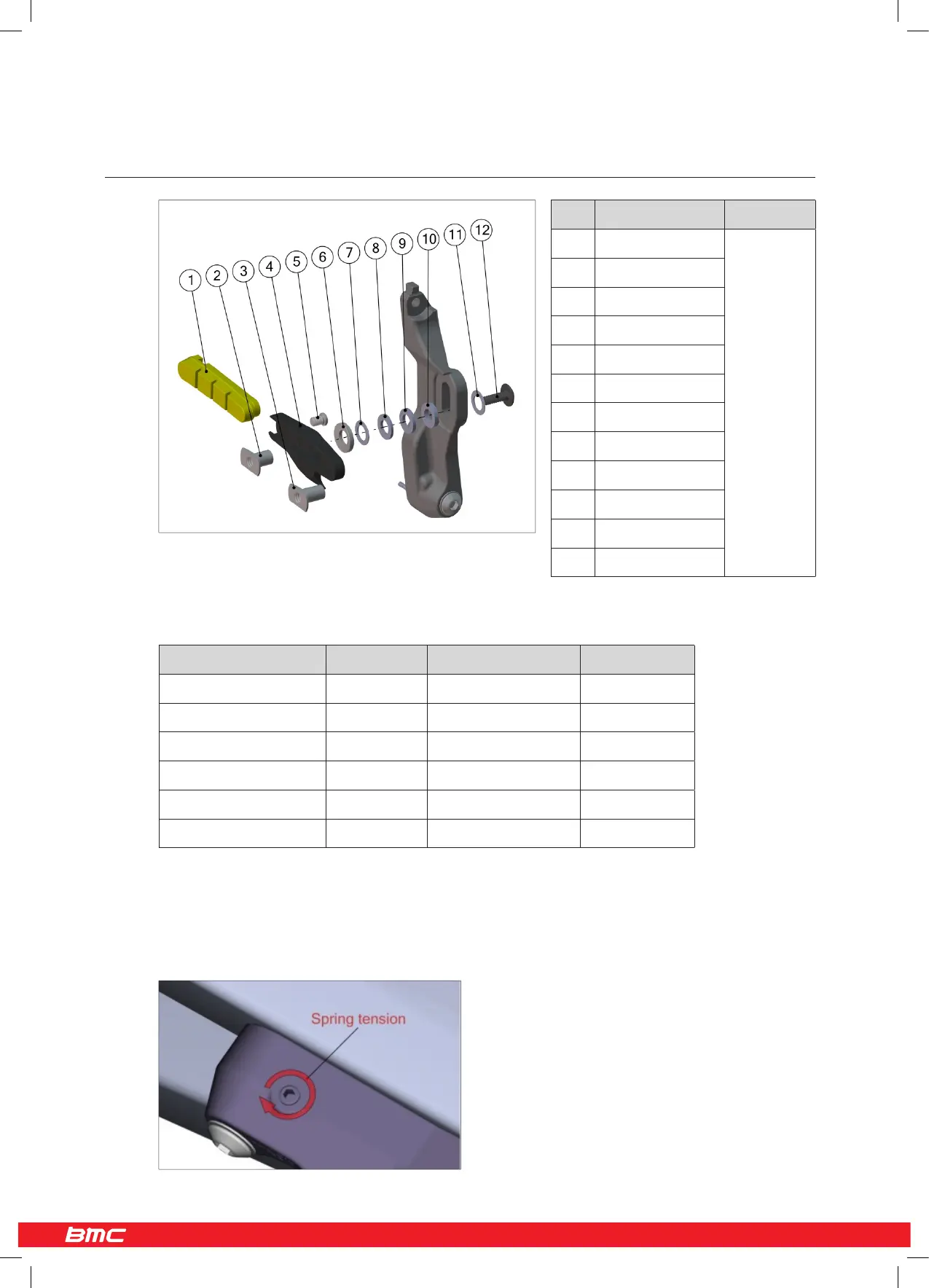

Brake pad configuration (front and rear)
POS Description Part N°
1 Brake pad
2 Socket 10mm
3 Socket 12mm Brake
4 Brake shoe shoe set:
5 Locker bolt 212498
6 Parabolic washer
7 Spacer 0.5mm
8 Spacer 1.2mm
9 Spacer 1.5mm
10 Spacer 2.0mm
11 Washer
12 Bolt M5 x 16
