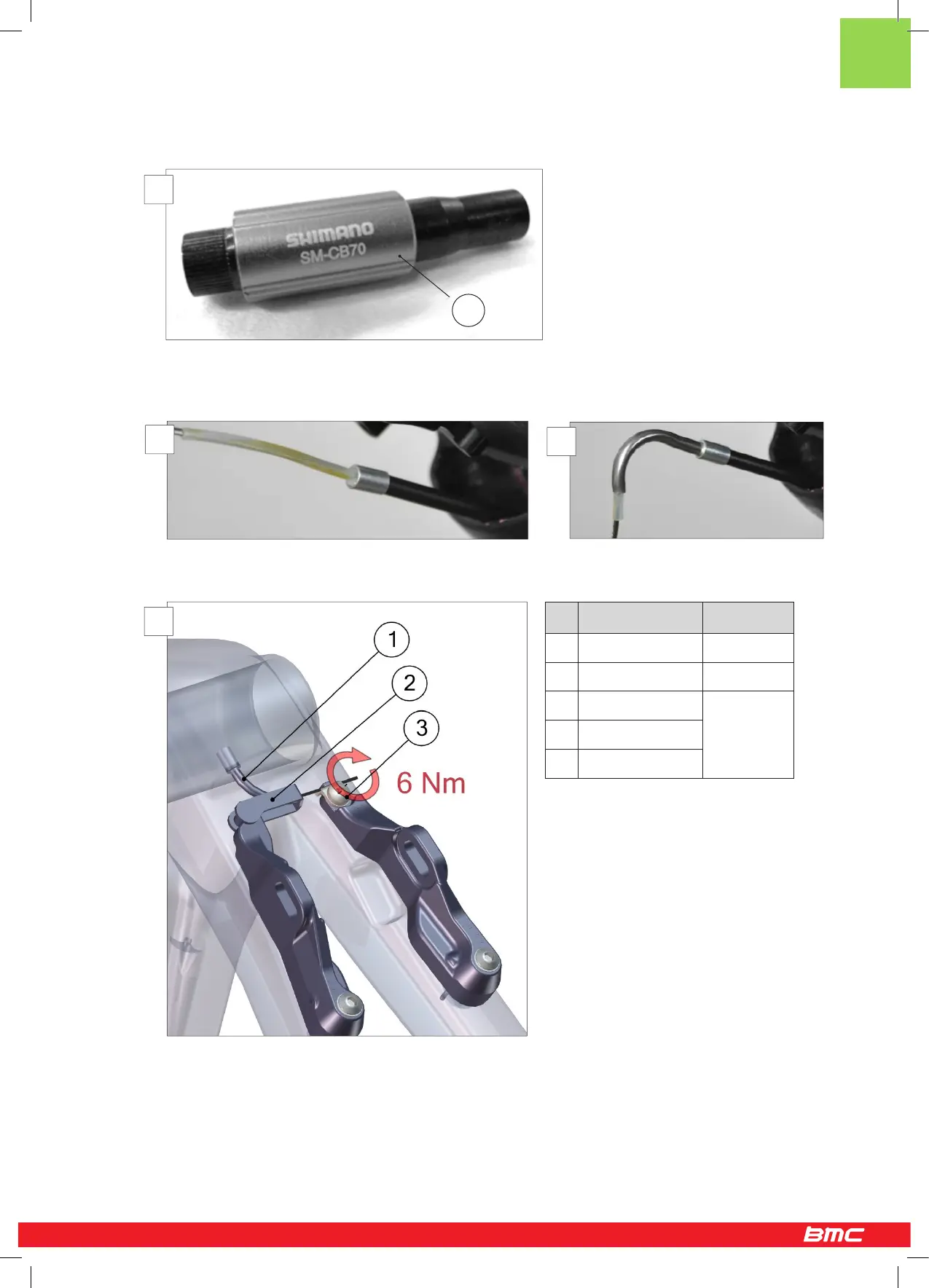

8. Cut the brake cable housing 100mm from the cable guide and install the cable adjusters (N°8).
Please refer to the official Shimano installation instructions.
9. Run the rear brake cable through the brake lever and the housing.
10. Slide the liner of the pipe over the brake cable (7). Then slide the pipe (N°1) over the brake cable and the liner (8).
11. Install the pipe holder (N°2) and clamp the brake cable on the left brake arm with the T25 anchor bolt (N°3). Tighten to 6 Nm.
12. Install the brake pads:
Description Part N°
Rear brake set 212496
1 Pipe
2 Pipe holder
3 Anchor bolt 212499
8 Shimano adjusters
9
7
8
8
5
13 / 14
