DI2 Cable routing
Note: For all matters regarding Di2 cable routing, please refer to the official Shimano instructions. This chapter only offers
guidelines in order to properly place the Shimano wires into your TMR01 frame.

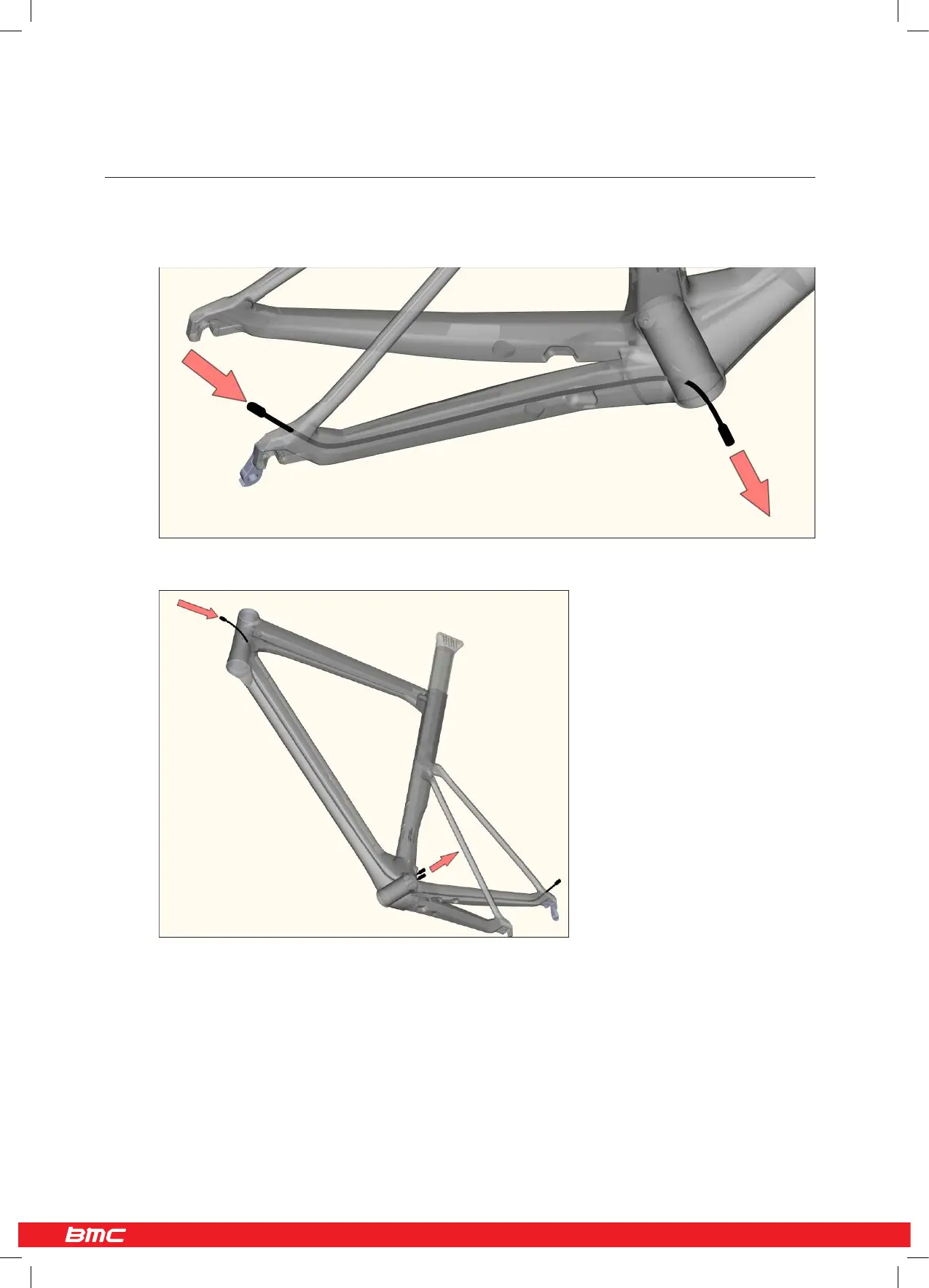

1. Use a shifting cable to guide the Di2 rear derailleur wire through the chain stays.
Enter the frame at the drop out and exit at the bottom bracket.
2. Use a shifting cable to guide the Di2 main wire through the down tube. Enter at the cable guide and exit at the bottom bracket.
