Cable routing for mechanical shifting

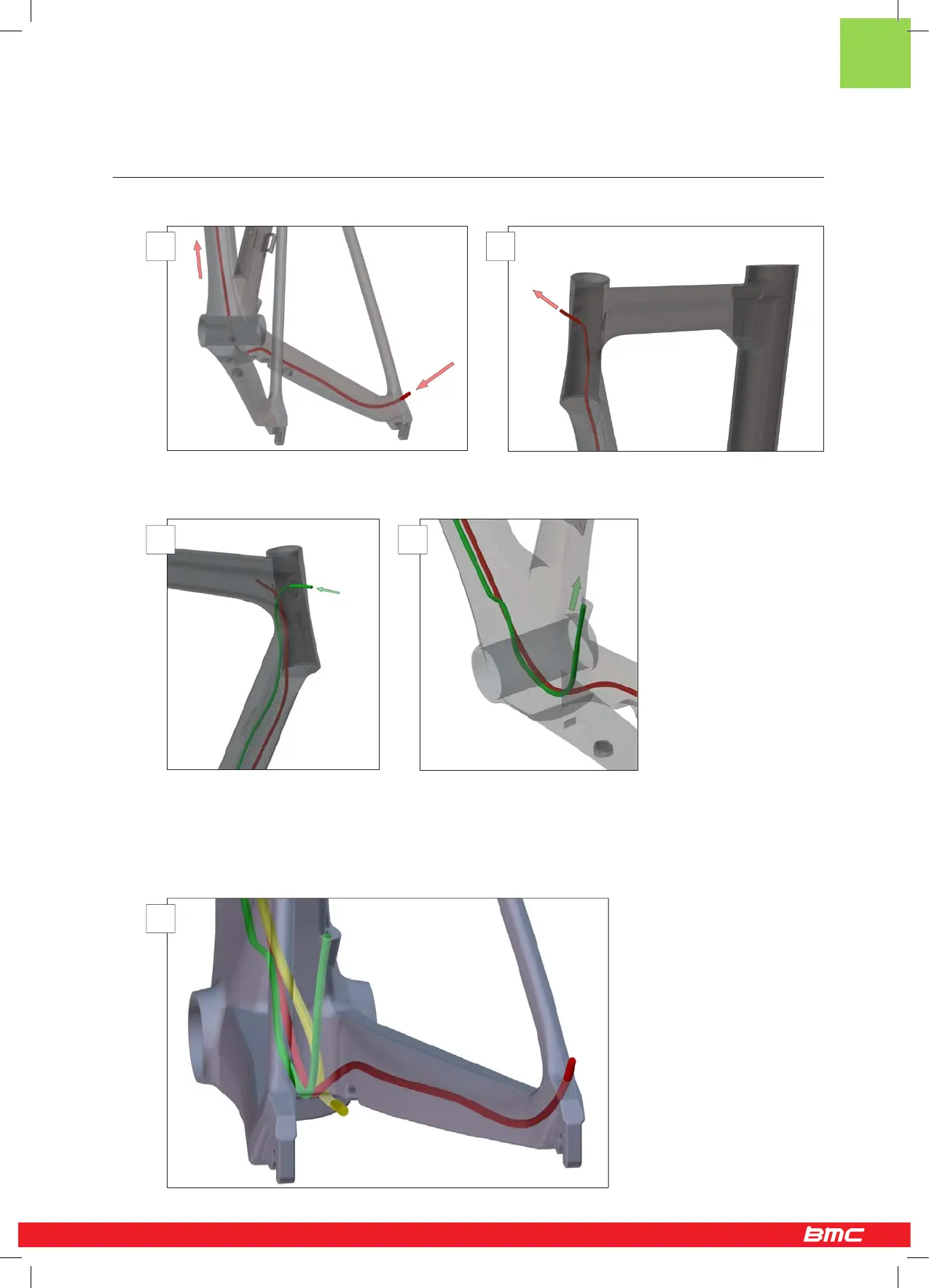

1. Insert the rear derailleur cable housing from the right dropout, and then run it into the frame (1).
Exit at the head tube opening on the left side (2).
2. Insert the front derailleur cable housing from the right side head tube opening (3).
Run it through the down tube and exit at the bottom bracket on the left side.
3. Install the nosed end cap on the cable housing, then reenter the frame and guide the end cap into the FD cable stopper (4).
4. Insert the rear brake cable housing from the head tube opening, run it through the down tube and exit at the opening behind the
bottom bracket (5).
Note that the rear brake cable housing should be placed on the right side of the shifting cables.
