Rear brake installation

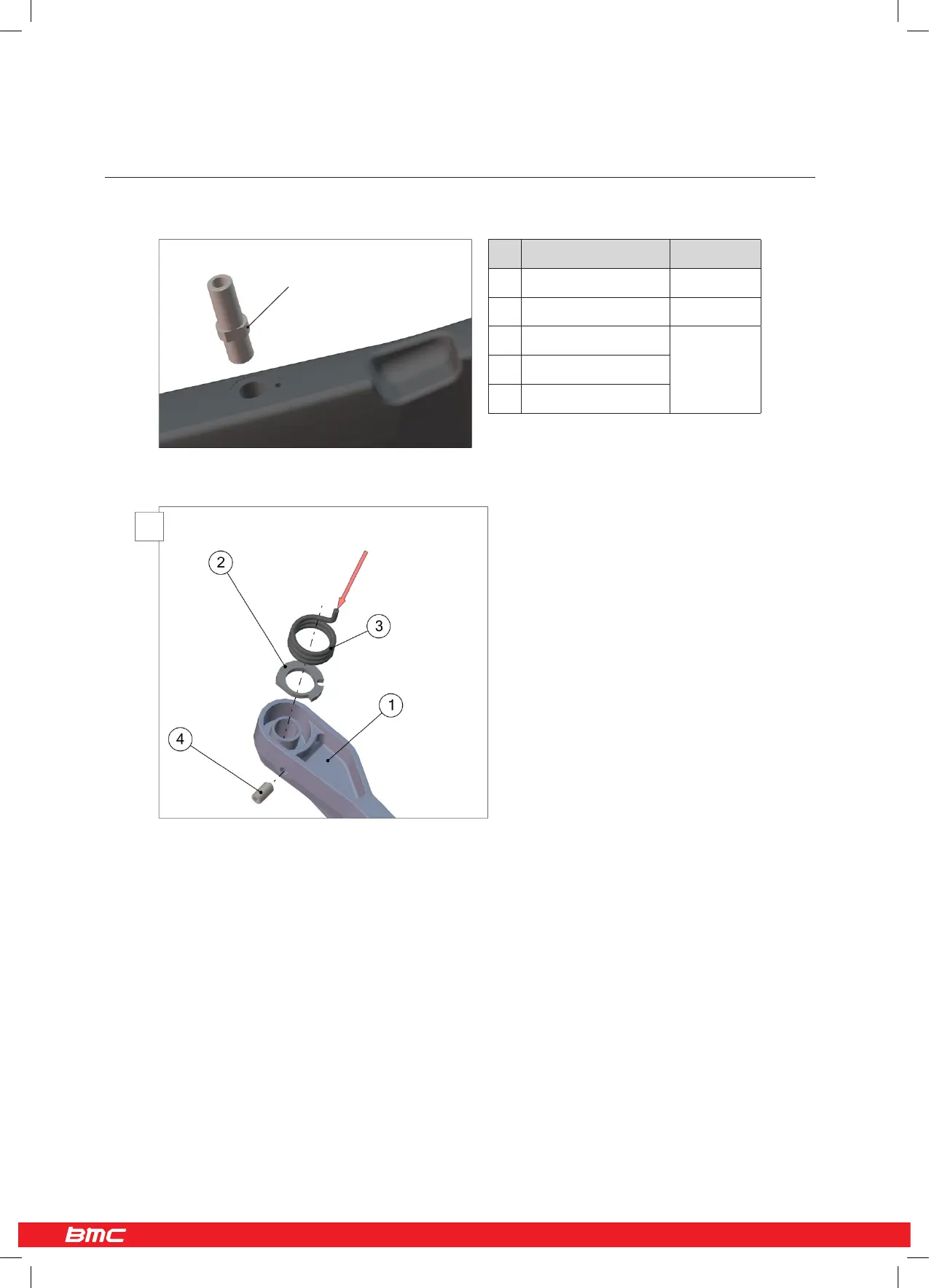

1. The rear brake cable should already be installed once you start to build the rear brake, if not, refer to the first chapter.
2. Apply Loctite to the brake pivot thread and bolt it into the frame.
3. Place the adjuster plate N°2 and screw in the M4 adjustment bolt N°4 (2).
4. Apply grease to the spring and place it in the brake arm. The silver spring goes in the right side brake arm.
The longer end of the spring faces towards the frame (2).
5. Install the brake arm on the frame (3). Tighten the M5 bolts to 4.5Nm (4).
6. Repeat steps 2 – 5 for the remaining brake arm. Note to use the dark spring for the left side brake arm.
Description Part N°
Rear brake set 212496
1 Brake arm
2 Adjuster plate
3 Spring 212499
4 Adjuster bolt
Loctite
The longer end of the
spring faces towards
the frame.
