DIAGNOSTICS
To clear these faults, remove suspected
short circuit and toggle the suspected
output to clear fault indicator
1. For lights, tank heater, water heater,
water pump, electric and gas heaters,
if a short occurs on these outputs, a
red fault indicator will appear.
2. The gas water heater has its own
warning output and if it signals a fault,
a warning will appear on the gas water
heater button
3. If a fault occurs on a Climate output
(e.g. the compressor output), a fault
icon will appear in the zone. To clear
the Climate fault, diagnose that
Climate zone, remove short, turn the
Climate off and then turn back on to
reset fault display.
ABOUT JAYCOMMAND
This page provides information about the
JAYCOMMAND System.

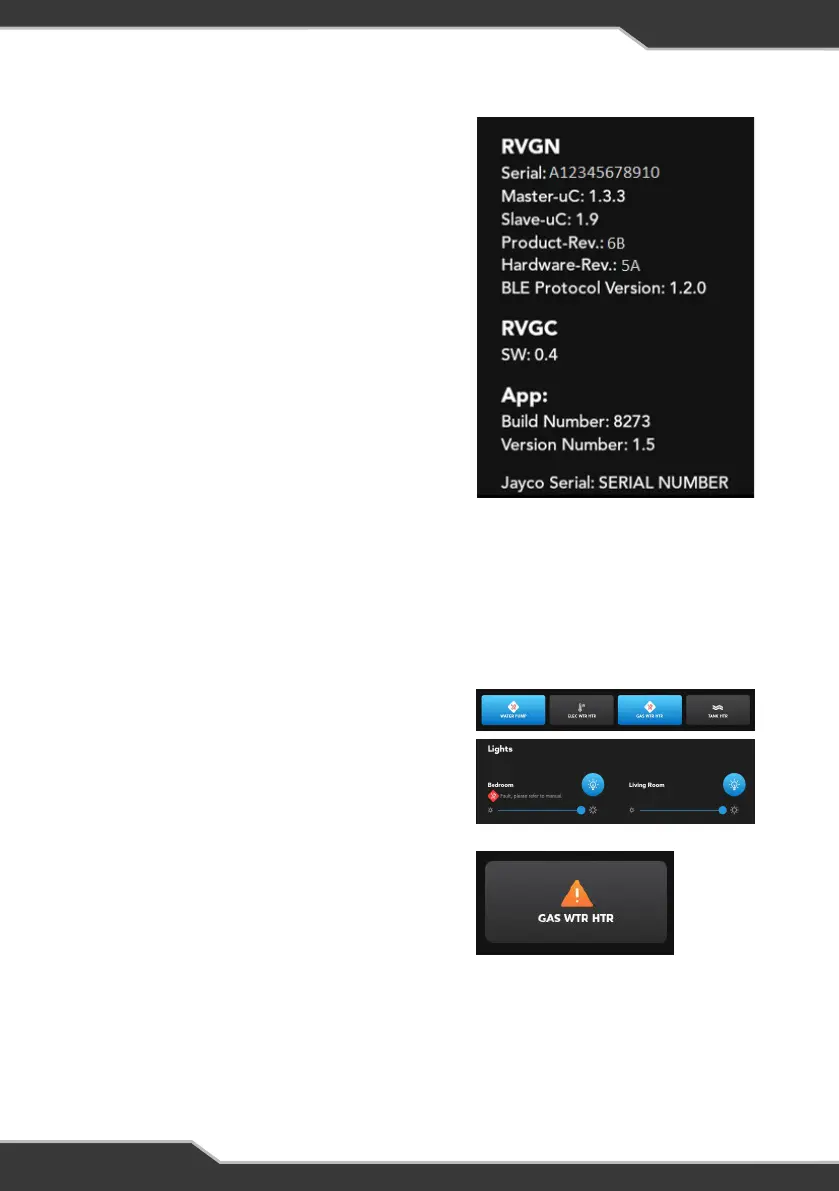

FIGURE 36:
Device Information Screen
FIGURE 37: Clearing Faults
30
