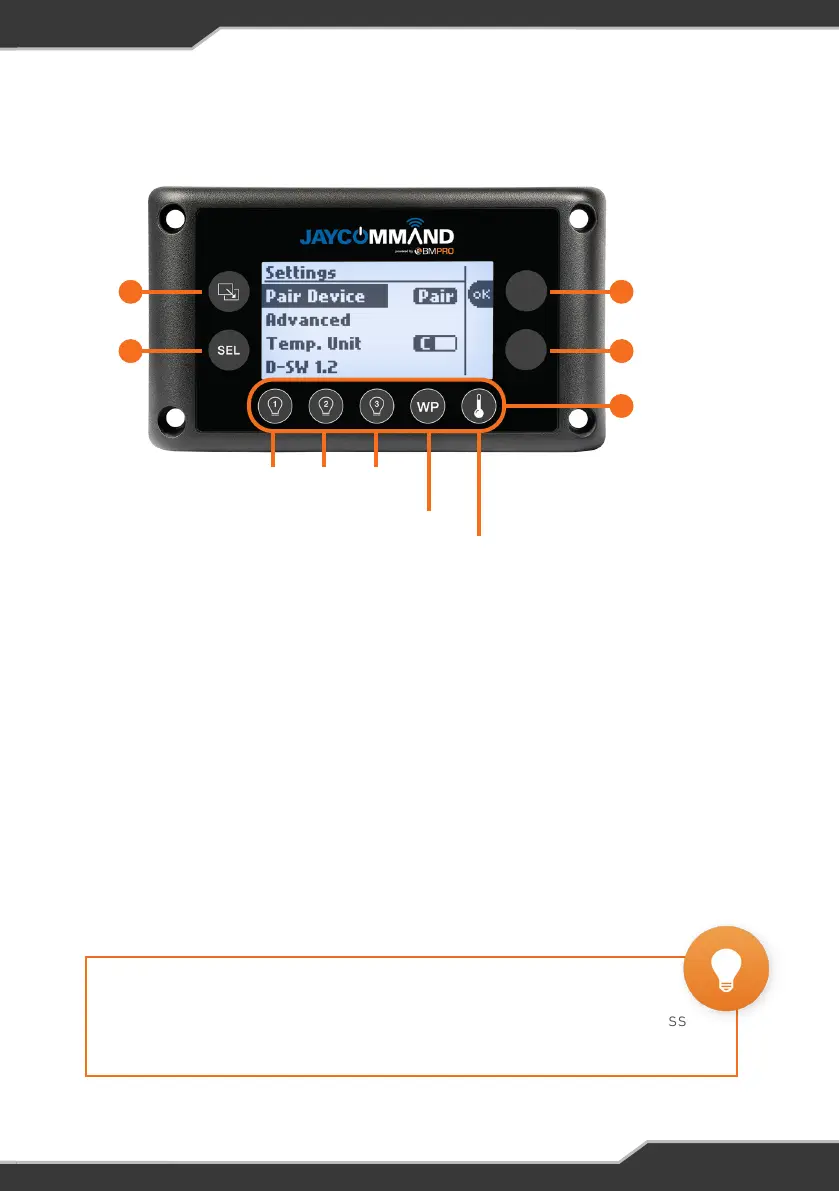

FIGURE 3: The DISPLAY
DESCRIPTION OF PARTS
1. Page Navigation Button
Move between function screens, eg. From Tanks to Water screen
2. Menu Navigation Button
This button allows navigation between items within a page,
e.g. In the Water page move from Pump to Elec Heater
3-4. Action Buttons
The function for each of these buttons change depending on the selected
menu item. These functions will be displayed on the screen, eg. OK, EXT,
RET, On, Off
5. Redundancy Buttons
Turn lights and water pump on or off. Climate button takes user to main
climate page.
1 3
2 4
5
ALL INTERIOR LIGHTS
ALL EXTERIOR LIGHTS
INTERIOR & EXTERIOR
WATER PUMP
MAIN A/C
Adjusting the Lights
QUICK press toggles between Off and the previous stored brightness
LONG press sets the light brightness to 100%
