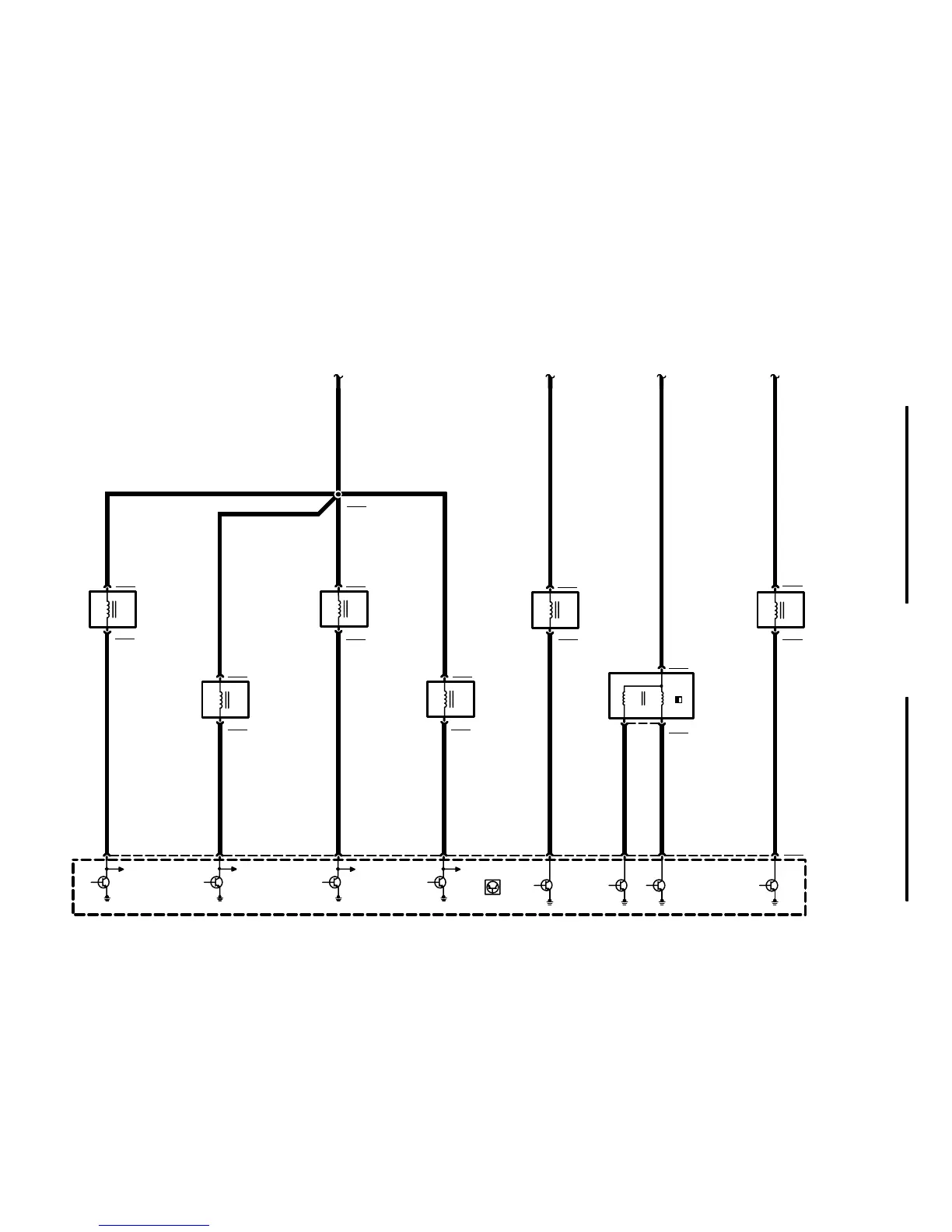

BMW E36 - Page 108

.5 BR/VI
Y6120
EVAPORATIVE
EMISSION VALVE
.5 RT/WS
1 X6120
2 X6120
04/99
1210.20Ć
1998
01
2
A6000
ENGINE CONTROL
MODULE (DME)
Y6103
CYL. 3 FUEL
INJECTION VALVE
–
+
–
+
Y6101
CYL. 1 FUEL
INJECTION VALVE
–
+
Y6102
CYL. 2 FUEL
INJECTION VALVE
–
+
Y6104
CYL. 4 FUEL
INJECTION VALVE
+
1
615832 31 X6000
1 X6101
.5 RT/WS
1 X6104
1 X6103
.5 RT/WS
1 X6102
.5 RT/WS.5 RT/WS
2 X6130
2
X6102
2 X6103
2
X6104
2 X6101
X6130
Y6130
IDLE SPEED
CONTROL VALVE
X6820
.5 RT/WS
–
Y6131
INTAKE AIR RES-
ONANCE CHANGE-
OVER VALVE
–
+
2
X6131
1
X6131
.5 RT/WS
3 4 29
3
2.5 RT/WS
.5 BR.5 BR/BL
.5 BR/GE
.5 BR/WS
.5 BR/GN .5 BR/BL
.5 BR/
GN
31 31 31 31
31 31 31 31
