BMW E36 - Page 333

D100
DATA LINK
CONNECTOR
G6430
B+ JUMP START
JUNCTION POINT
X6002
X6150
Y6133
AIR PUMP
BMWBMWBMWBMW

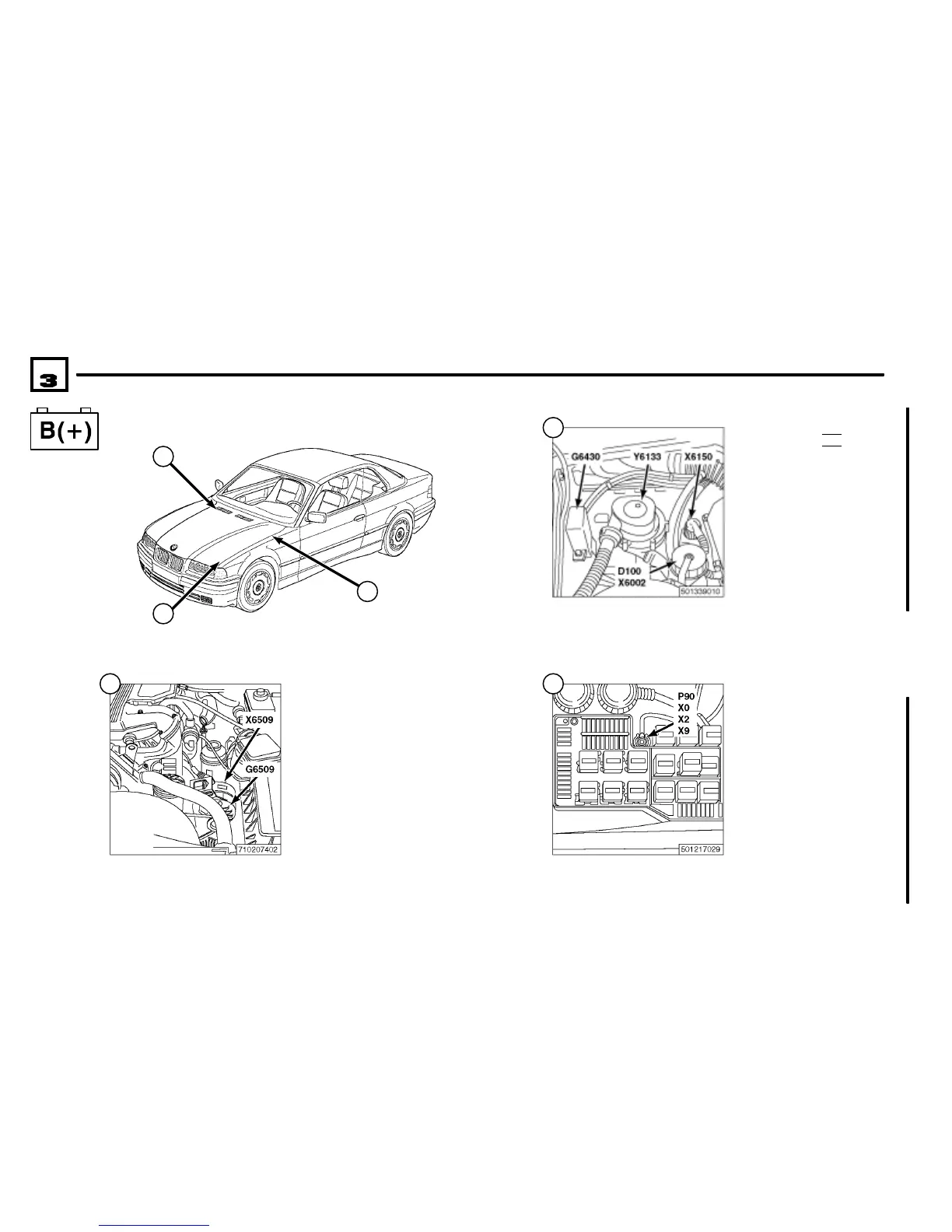

COMPONENT LOCATION VIEWS
04/99
7100.0Ć
1998
05
2
3
2
P90
FRONT POWER
DISTRIBUTION BOX
G6509
GENERATOR
X6509
CABLE SOCKET
ALTERNATOR B+
X0
B+ JUNCTION
POINT
X2
BATTERY B+
START POINT
X9
B+ JUNCTION
POINT
3
1
1
